83

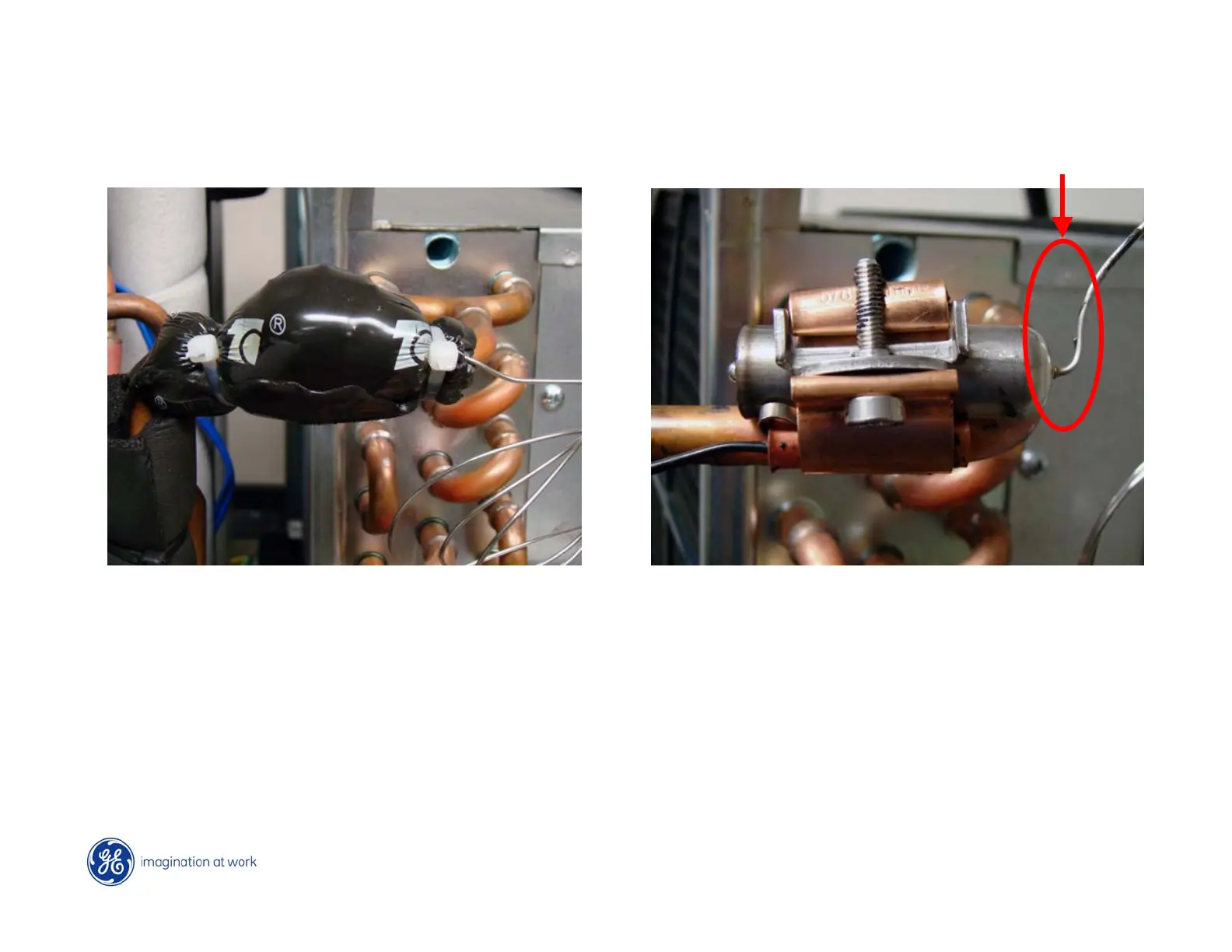

Thermal Seal
Mastic wrap
Mastic removed
The bulb is clamped to the outl
et of the evaporator, above the
T3b sensor. The bulb and sensor are securely wrapped with
mastic to provide an accurate tr
ansfer of tube temperature.
Capillary should be directed upwards
82
84
Table of Contents
Personal Protection Equipment
4
Exploded View
8
Right Side View
10
Rear View
11
Left Side View
12
Model/Serial Location
13
Warranty
15
Installation Location
18
Junction Box
20
Drain Hole Locations
23
Control Display
25
Modes of Operation
26
Cover Installation
29
Sensor Chart
32
Initial Startup
43
Temperature Chart
47
Hybrid Mode
51
High Demand Mode
53
Control Boards
55
Current Sensor
61
Evaporator Fans
62
Front Cover
64
Drain Valve
65
Heating Elements
68
Discharge Pressure Switch
74
Recovering Refrigerant
77
Refrigerant Charging
78
Thermal Expansion Valve (TXV)
79
Tube Position
85
Anode Rod
87
Diagnostic Mode
92
Component Status
95
Access Code
97
Evaporator Fan
107
Fault Count
109
Clearing Faults
112
System Failure
121
