GE GEH50DEED - Hybrid Mode

– 14 –

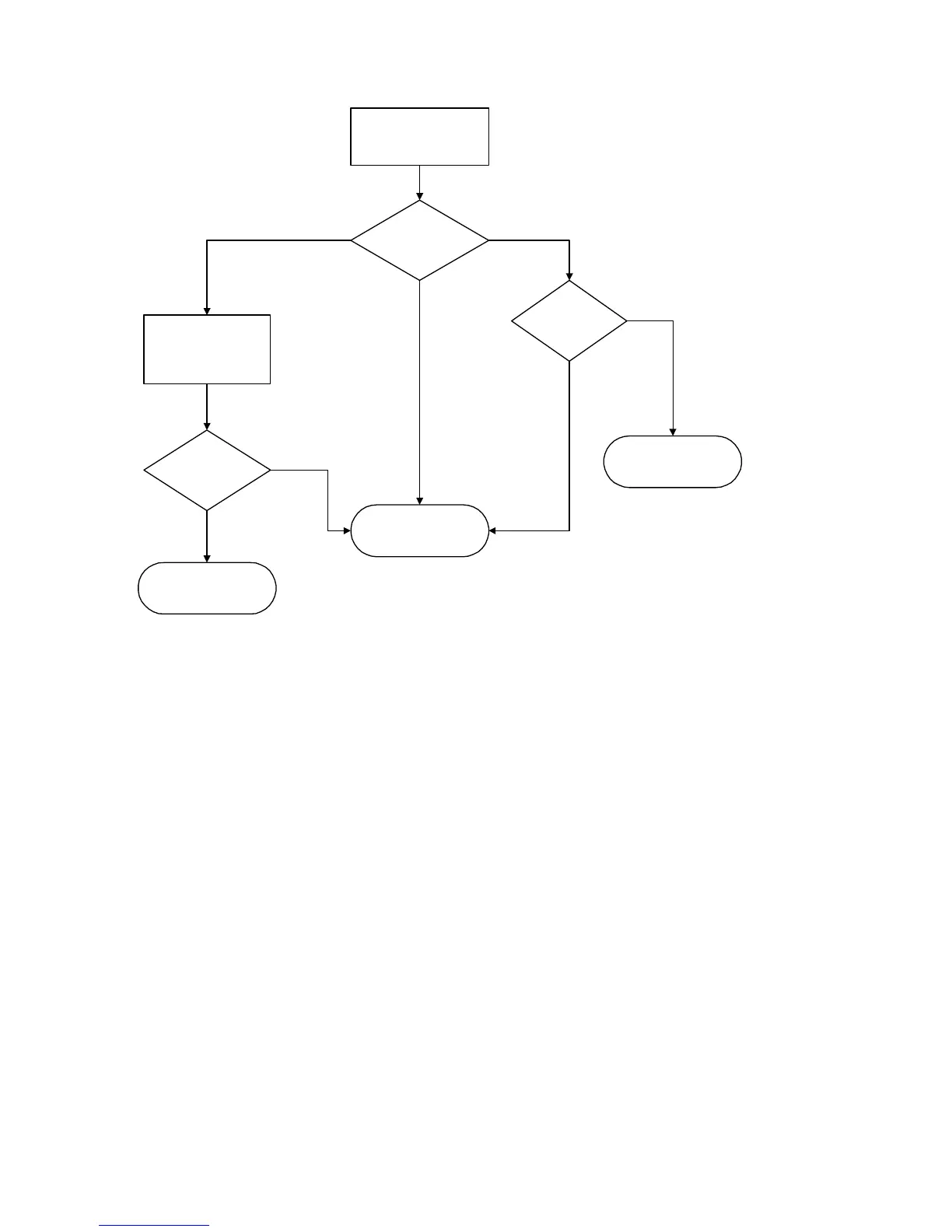

Control checks T2
(tank sensor)
T2
less than set
temperature
Upper Element on until
T2 reaches set
temperature minus 7F
(T2 = ST-7F)
Run sealed system
until T2 reaches set
temperature
T2 is less than set
temperature minus 30F
(T2< ST-30F)
T2 is less than set
temperature minus 5F
(T2< ST-5F)
Has there
been a flow
event?
Small flow of less
than 10 gallons and
T2 < ST-1F
Lower Element on
until T2 reaches set
temperature
Large flow of
20-30 gallons
Large flow
event active
Lower Element on
until T2 reaches set
temperature
Yes
No
Hybrid Mode
Water Water temperature 5°F less than set point? Use sealed system.
Water temperature 1°F less than set point. Small amount of water has been used (less than 10 gallons)? Use
sealed system.
Large amount of water has been used (10 to 20 gallons)? Use lower element.
Water temperature 30°F less than set point? Use upper element until 7°F less than set point, then: lower
element if large water ow during upper element on time. Sealed system is no water ow during upper
element on time.
(Continued Next Page)
