Components – UI/IMC Board(1)
The UI/IMC Board has 3 functions:
1) Allows for cycle and cycle modifier selection.
2) Provides information to the user.
3) Contains software instructions for general machine operation.
38

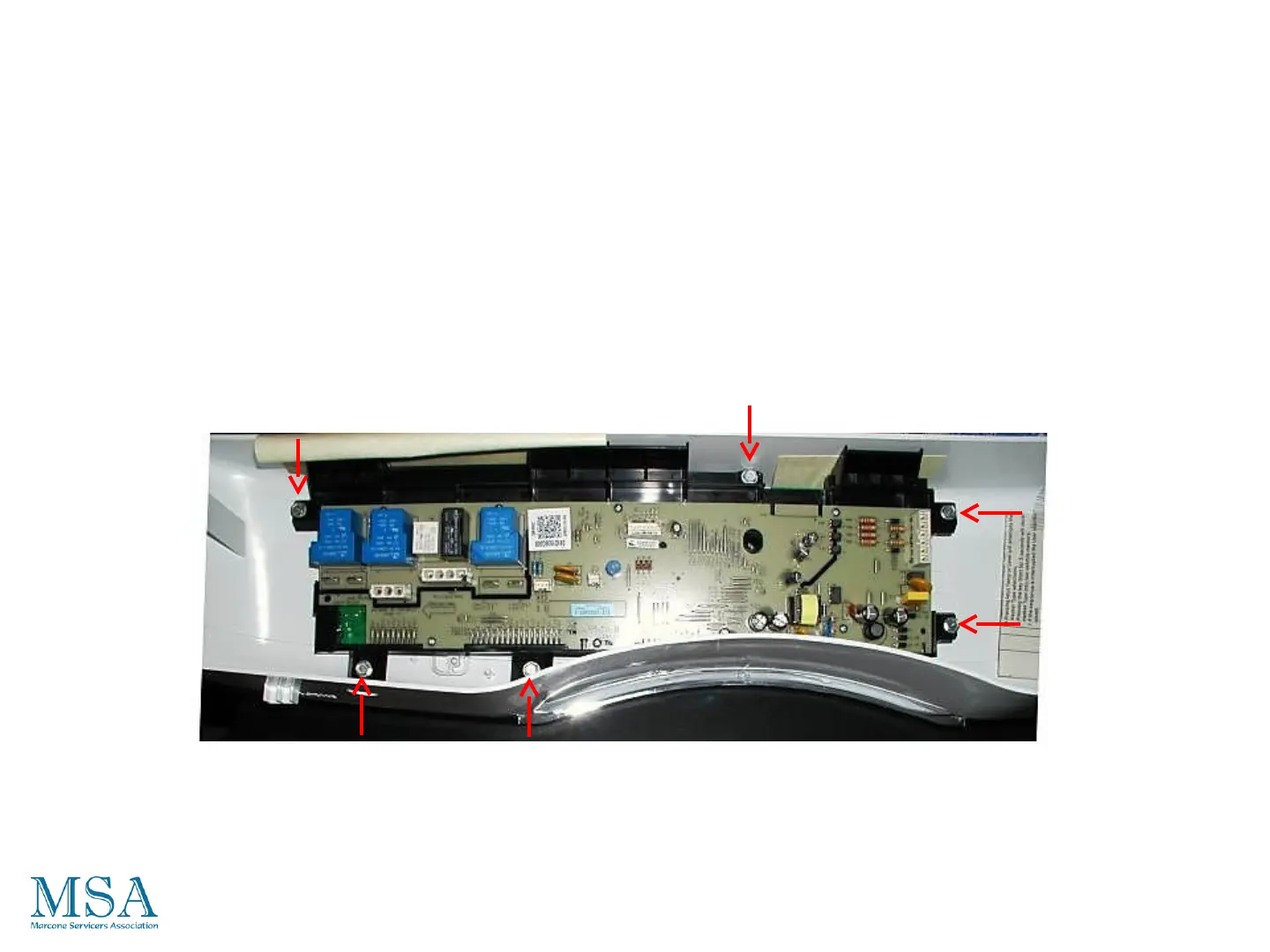

Remove six 5/16” screws from control to separate it from the control
panel housing.
