Disassembly – Blower Wheel
32

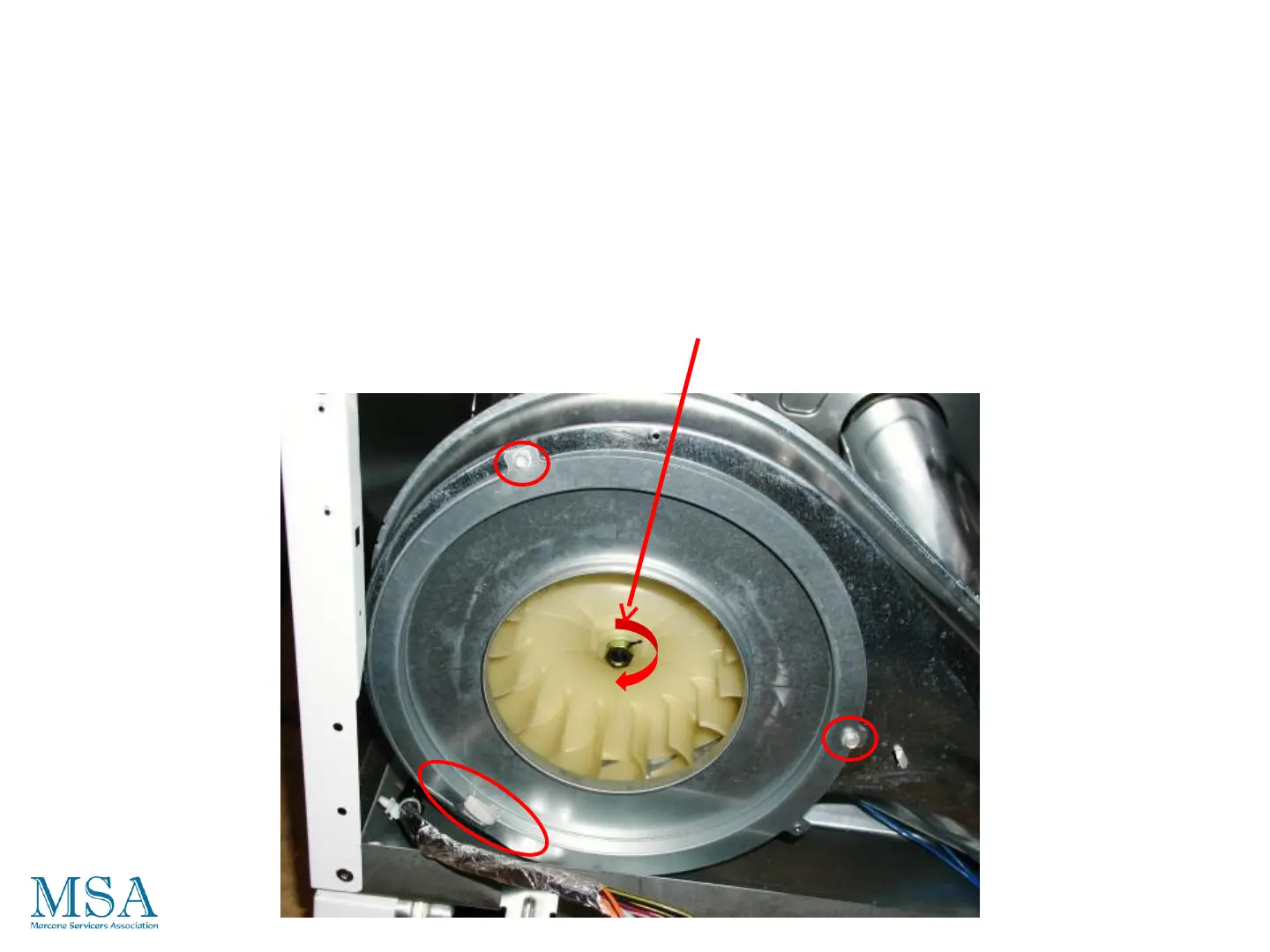

Removal: After removing trap duct assembly:
1. Remove two ¼” hex head screws and lift blower wheel cover from
slot at bottom of housing.
2. While holding motor shaft with channel locks, remove 9/16 nut holding
blower wheel to shaft. Nut is reverse threaded.
