Disassembly – Drum Support & Drum(1)
33

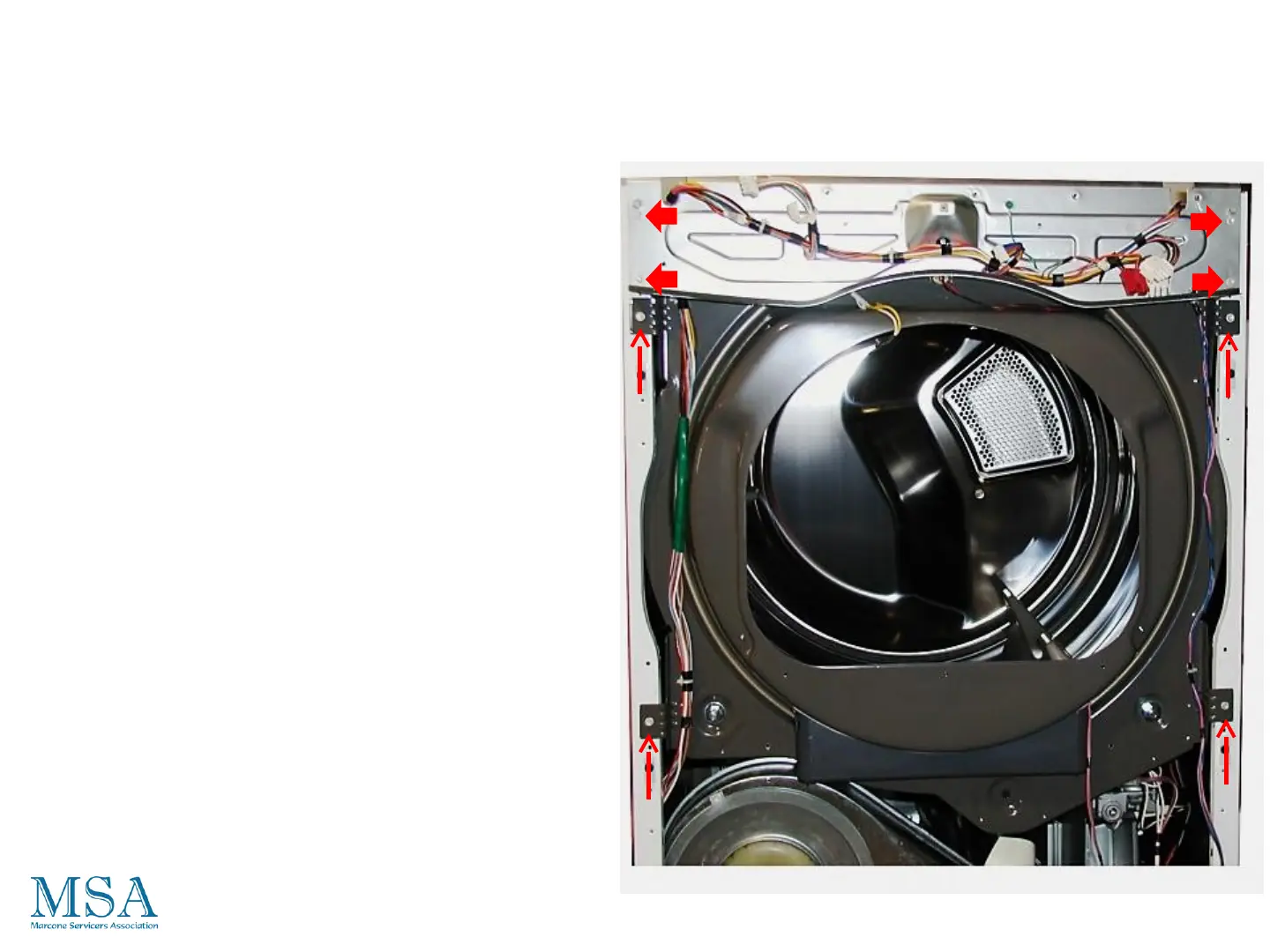

Removal:
1. After removing trap duct
assembly, remove 4- ¼” hex
heads securing control
assembly bracket.
2. Flip back control bracket so a
to clear drum support.
3. Remove 4 additional ¼” hex
heads (one from each arm of
support).
4. Support will stay in place with
screws removed because of a
tab from each arm into side
panel.
To Next Page
