GE GFDS250EF - Page 44

Components - Belt Switch

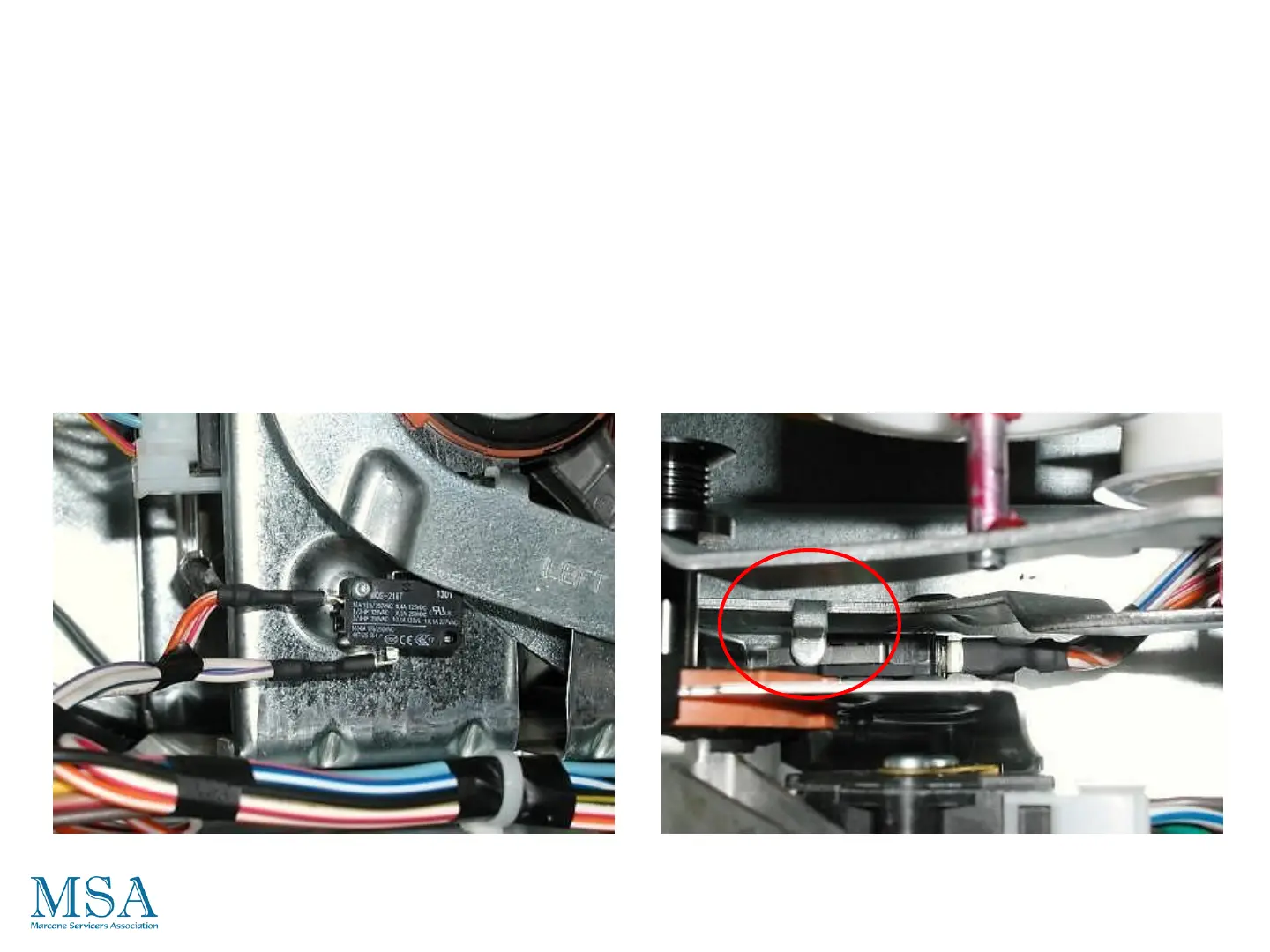

1. Belt switch is mounted to the back side of the rear motor mounting
plate.
2. With belt intact, switch is closed providing a path for Neutral to the
motor circuit.
3. If belt breaks, idler arm falls and a “foot” on the arm depresses switch
arm opening the Neutral circuit to the motor.
44
(Rear View)
