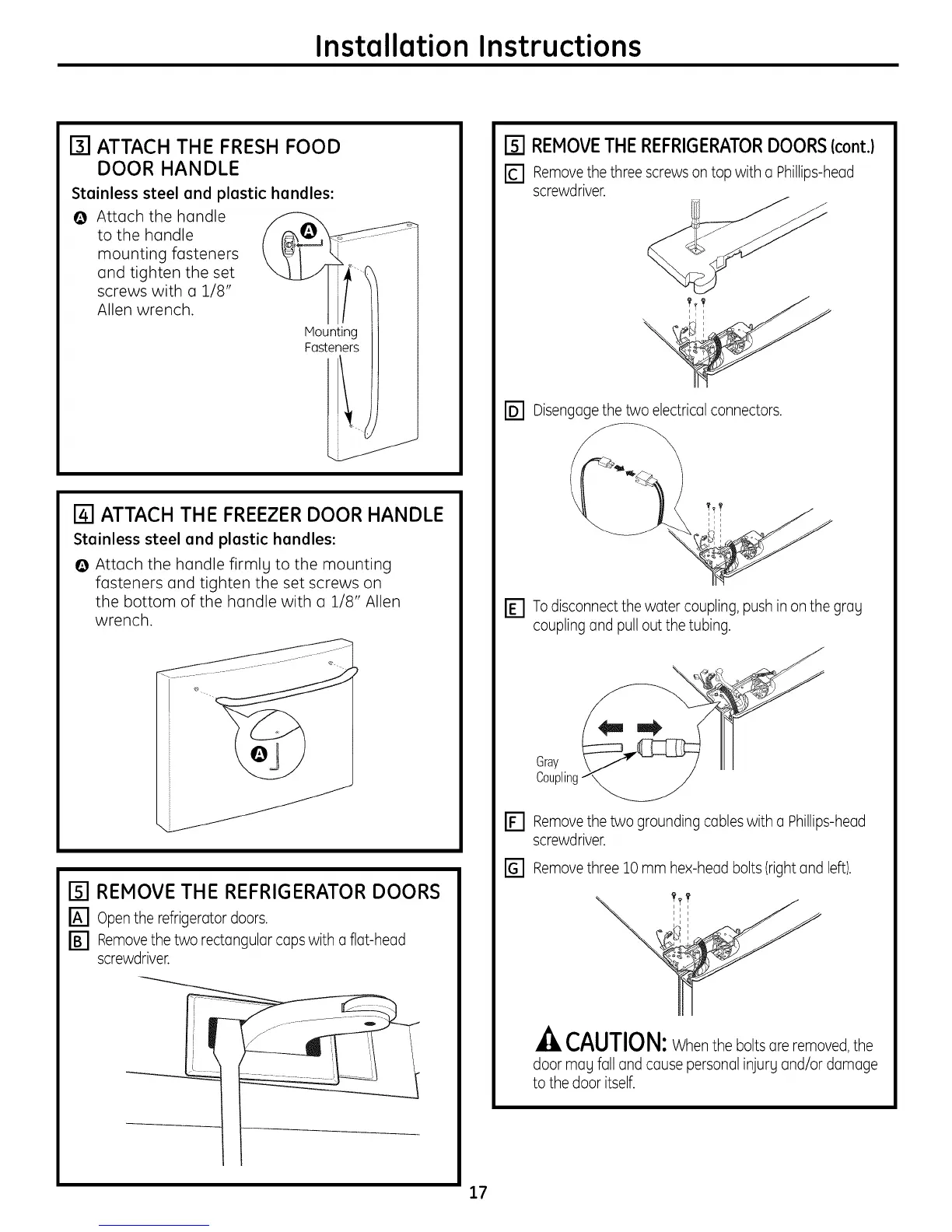

Installation Instructions
1-31ATTACH THE FRESH FOOD
DOOR HANDLE
Stainless steel and plastic handles:
Attach the handle
to the handle
mounting fasteners
and tighten the set
screws with a 1/8"
Allen wrench.
Q
[] ATTACH THE FREEZERDOOR HANDLE
Stainless steel and plastic handles:
@ Attach the handle firmly to the mounting
fasteners and tighten the set screws on
the bottom of the handle with a 1/8" Allen
wrench.
[] REMOVE THE REFRIGERATOR DOORS
_'1 Openthe refrigerator doors.
[] Removethe two rectangular caps with a flat-head
screwdriver.
REMOVETHE REFRIGERATORDOORS(cont.)
r_ Removethe three screws on top with a Phillips-head
screwdriver.
r_ Disengagethe two electricalconnectors.
r_ To disconnect the water coupling, push in on the graU
coupling and pull out the tubing.
Gray. \_.--'_" -- -- / Ill
Coupling_'__
[] Removethe two grounding cableswith a Phillips-head
screwdriver.
r_ Removethree 10 mm hex-head bolts (right and left).
\
^,.L CAUTION:When the bolts are removed, the
door maUfall and cause personal injurUand/or damage
to the door itself.
