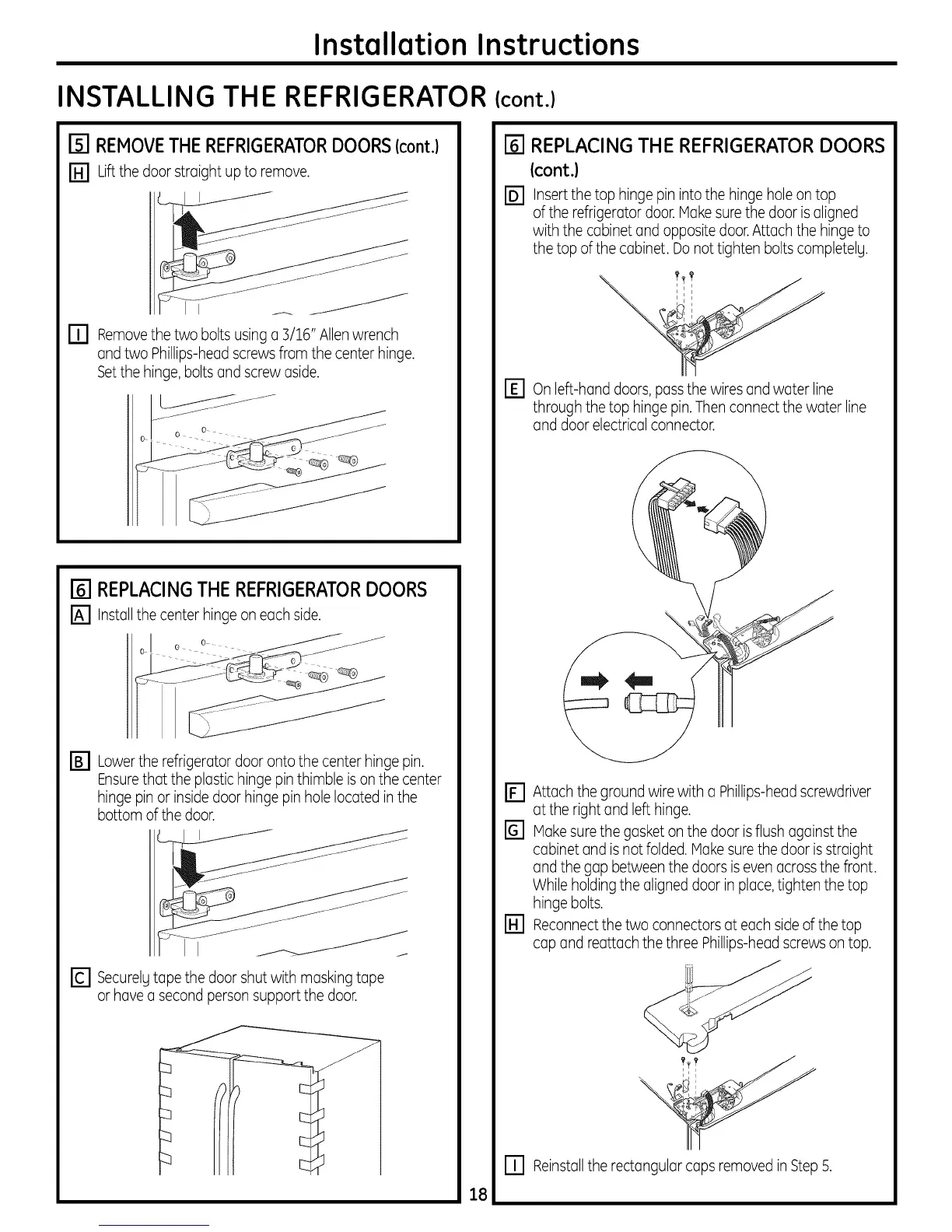

Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
rsl REMOVETHEREFRIGERATORDOORS(cont.)
FH1 Liftthe door straight up to remove.
I jj_j
ITI Removethe two bolts using a 3/16" Allenwrench
and two Phillips-headscrews from the center hinge.
Setthe hinge, bolts and screwaside.
[] REPLACINGTHE REFRIGERATORDOORS
_1 Installthe center hinge on each side.
[] Lowerthe refrigerator door onto the center hinge pin.
Ensurethat the plastichinge pinthimble is on the center
hinge pin or insidedoor hinge pin hole located in the
bottom of the door.
II Eli jz-
tj- j
J
?
[] Securelgtape the door shut with maskingtape
or havea second personsupport the door.
18
REPLACING THE REFRIGERATOR DOORS
(cont.}
r_ Insertthe top hinge pin into the hinge hole on top
of the refrigerator door.Hake surethe door isaligned
with the cabinet and opposite door.Attach the hinge to
the top of the cabinet. Donot tighten bolts completelg.
I
rE1 On left-hand doors, passthe wires and water line
through the top hinge pin.Then connect the water line
and door electrical connector.
r_ Attach the ground wire with a Phillips-headscrewdriver
at the right and left hinge.
[] Hake sure the gasket on the door isflush against the
cabinet and is not folded. Hake sure the door is straight
and the gap between the doors is even acrossthe front.
While holdingthe aligned door in place,tighten the top
hinge bolts.
FH1 Reconnectthe two connectors at each sideof the top
cap and reattach the three Phillips-headscrewson top.
ITI Reinstallthe rectangular caps removed in Step 5.
