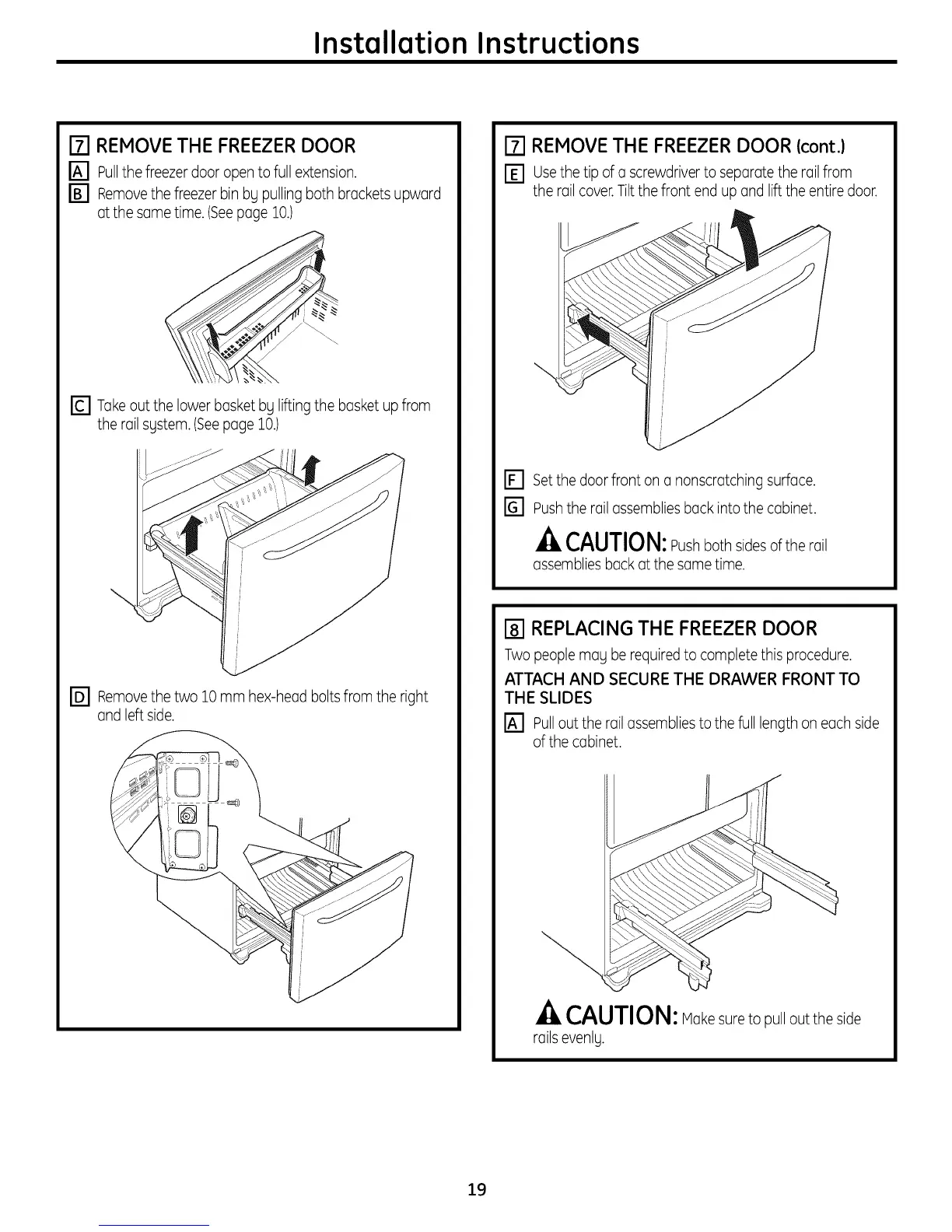

Installation Instructions
[] REMOVE THE FREEZER DOOR
_'1 Pullthe freezer door open to full extension.
[] Removethe freezerbin by pulling both brackets upward
at the same time.(Seepage 10.)
[] Takeout the lower basket by liftingthe basket up from
the railsystem. (Seepage 10.)
rD-] Removethe two 10 mm hex-head boltsfrom the right
and left side.
REMOVE THE FREEZERDOOR (cont.)
Usethe tip of a screwdriver to separate the railfrom
the rail cover.Tiltthe front end up and lift the entire door.
D Set the door front on a nonscratching surface.
r_ Pushthe rail assembliesback into the cabinet.
-& CAUTION:Pushboth sidesof the rail
assemblies back at the same time.
[] REPLACING THE FREEZER DOOR
Two people may be requiredto complete this procedure.
ATTACH AND SECURE THE DRAWER FRONT TO
THE SLIDES
_] Pullout the rail assembliesto the full length on each side
of the cabinet.
CAUTION: Makesureto pull out the side
railsevenly.
19
