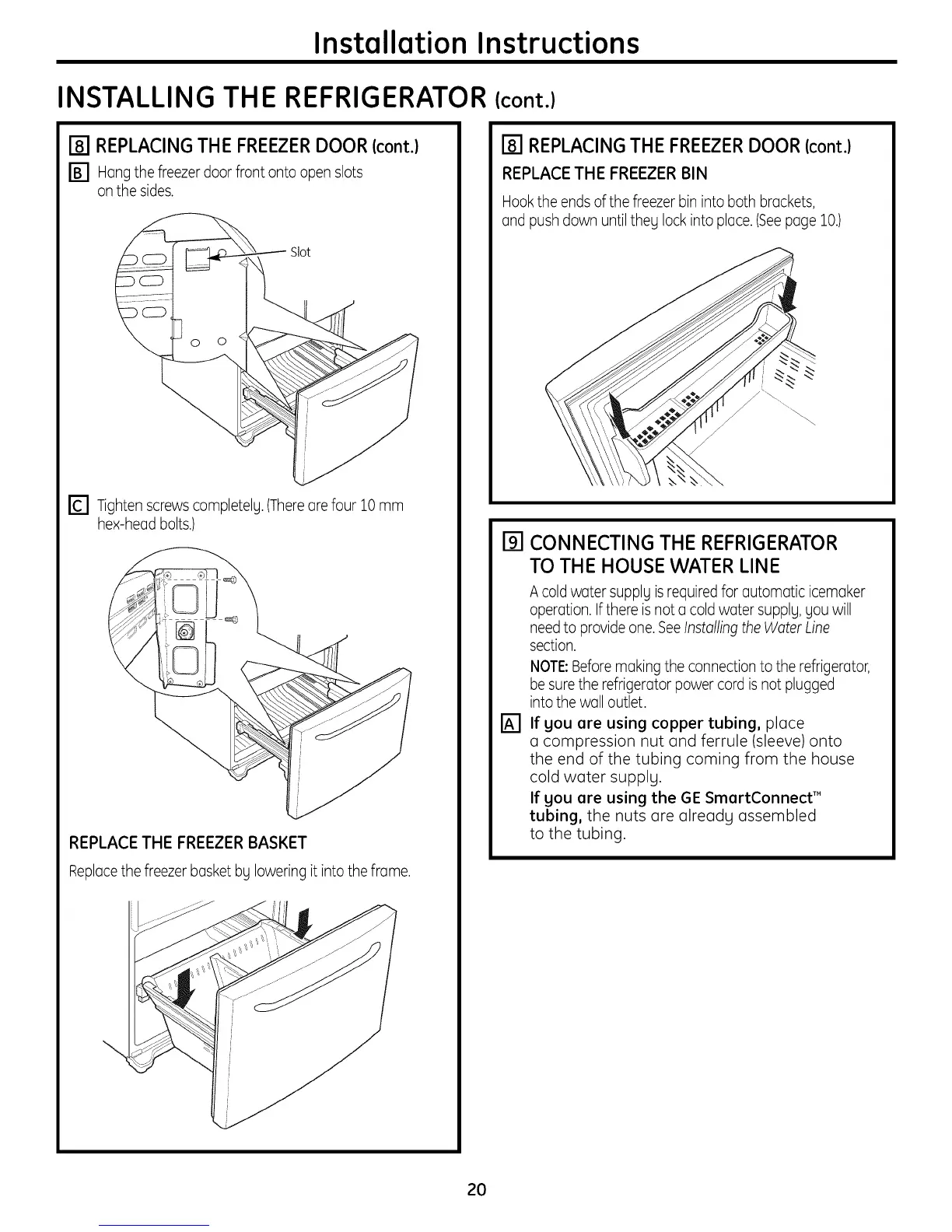

Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
r81 REPLACINGTHE FREEZERDOOR (cont.)
r_ Hang the freezer door front onto open slots
on the sides.
Slot
rc1 Tighten screws completely.(Therearefour 10 mm
hex-headbolts.)
REPLACE THE FREEZER BASKET
Replacethe freezer basket by lowering it into the frame.
r81 REPLACINGTHE FREEZERDOOR (cont.)
REPLACE THE FREEZER BIN
Hookthe endsof the freezer bin into both brackets,
and pushdown untilthey lock into place. (Seepage 10.)
[] CONNECTING THE REFRIGERATOR
TO THE HOUSE WATER LINE
A cold water supply is required for automatic icemaker
operation. Ifthere isnot a cold water supply, you will
needto provide one. SeeInstalling the Water Line
section.
NOTE:Before making the connection to the refrigerator,
be sure the refrigerator power cord is not plugged
into the wall outlet.
If you are using copper tubing, place
a compression nut and ferrule (sleeve) onto
the end of the tubing coming from the house
cold water supply.
If gou are using the GE SmartConnect'"
tubing, the nuts are already assembled
to the tubing.
2O
