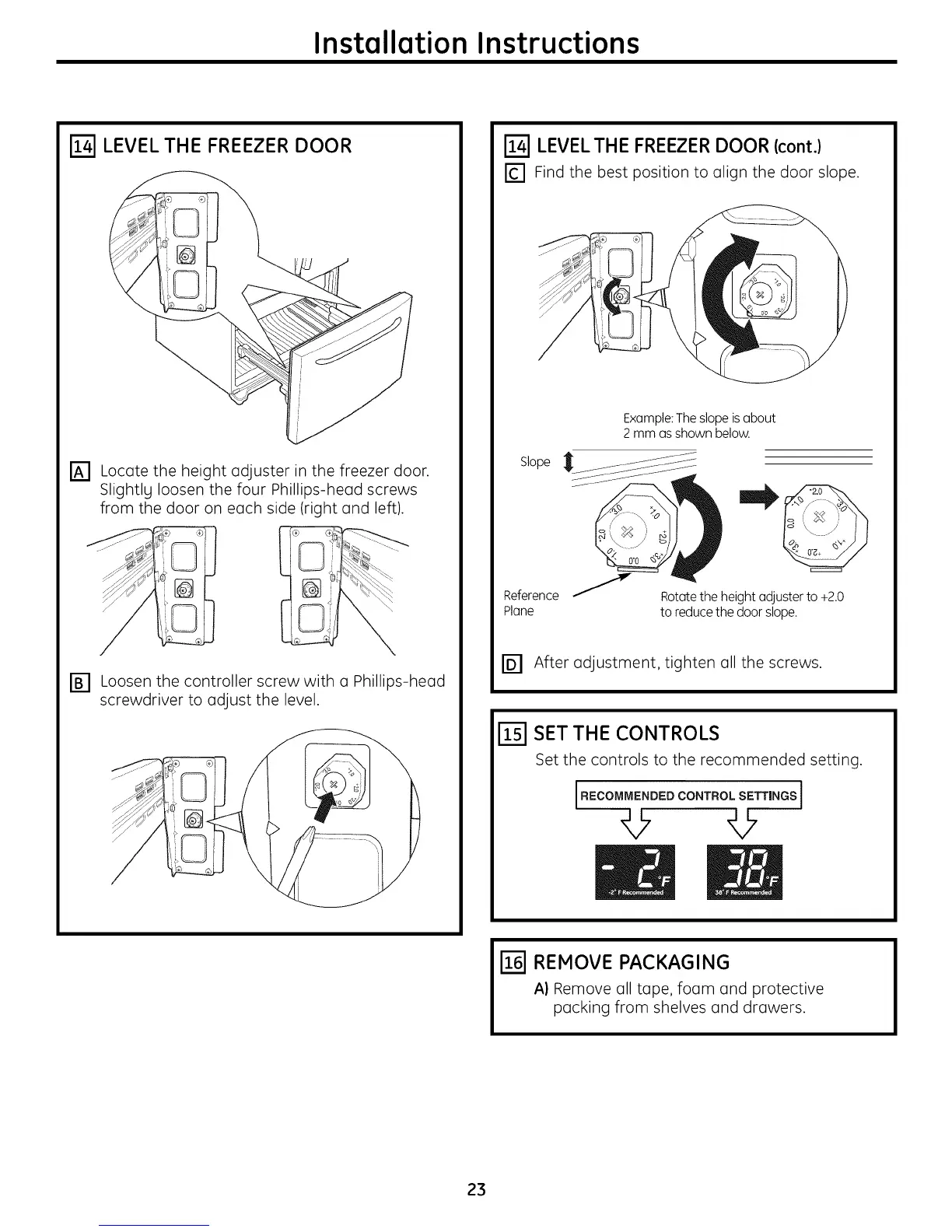

Installation Instructions
LEVEL THE FREEZER DOOR
[A1 Locate the height adjuster in the freezer door.
Slightly loosen the four Phillips-head screws
from the door on each side (right and left).
[] Loosen the controller screw with a Phillips-head
screwdriver to adjust the level.
[_] LEVELTHE FREEZERDOOR (cont.)
[] Find the best position to align the door slope.
Slope
Reference
Plane
Example:The slope isabout
2 mm as shown below.
eight__u_u" ster to_20
to reduce the door slope.
rD-] After adjustment, tighten all the screws.
[-_ SET THE CONTROLS
Set the controls to the recommended setting.
I RECOMMENDED CONTROL SETT,NGS]
© ©
/N
REMOVE PACKAGING
A) Remove all tape, foam and protective
packing from shelves and drawers.
23
