GE Homespring - Optional Surface Water Kit Installation

7

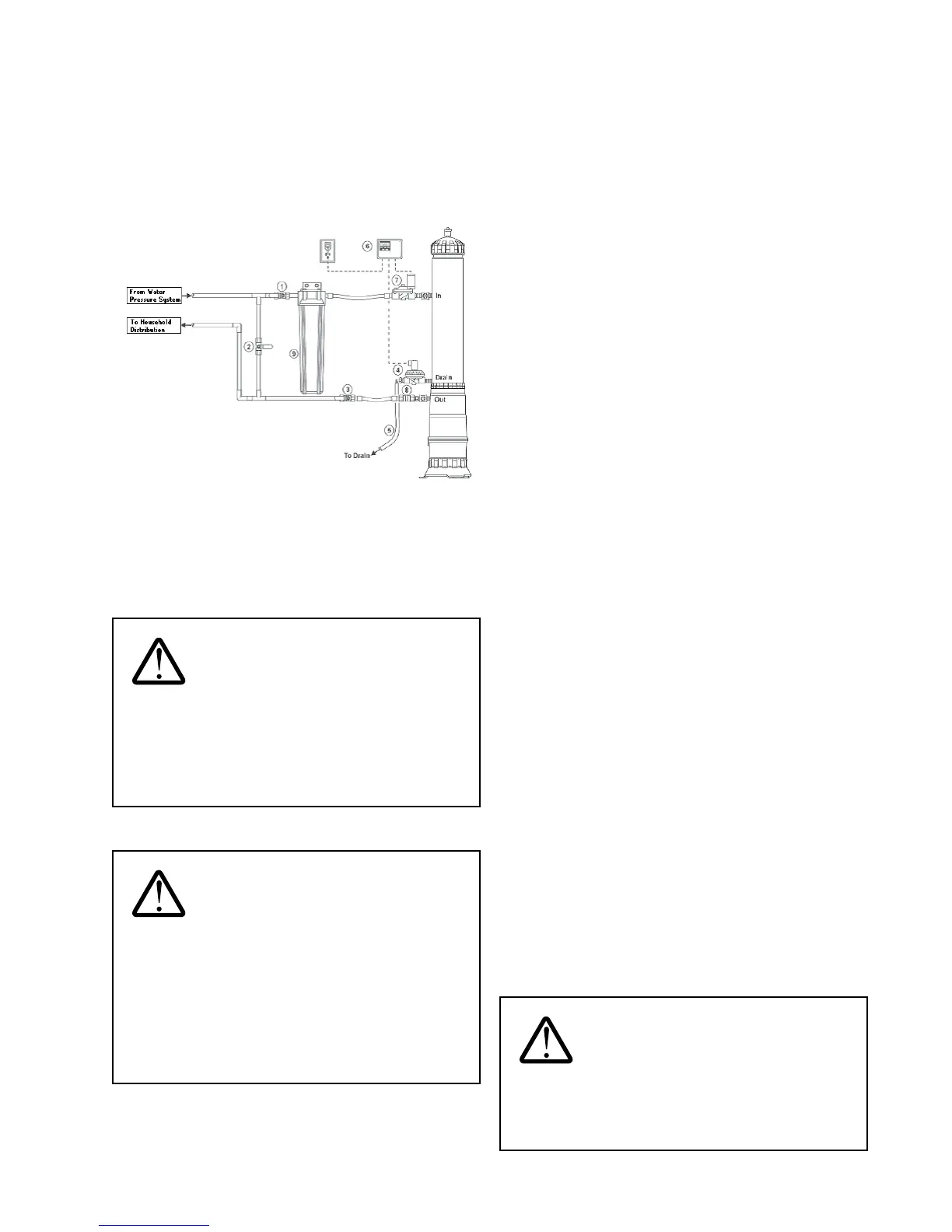

System Conguration for Optional Surface
Water Option Kit
Systems purchased with the surface water option kit are
installed at the same location and in the same manner as a
standard system, with the exception of additional parts, which
must be installed, as shown. Additional parts include an inlet
solenoid valve, check valve, and external prelter.
1. Inlet Valve
2. Bypass Valve
3. Outlet Valve
4. Drain Solenoid Valve
5. Drain Hose
6. Advanced Plus Controller
7. Inlet Solenoid Valve
8. Check Valve
9. External Prefilter
24 VDC
Figure 3
NOTE: The inlet solenoid valve of the surface water option kit
creates a non-pressurized draining of the system. The entire
drain line, including the oor drain, must be below the drain
port of the system.
WARNING: When treating surface
water sources, an external prelter of 20-microns
(e.g. Pentek S1-20BB) nominal micron size is required.
Failure to provide this level of preltration may lead to
system damage and will void the warranty. A damaged
system may cause serious personal injury, illness, and/
or death.
Tools, Supplies and Parts
WARNING: Tools used to install the
system should be maintained in sterile condition so that
the risk of cross-contamination is minimized. Bacteria,
parasites, and viruses can live for long periods of
time. As a result, dangerous organisms can be carried
from one installation or maintenance site to another
and may potentially cause serious personal injury,
sickness and/or death. Proper tool care and disinfection
procedures will minimize these risks.
The following list of tools and supplies are required for the
completion of this installation:
Tools (not provided)
• Slip Joint Pliers 12" • Knife
• Pipe Wrench 12" • Air Pump
• Adjustable Wrenches • 1/4" Hex Key
• Torpedo Level • Torch with Gas
• Fine Slot Drivers • Snips
• Phillips Drivers: #0, 1 • Robertson Drivers: #1, 2
• Nut Drivers: 5/16, 3/8 • Masonry Drill with 3/8"
Bit
Supplies Required (not provided)
• Copper Pipe • Pen or Pencil
• Ground Wire • Funnel
• Flux and Flux Brush • Hose Clamps
• Solder (lead free) • Suspension Strap
• Assorted Copper
Fittings
• Tie Wraps or Cable Ties
• Plumber Tape or Pipe
Dope (for potable
water) NSF Approved
• 5/8" Hose for Drain
(comply with local
plumbing code)
• 3 Water Shut-o Valves
(same size as install
piping)
• 2' x 2' Patio Stones
(required only for
heated oor)
• Unscented Chlorine
Bleach (Clorox) - 5-6%
or 12%
Tools Supplied with Integrity Test Kit
• Integrity Tester • Housing Wrench
• Cap Wrench • Two Pressure Gauges
• Silicone Lubricant -
DOW CORNING 111
• Digital Air Pressure
Gauge
• Two 1/4" Tubings
Spare Parts (recommended)
• AA Batteries • O-ring
• Inlet Solenoid Valve • Drain Solenoid Valve
• Air Relief Valve • Advanced Plus
Controller
• Stainless Steel Flex
Hose
• 1/4" Mini Ball Valve
with Plug
• 3/4" Inlet/Outlet Fitting • 1/2" Nipple
WARNING: Ball valves are
recommended for use as the bypass, inlet and outlet
valves. Gate valves have a tendency to leak, allowing
unltered water to mix with ltered water. The result
may cause personal injury, sickness and/or death.
