8
• Drain within 20' (610 cm) and up to 72" (183 cm) high. If
the system is to be equipped with an inlet solenoid valve,
the drain cannot be higher than the drain port of the
system for proper draining.
NOTE: All outlets downstream of the system will provide
ltered water. A dedicated line, diverted from the main water
line, is recommended to be installed upstream of the system for
all exterior taps, pool or hot tub makeup valves, and irrigation
systems. This set-up will help prolong the life of the system
membrane.

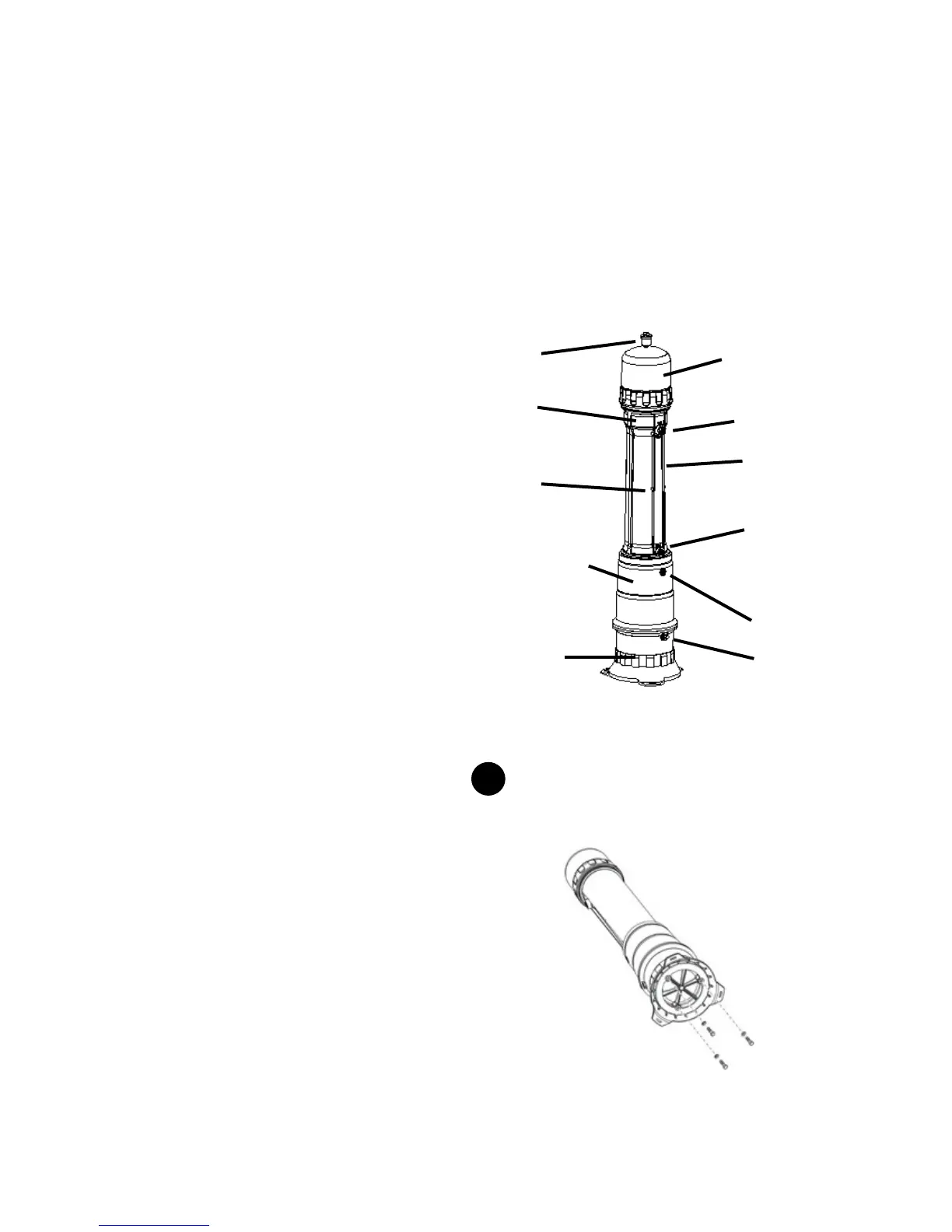

Part Identication
System Cap
Backpulse Tank
System Base
Air Bladder
Valve
Outlet port
Drain port
Inlet port
Air Relief Valve
Membrane
Module
Internal
Prelter
System Casing
Figure 4
System Installation
1
The system is shipped fully assembled, except for the
system base. Attach the system base to the backpulse tank,
using the supplied 3/8" bolts and washers.
Figure 5
System Parts List
UFC 211 and UF 211
• System
(pre-assembled)
• Transformer (120VAC)
• System Base • Advanced Plus
Controller
• Carbon Prelter • Cap Wrench
• Two Stainless Steel Flex Hoses
Inside the bubble bag:
• 1 - Drain Solenoid Valve
(normally closed)
• 2 - 3/4" Inlet/Outlet
Fittings
• 1 - Nylon Elbow • 1 - 1/2" Nipple
• 2 - 1/4" Mini Ball Valves
with Plugs
• 3 - 1/4" x 2-1/2"
Anchors
• 1 - Air Relief Valve • 3 - Shims
• 3 - 3/8" Bolts
Surface Water Kit (optional)
• 1 - External Prelter
Housing
• 1 - 1/4" Mini Ball Valve
with Plug
• 1 - Wall Bracket Kit • 1 - Check Valve
• Mounting Screws • 4 - 1/2" Lag Bolts
• 1 - Inlet Solenoid Valve
(normally open)
• 1 - External Prelter
Cartridge (20- micron
nominal)
Preparing for Installation
Pre-Installation Inspection
Prior to beginning the installation, check for the following:
• Space near point of entry of water supply
• Footprint and height clearance
Footprint: minimum 18" x 18" (46 x 46 cm)
Height Clearance: minimum 74" (188 cm)
• Indoors with ambient temperature between 40-90°F
(4-32°C)
• Drillable oor, patio stone, or wood base. Patio stone
must be securely anchored to oor
• Electrical outlet, uninterruptable 120VAC, within 6' (182.8
cm)
• Existing water equipment (e.g. water softeners, lters
upstream and UV downstream)
• Recommended household water pressure is 30 psi
minimum. If water pressure is less than 30 psi, adjust
backpulse tank pressure. Refer to Step 4 in the System
Installation section.
