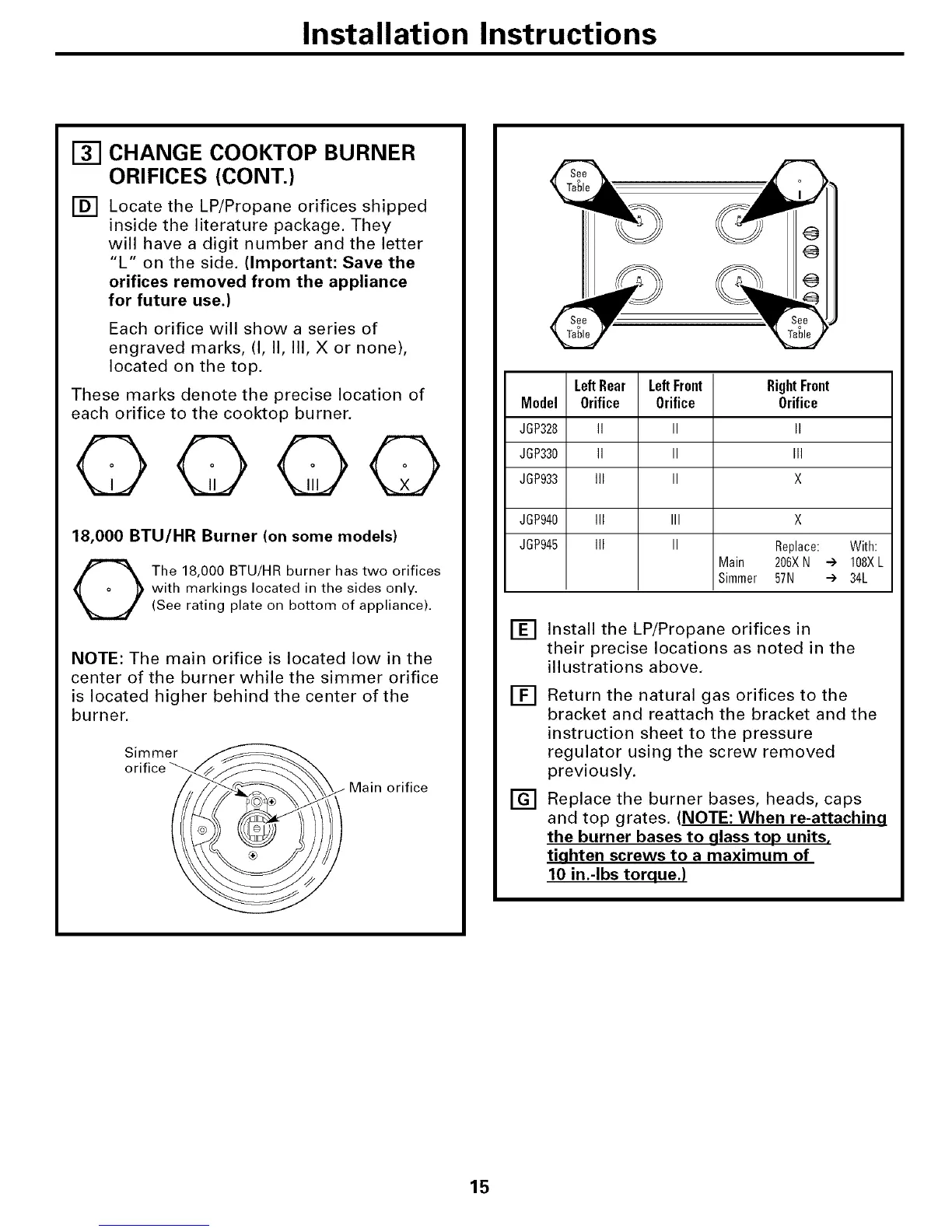

Installation Instructions
I-_ CHANGE COOKTOP BURNER
ORIFICES (CONT.)
[] Locate the LP/Propane orifices shipped
inside the literature package. They
will have a digit number and the letter
"L" on the side. (Important: Save the
orifices removed from the appliance
for future use,)
Each orifice will show a series of
engraved marks, (I, II, III, X or none),
located on the top.
These marks denote the precise location of
each orifice to the cooktop burner.
OOOO
18,000 BTU/HR Burner (on some models)
O he 18,000 BTU/HR burner has two orifices
with markings located in the sides only.
(See rating plate on bottom of appliance).
NOTE: The main orifice is located low in the
center of the burner while the simmer orifice
is located higher behind the center of the
burner.
Simmer
Main orifice
O
O
LeftRear LeftFront RightFront
Model Orifice Orifice Orifice
JGP328 II II II
JGP330 II II III
JGP933 III II X
JGP940 III III X
JGP945 III II Replace: With:
Main 206XN ..-) I08XL
Simmer 57N --) 34L
[]
[]
[]
Install the LP/Propane orifices in
their precise locations as noted in the
illustrations above.
Return the natural gas orifices to the
bracket and reattach the bracket and the
instruction sheet to the pressure
regulator using the screw removed
previously.
Replace the burner bases, heads, caps
and top grates. (NOTE: When re-attachinq
the burner bases to qlass top units,
tiqhten screws to a maximum of
10 in,-Ibs torque,)
15
To Next Page
