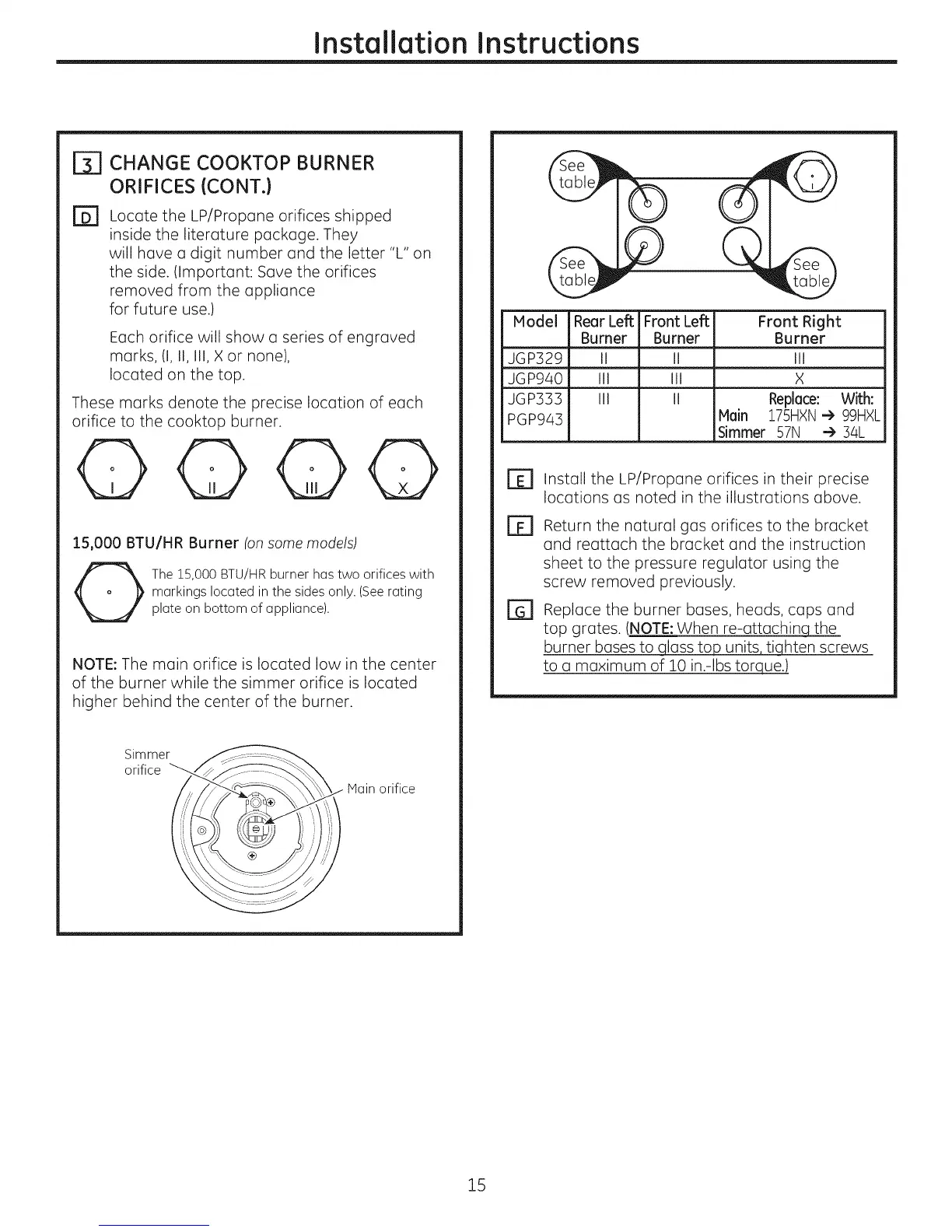

Installation Instructions
CHANGE COOKTOP BURNER
ORIFICES (CONT.)
Locote the LP/Propone orifices shipped
inside the literoture pockoge. They
will have a digit number and the letter "L" on
the side. (Important: Sove the orifices
removed from the opplionce
for future use.)
Each orifice will show o series of engroved
morks, (I, II, III, X or none),
Iocoted on the top.
These morks denote the precise Iocotion of eoch
orifice to the cooktop burner.
0000
15,000 BTU/HR Burner (on some models)
O he 15,000 BTU/HRburner has two orifices with
markings located in the sides only. (Seerating
plate on bottom of appliance).
NOTE: The moin orifice is Iocoted low in the center
of the burner while the simmer orifice is Iocoted
higher behind the center of the burner.
Simmel__i
orifice
Hain orifice
Model Rear Left Front Left Front Right
Burner Burner Burner
JGP329 II II III
JGP940 III III X
JGP333 III II Replace: With:
PGP943 Main 175HXN-e 99HXL
Simmer 57N -e 34L
[]
Install the LP/Propone orifices in their precise
locations us noted in the illustrations above.
Return the natural gas orifices to the brocket
ond reottuch the brocket ond the instruction
sheet to the pressure regulator using the
screw removed previously.
Reploce the burner boses, heods, cops ond
top grotes. (NOTE: When re-ottuchinq the
burner bases to loss to units tiqhten screws
to o maximum of 10 in.-Ibs torque.)
15
