E1
Installation Instructions
10
The electrode of the spark igniter is exposed. Be careful not to push any cooktop controls while
the top of the burner is removed. Do not remove the top or touch the electrode of any burner
while another burner is turned on. Electrical shock might result.
Assembling the Cooktop Burners
a. Place the burner head on the burner bowl, so that the location of the spark igniter matches up with
the opening in the burner head.
b. Position the burner cap on the burner head.
c. Place the burner grate over the burner assembly and into the burner bowl. The bottoms of the
burner grates have fingers that fit into corresponding indentations in the burner bowl.

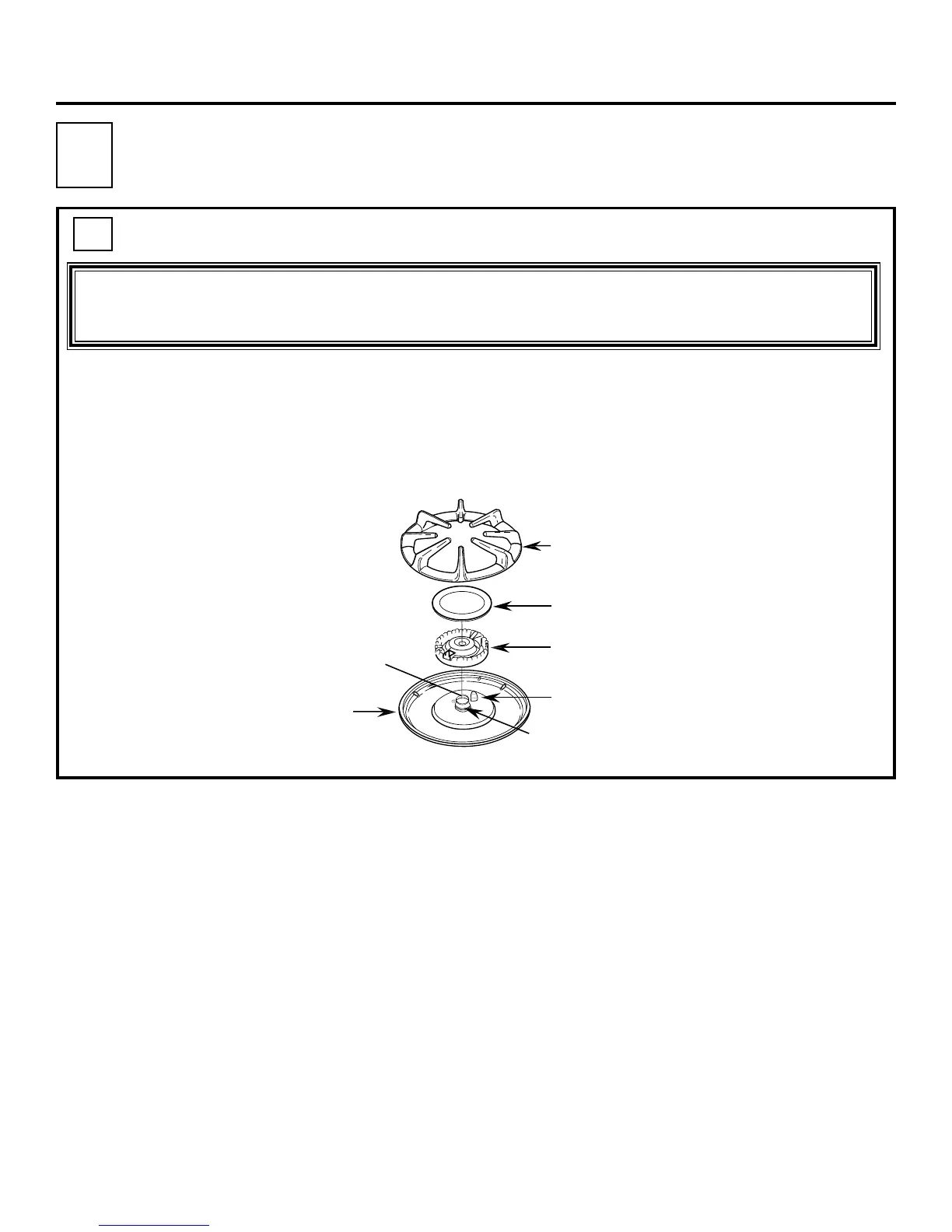

BURNER
BOWL
SPARK IGNITER
BURNER GRATE
BURNER CAP
BURNER HEAD
MIXER TUBE
(CHIMNEY)
MIXER TUBE
Cooktop Burners
E
To Next Page
