GE JKP20 Technical Service Guide

– 20 –
Electronic Oven Control System
The Electronic Oven Control System consists of
the electronic control (ERC), key panel, oven
sensor, and door lock assembly.
Control Panel
There are 8 basic control panel assemblies. They
can be found listed by model number in the Con-
trol Panel Features section on pages 6 through 16.
Control Panel Access
1. Disconnect the power and open the oven door.
2. Remove 3 screws from across the bottom of
the control panel.
3. Push up on the control panel assembly to
release the top catches.
Note: See special instructions for Glass Touch
Models Only, page 25.
Electronic Range Control (ERC)
Caution: Components are electronically hot on
ERC when voltage is connected to range
.
Note: Temperature/Mode Selection is necessary
for operation of relay contacts.
Note: Voltage must be present across terminals
L1 to N for ERC to operate.

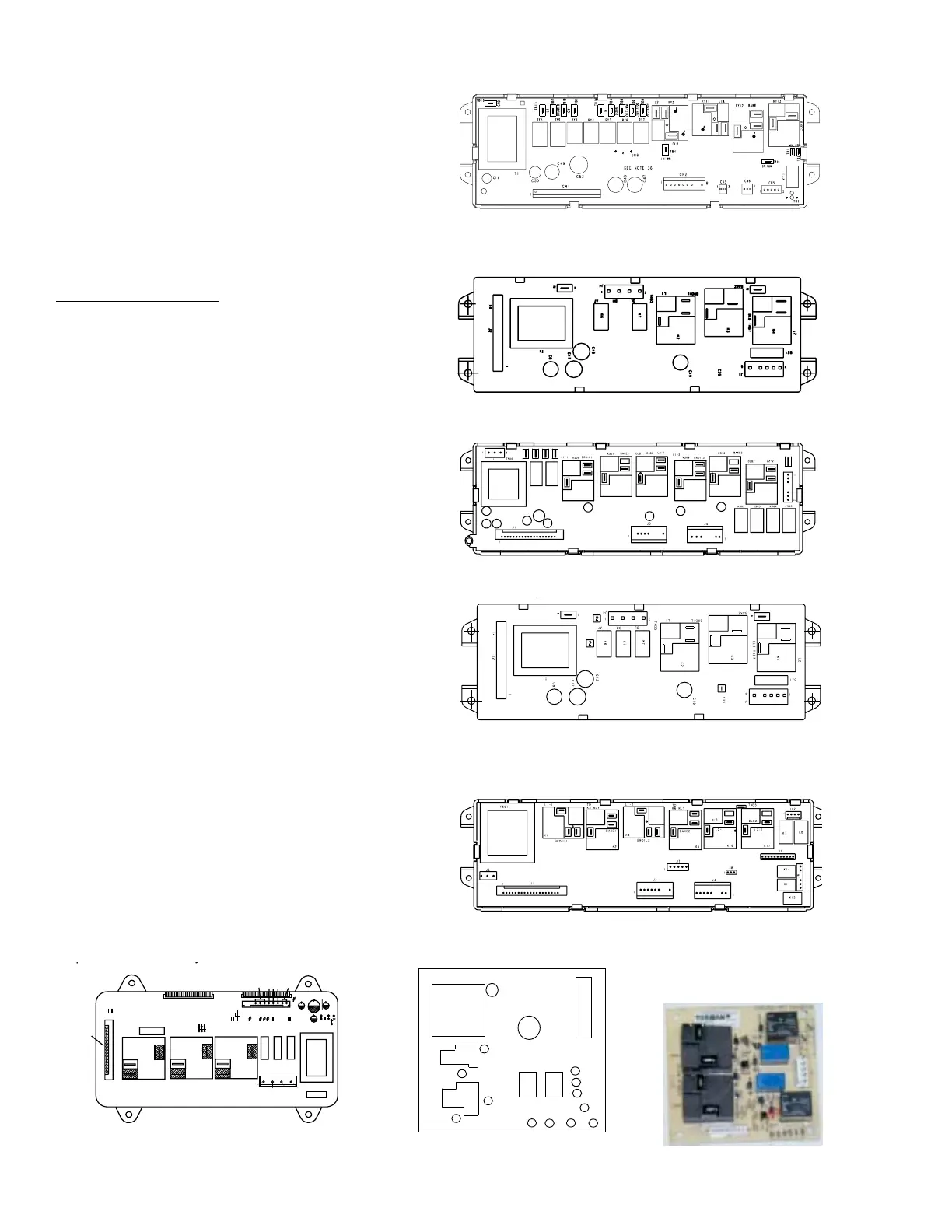

There are 7 basic ERC configurations (see illus-
trations). The ERC contains the bake and broil
relays, convection relay (some models), control
transformer, lock motor relay (some models),
sensor, and lock motor connector (some models),
along with a series of 1/4-in. terminals for connect-
ing power to the control and heating units.
Models ZEK938, ZET938, JK915, JT915, JCK915,
JCT915, and JT912
Models JKP20, JCKP20, JKS06, and JCKS06
Models JPT20 and JKP28
Models JKP48, and JTP48
g
Models ZEK958, ZET958, JK955, JT953, and JT955
L1
BROIL
N
BAKE
1
P
1
0
2
1
4
SENSR1
COMMON
LOCK
UNLOCK
LAMP
MOTOR1 MOTOR2
SENSR2
Models JT965 and JTP86
py
BAKE
RIBBON
CONNECTOR
1
CONVECTION
(If equipped)
BROIL
CN-02
2
L1
-N-
MDL
CFAN
LAMP
LATCH
MOTOR
CONV
FAN
(If equipped)
OVEN
LAMP
N
O
V
E
N
S
E
N
S
O
R
COMMON
L
O
C
K
E
D
U
N
L
O
C
K
E
D
M
E
A
T
P
R
O
B
E
CN-O1 1
Model JKP86
Models ZEK958, ZET958,
JK955, JT952, and JT955
Daughter Board
