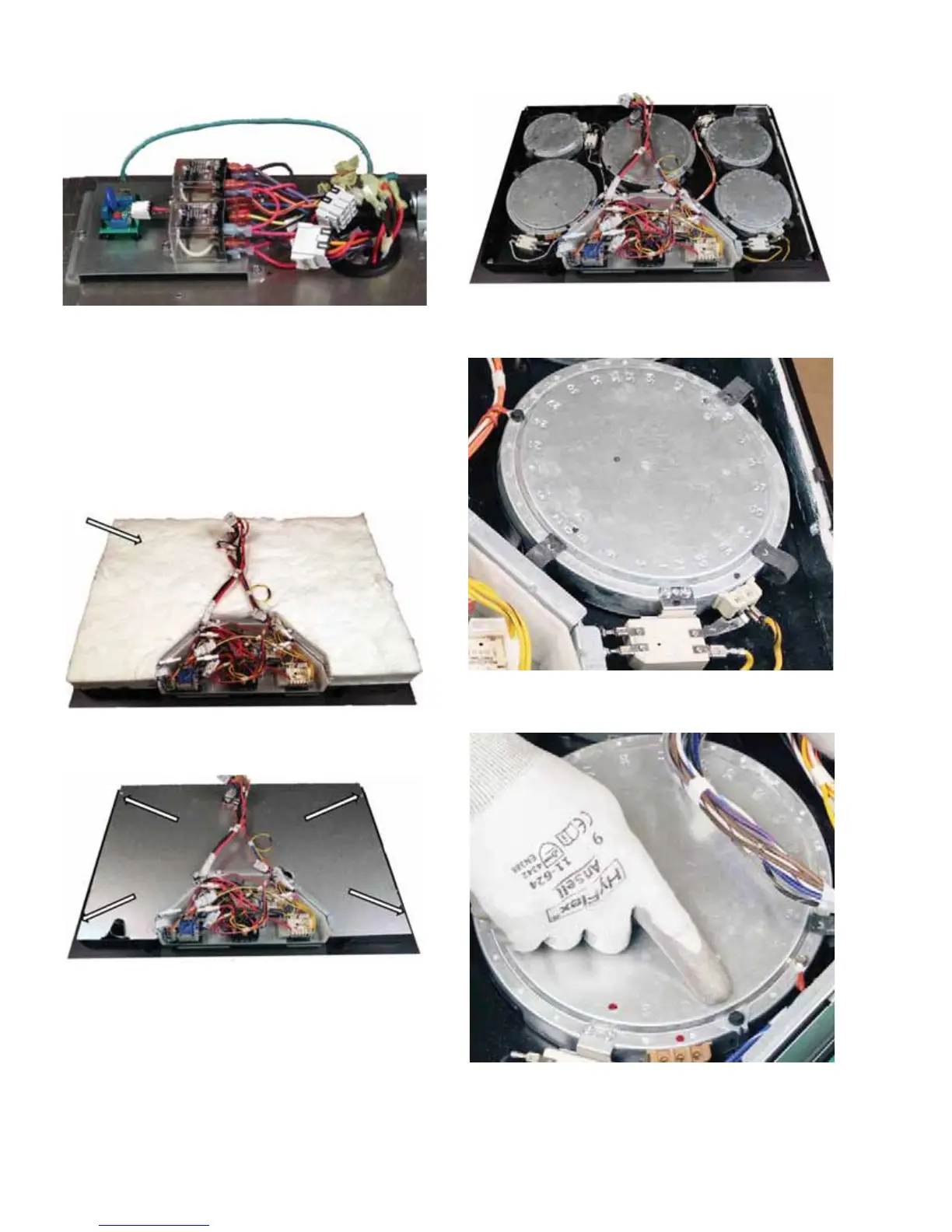

8. Remove insulation cover.
9. Spring clips secure elements onto the maintop
glass and frame assembly.
10. Large elements also have a bracket that secures
with one 1/4 in. screw.
2. Disconnect two multi-pin connectors and two L1
and two L2 wire connectors.
3. Remove the perimeter screws.
4. Raise the bottom cover and slide the connectors
through the rubber grommet on the cover.
5. Set the bottom cover back into the installation
opening.
6. Remove the insulation.
7. Remove four 1/4 in. hex head screws from the
insulation cover.
