31-11072-1 7
Installation Instructions

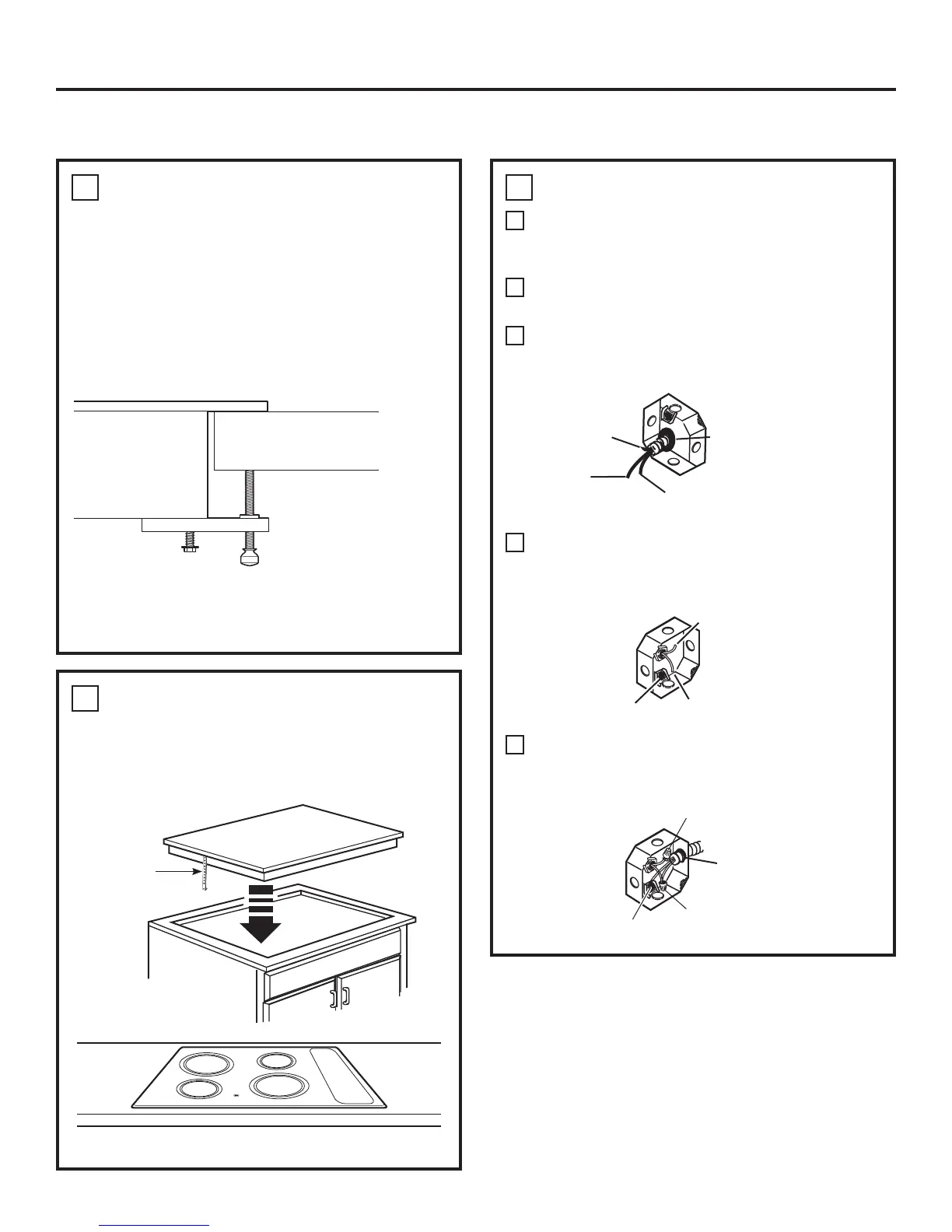

INSTALLING THE COOKTOP (Cont)
4
MOUNTING PARTS (Cont)
Alternate Installation:
You can order an alternate installation kit
WB01X24570 with wing nuts and brackets by calling
800.GE.CARES. See diagram for instructions.
Open the cabinet door. Install the second screw
through the bracket and tighten. Then tighten the first
screw. Install thumbscrew until it touches the bottom
of the countertop.
IMPORTANT: Turn the thumbscrew until it touches
the bottom of the countertop. Do not overtighten.
6
ELECTRICAL CONNECTIONS
A
When making the wire connections, use the entire
length of conduit provided. The conduit must not
be shortened.
B
With the cooktop in place, open the front of the
cabinet door.
C
Insert the wires from the conduit through the
opening of the junction box.
D
Connect the red and black leads from the cooktop
conduit to the corresponding leads in the junction
box. Connect the ground wire.
E
Once the connections are made, secure wires
together using wire nuts.
5
INSERT COOKTOP INTO CUTOUT
Insert the cooktop centered into the cutout opening.
Make sure the front edge of the countertop is parallel
to the cooktop. Make final check that all required
clearances are met.
Attach Hold Down Brackets to cabinet.
Cooktop Countertop
Hold Down
Bracket
Cooktop
Strain Relief Clamp
Black
Red
Ground
Black
Red
Ground wire
location
Strain Relief Clamp
Black
Red
Ground
To Next Page
