Installation Instructions
INSTALLING THE
JUNCTION BOX
Install an approved junction box where it will
be easily reached through the front of the
cabinet where the cooktop will be located.
The cooktop conduit is 3 feet long.
IMPORTANT:
The junction box
must be located where it will allow
considerable slack in the conduit for
serviceability.
1
INSTALLING THE COOKTOP
PROTECT SURFACE
OF COOKTOP
Place a towel or tablecloth onto the
countertop. Lay the cooktop upside down
onto the protected surface.
2
ATTACH FOAM TAPE
Apply the foam tape around the outer edge
of the glass. Do not overlap the foam tape.
3
LOCATE MOUNTING PARTS
Remove the hold down brackets and screws
from the literature package.
4
ATTACH BRACKETS
TO COOKTOP
Screw the hold down bracket to the side
of the cooktop unit. Repeat for opposite side
of cooktop.
5

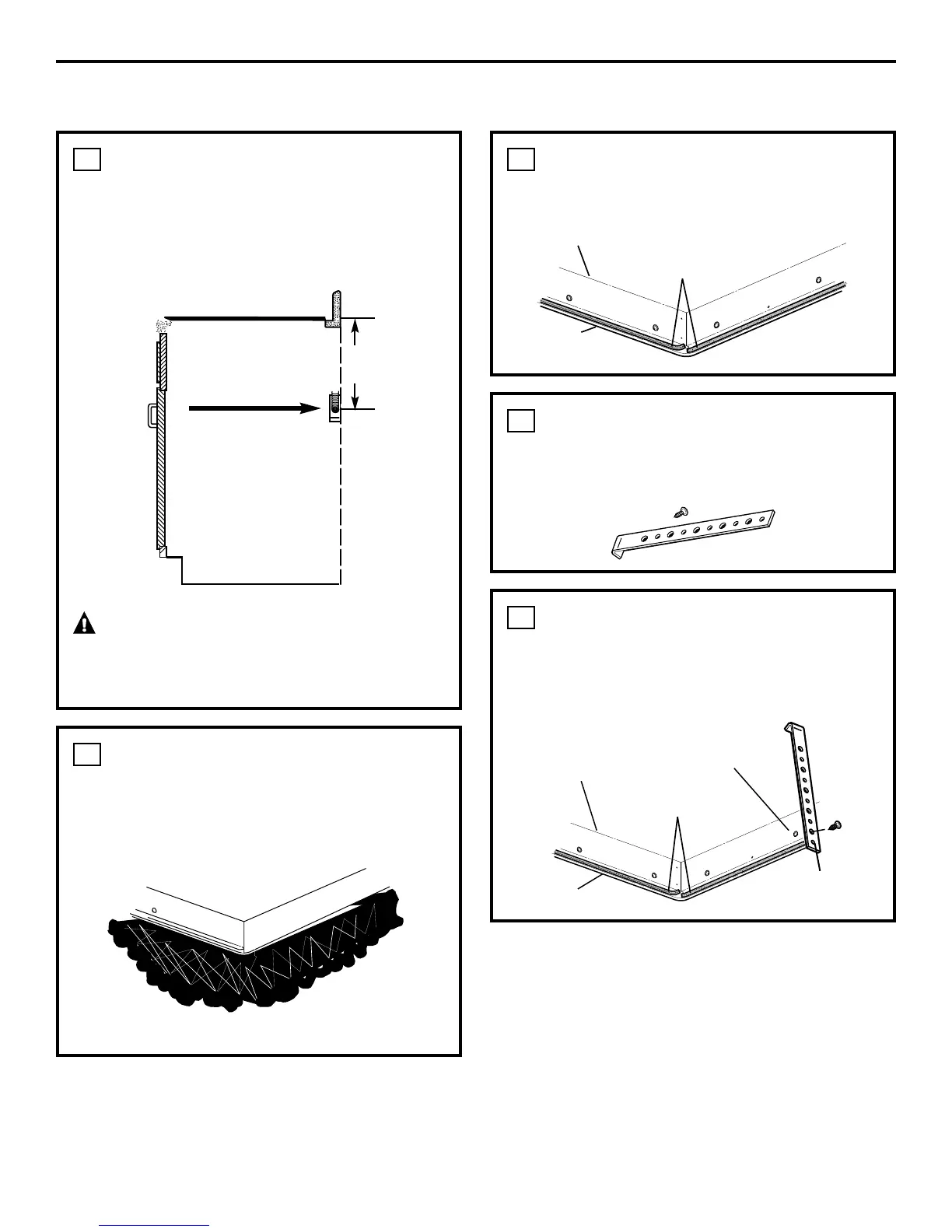

Hold Down
Bracket
Pre-Drilled Hole
Bottom of Cooktop
Cooktop Glass
Foam Tape
Install junction box so
that it can be reached
through the front of
the cabinet.
16″
Min.
Bottom of Cooktop
Cloth under Cooktop
Bottom of Cooktop
Foam Tape
Cooktop
Glass
Mounting Screw
