10
Installation Instructions
Electrical Connections cont.
6

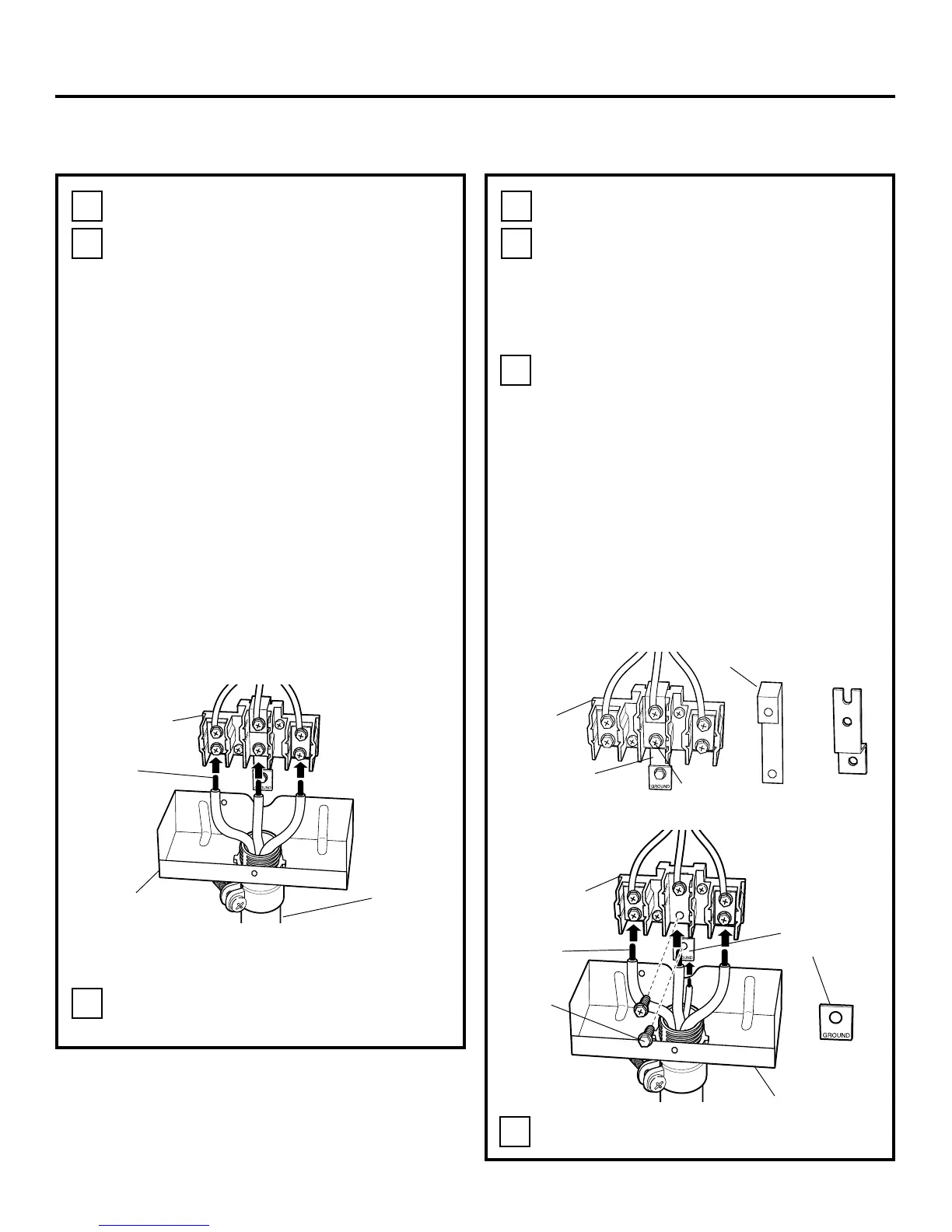

3-WIRE CONDUIT INSTALLATION
A Loosen the 3 lower terminal screws
from the terminal block. Insert the center
bare wire (white/neutral) tip through the
bottom center terminal block opening.
On certain models, the wire will need to
be inserted through the ground strap
opening and then into the bottom center
block opening. Insert the two side bare
wire tips into the lower left and the lower
right terminal block openings. Tighten
the screws until the wire is firmly
secured (35 to 50 inch-lbs.). Do not
over-tighten the screws since it could
damage the wires.
NOTE: ALUMINUM WIRING:
Aluminum building wire may be used
but it must be rated for the correct
amperage and voltage to make
connection. Connect wires according
to this Step 6 or Step 7 depending on
number of wires.
Terminal block
Bracket
Conduit
B Skip to Step 8 and proceed with the
installation.
7
4-WIRE CONDUIT INSTALLATION
A Loosen the three lower terminal screws
from the terminal block. Remove the
ground screw and ground plate and
retain them. Cut and discard the
ground strap. DO NOT DISCARD ANY
SCREWS.
Insert the ground bare wire tip between
the range frame and the ground plate
(removed earlier) and secure it in place
with the ground screw (removed earlier).
Insert the bare wire (white/neutral) tip
through the bottom center of the
terminal block opening. Insert the two
side bare wire tips into the lower left and
the lower right terminal block openings.
Tighten the screws until the wire is firmly
secured (35 to 50 inch-lbs.). Do not
over-tighten the screws since it could
damage the wires.
C
Proceed to Step 8.
Wire tips
Wire used, location and enclosure of
splices, etc., must conform to good
wiring practices and local codes.
B
or
Terminal
block
Ground strap
Neutral
terminal
Ground strap
Before
Terminal
block
Wire tips
Ground
screw
Bracket
Ground
plate
(grounding
to range)
After
To Next Page
