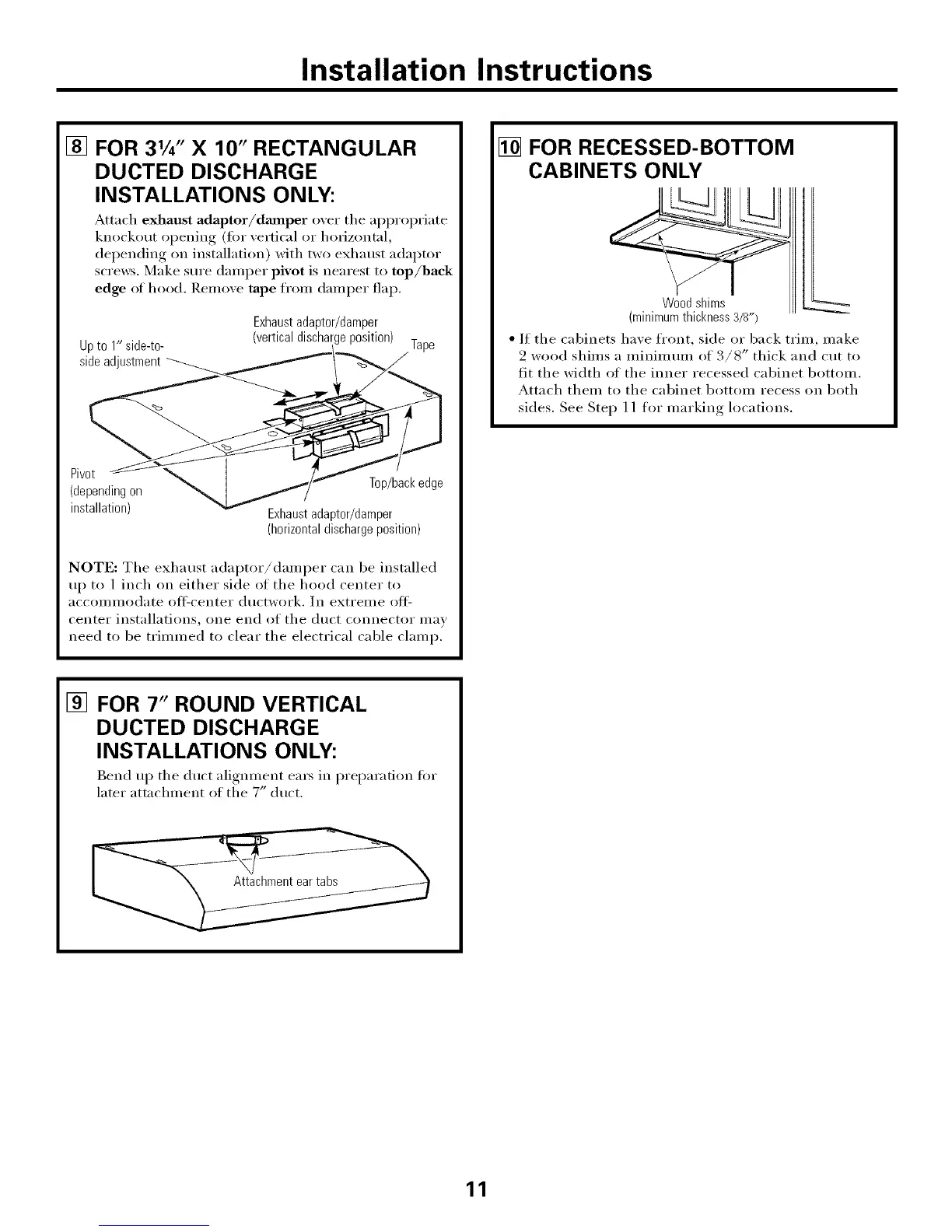

Installation Instructions
[] FOR 31/4"X 10" RECTANGULAR
DUCTED DISCHARGE
INSTALLATIONS ONLY:
Attach exhaust adaptor/damper over the appropriate
knockout opening (fin" vertical or horizontnl,
depending on installation) with two exhaust adaptor
scre_:s. Make sure damper pivot is nearest to top/back
edge ot hood. Remove tape fl'om damper flap.
Upto 1" side-to-
sideadjustment
Exhaustadaptor/damper
(verticaldischargeposition)
Pivot Top/backedge
(dependingon
installation) Exhaustadaptor/damper
(horizontaldischargeposition)
NOTE: The exhaust adaptor/damper can be installed
up to 1 inch on either side of the hood center to
accommodate ot_centei" (hlctwoi'k, In extFellle o_'_L
center installations, one end of the duct connector may
need to be trimmed to clear the electrical cable clamp.
[] FOR RECESSED-BOTTOM
CABINETS ONLY
Wood shims
(minimum thickness 3/8") """'-
• If the cabinets have fl'ont, side or back trim, make
2 wood shims a minimmn of 3/8" thick and cut to
fit the width of the inner recessed cabinet bottom.
Attach them to the cabinet bottom recess on both
sides. See Step l l for marking locations.
[] FOR 7" ROUND VERTICAL
DUCTED DISCHARGE
INSTALLATIONS ONLY:
Bend up the duct aligmnent em_ in preparation fin.
later attachment of the 7" duct.
11
