GE JVM1540 OTR - Component Location and Removal

33
Copyright 2009
HV Capacitor & Diode

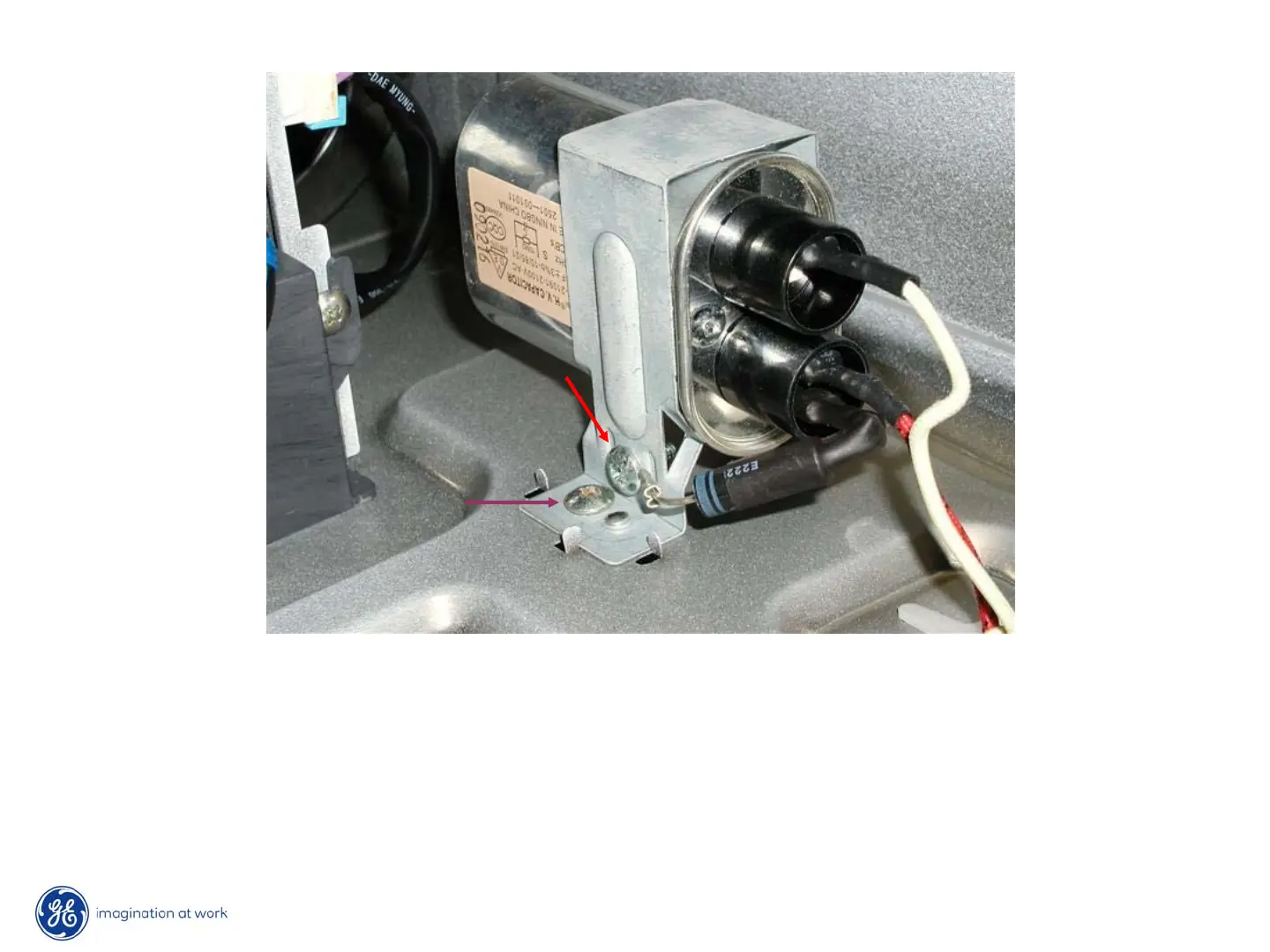

• The diode can be disconnected by removing screw (arrow) & removing
connector from capacitor terminal.
• The capacitor can be released removing screw (arrow) and sliding out
from under clamp.
