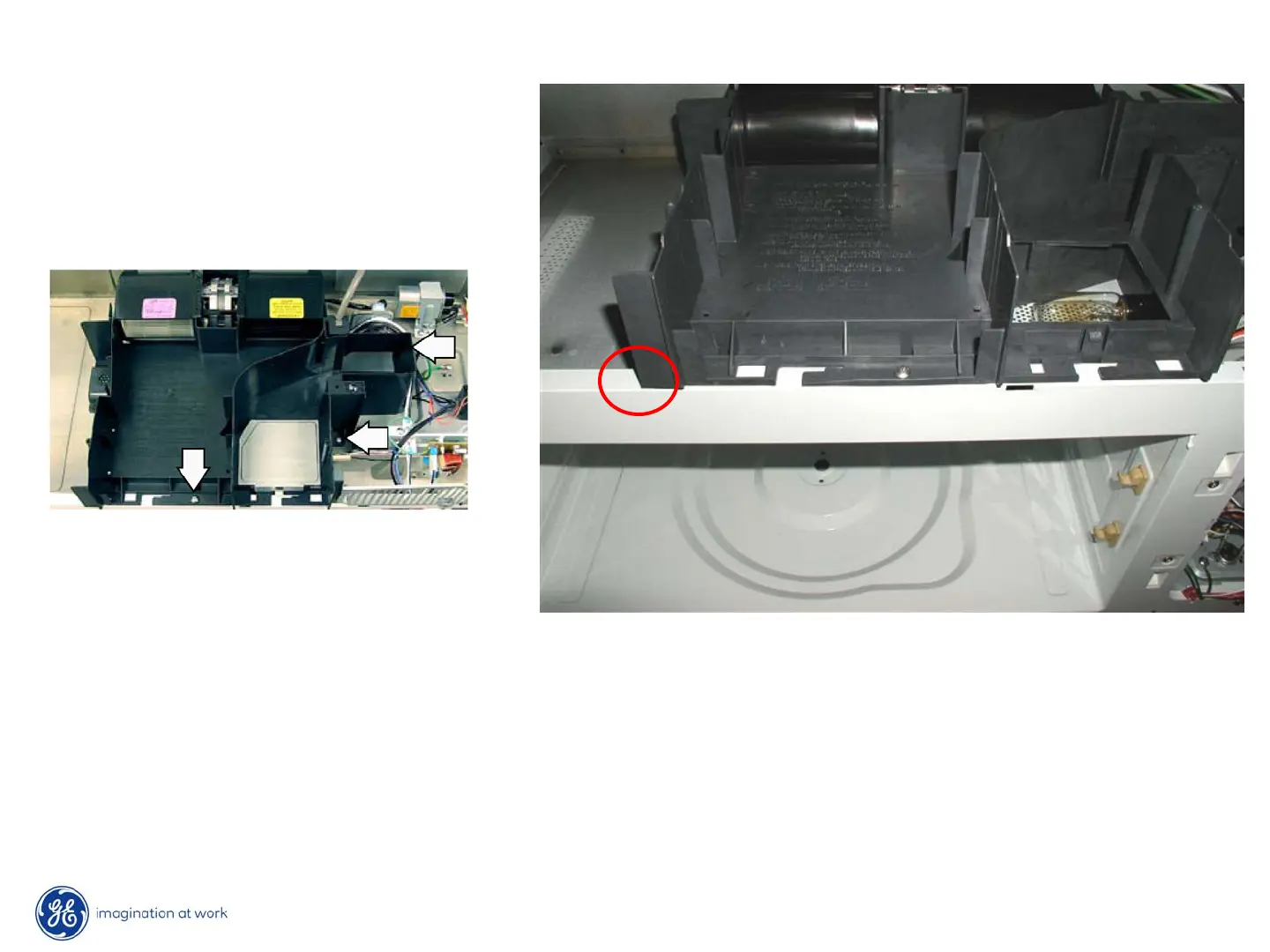

Duct Assembly
•
The plastic air duct assembly is mount
ed to the top of the chassis frame.
•
It provides for the passage of ai
r from the cooling & vent fans.
•
The duct assembly needs to be removed to access the cavity TCO
.
•
