Magnetron Cooling Fan
•

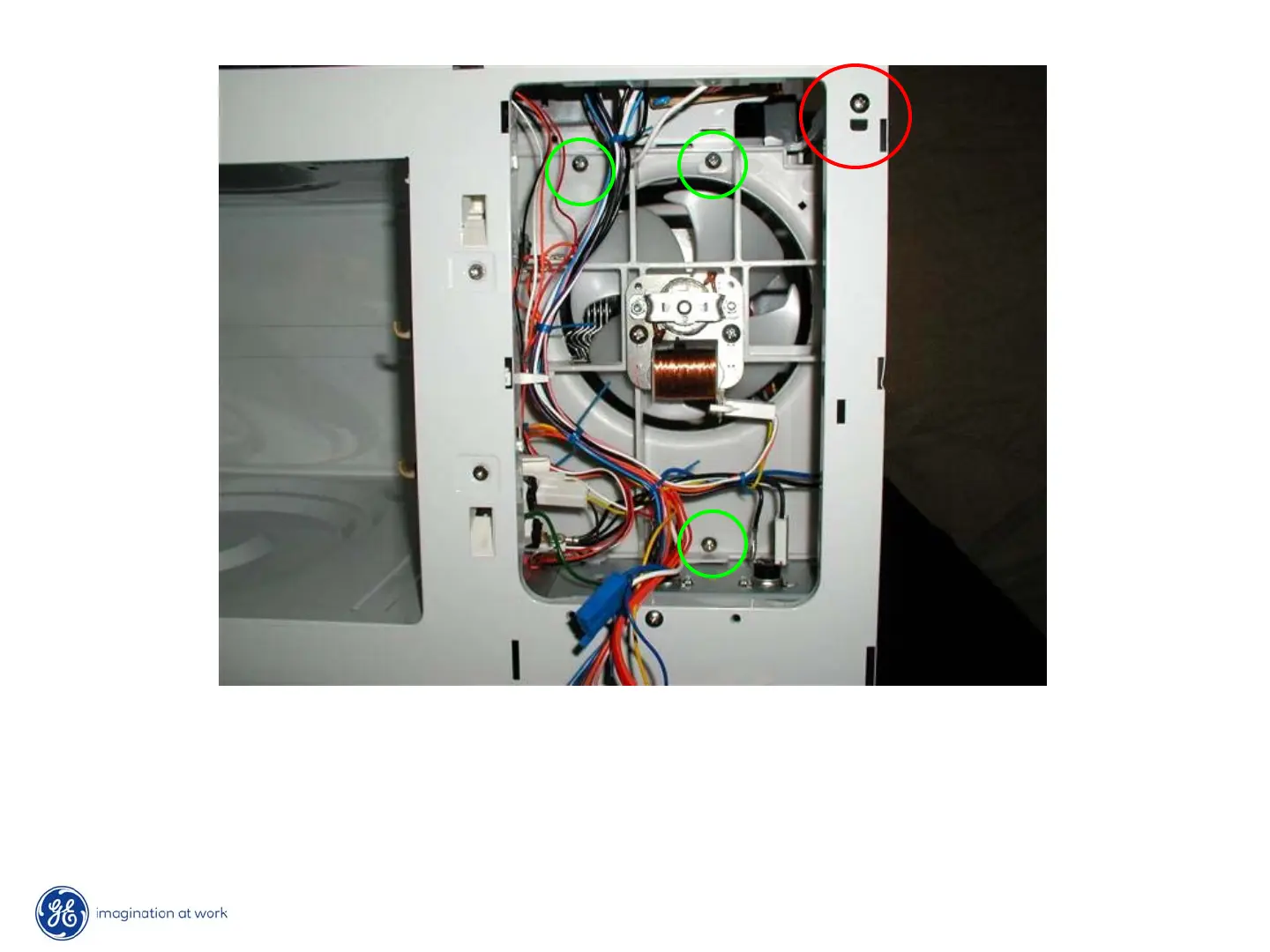

To access cooling fan motor & blade assembly:
•
First remove one screw securing front frame to support (
circle
).
•
Next remove three screws securing fan bracket to frame (
circles
).
•
Remove wire harness from fan motor.
