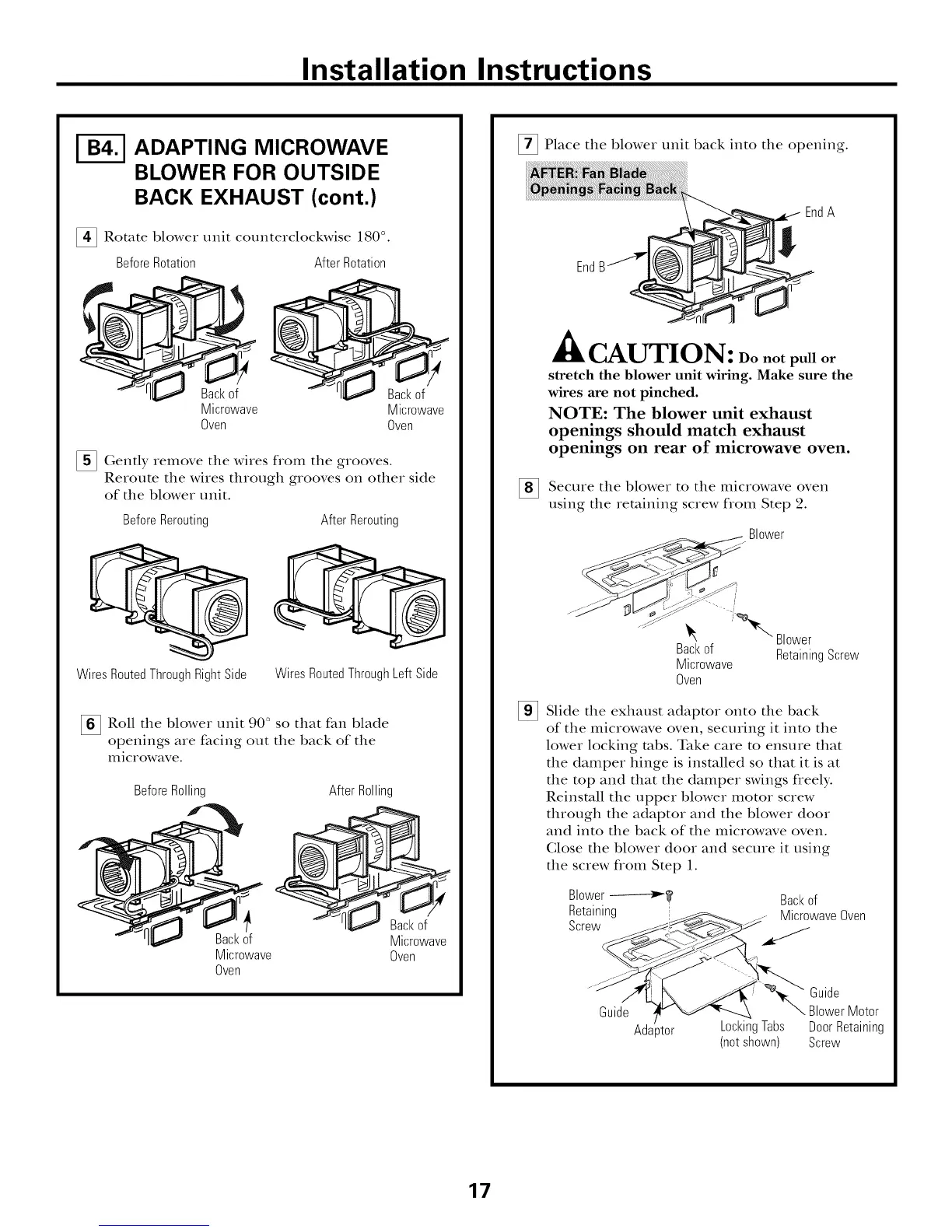

Installation Instructions
I-_ ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST (cont.)
_ Rotate blower unit counterclockwise 180 °.
BeforeRotation After Rotation
Microwave Microwave
Oven Oven
[Gently' the wires flom the
ienlove
grooves.
Reroute the wires through grooves on other side
of the blower unit.
BeforeRerouting After Rerouting
Wires RoutedThroughRightSide Wires RoutedThroughLeft Side
[]Roll the blower unit 90 ° so that fan blade
openings are facing out the back of the
microwave.
BeforeRolling
Microwave
Oven
After Rolling
_ Backof
Microwave
Oven
[]Place the blower unit back into the opening.
EndA
End
A
CAUTION: Donot pull or
stretch the blower unit wiring. Make sure the
wires are not pinched.
NOTE: The blower unit exhaust
openings should match exhaust
openings on rear of microwave oven.
[ Secure the blower to the microwave oven
using the retaining screw flom Step 2.
%
Blower
' "Blower
Back of Retaining Screw
Microwave
Oven
Slide the exhaust adaptor onto the back
of the microwave oven, securing it into the
lower locking robs. Take care to ensure that
the damper hinge is installed so that it is at
the top and that the damper swings fleely.
Reinstall the upper blower motor screw
through the adaptor and the blower door
and into the back of the microwave oven.
Close the blower door and secure it using
the screw flom Step 1.
Blower ----------_g Backof
_[2 ining _ MicrowaveOven
Guide / _.._<_'_r-_._ N Blower Motor
Ada_tor LockingTabs DoorRetaining
(notshown) Screw
17
