GE JVM1950 User Manual

Installation Instructions

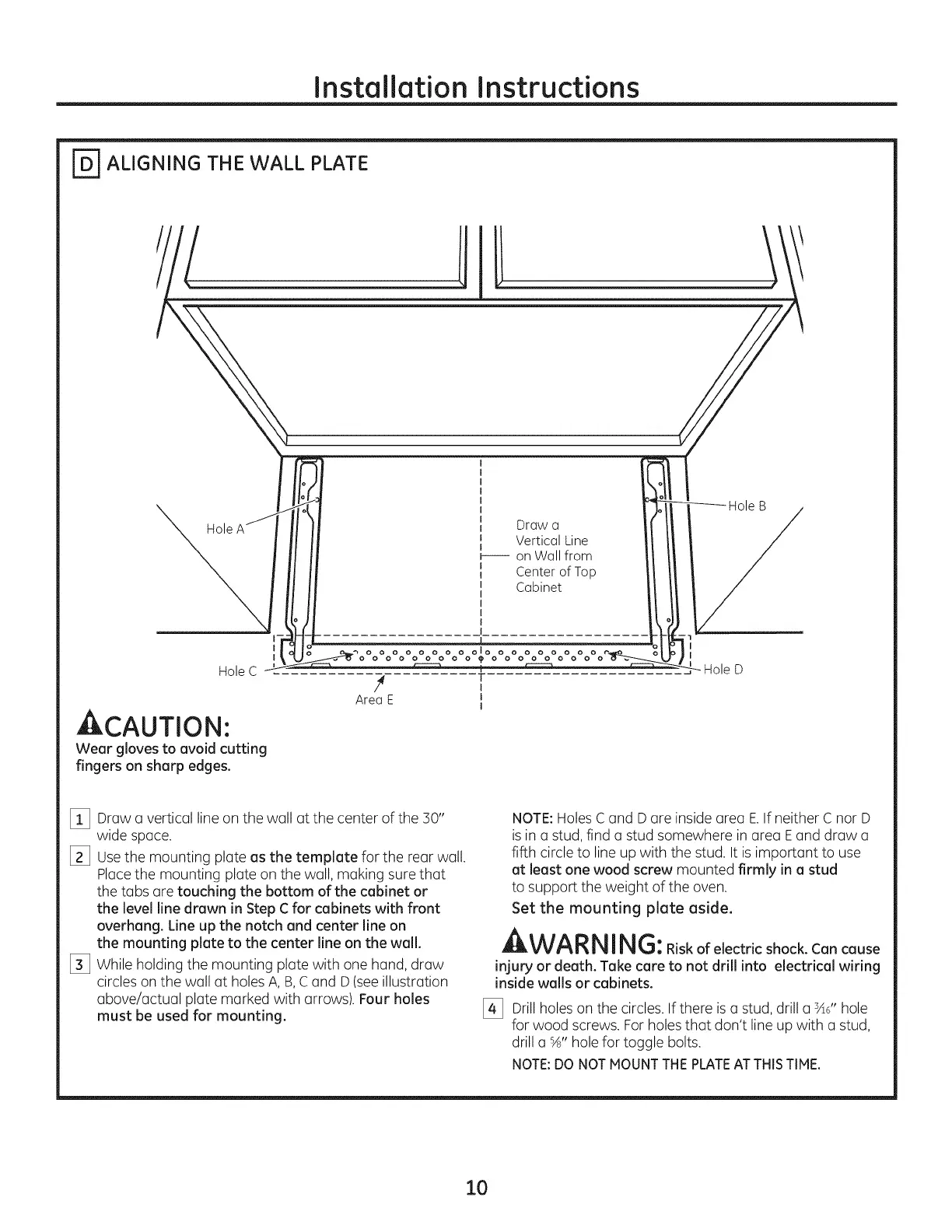

[D] ALIGNING THE WALL PLATE
| \\
ar)
5
Hole A
Hole B
Draw a
Vertical Line
ho on Wall from
Center of Top
Cabinet
|
|
|
|
\
{ jo
\
\
|
|
TT = |
|
Hole C
ACAUTION:
Wear gloves to avoid cutting
fingers on sharp edges.
Draw a vertical line on the wall at the center of the 30”
wide space.
Use the mounting plate as the template for the rear wall.
Place the mounting plate on the wall, making sure that
the tabs are touching the bottom of the cabinet or
the level line drawn in Step C for cabinets with front
overhang. Line up the notch and center line on
the mounting plate to the center line on the wall.
While holding the mounting plate with one hand, draw
circles on the wall at holes A, B, C and D (see illustration
above/actual plate rnarked with arrows}. Four holes
must be used for mounting.
t
i oS A Oo 6 0 60 6 6 8 6 c
t Z ooo GOO 8UUOUOUCOUMGUUOUCOUUCOULUOOUCOUCOOUCOOUCUOOUG
t En. an. a=.
oO
colo 0 0 6 0 oO oO OO ° |
<corernanmnalemesiemnameennmteemantnnsimienmere tLe [)
NOTE: Holes C and D are inside area E. If neither C nor D
is in a stud, find a stud somewhere in area E and draw a
fifth circle to line up with the stud. It is important to use
at least one wood screw mounted firmly in a stud
to support the weight of the oven.
Set the mounting plate aside.
AWARN | N G: Risk of electric shock. Can cause
injury or death. Take care to not drill into electrical wiring
inside walls or cabinets.
Drill holes on the circles. If there is a stud, drill a “As” hole
for wood screws. For holes that don’t line up with a stud,
drill a 4" hole for toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.
10
