DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
C
Your cabinets may have decorative trim that interferes
with the oven installation. Remove the decorative trim
to install the oven properly and to make it level.
7+(29(10867%(/(9(/
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no back
or side frame, install the mounting plate down the same
distance as the front overhang depth. This will keep
the oven level.
Measure the inside depth of the front overhang.
Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside depth
of the front overhang.
For this type of installation with front overhang only,
align the mounting tabs with this horizontal line, not
touching the cabinet bottom as described in Step D.

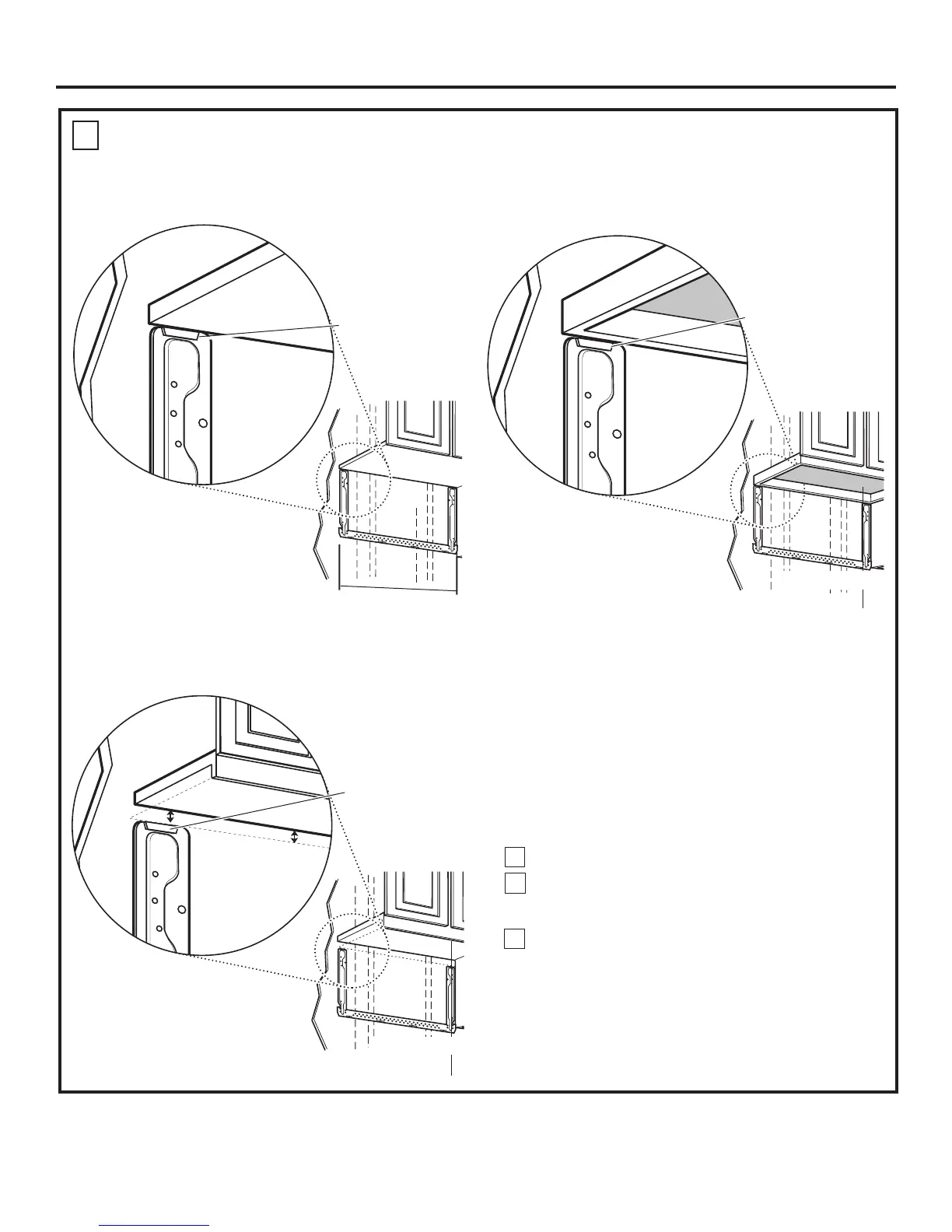

3ODWHSRVLWLRQ²EHQHDWKIODWERWWRP
FDELQHW
3ODWHSRVLWLRQ²EHQHDWKUHFHVVHGERWWRP
FDELQHWZLWKIURQWRYHUKDQJ
Mounting Plate Tabs
Touching the Cabinet
Bottom
Mounting Plate
with Tabs Below
Cabinet Bottom
the Same Distance
as the Front
Overhang Depth
At least 30s, up to 36s
3ODWHSRVLWLRQ²EHQHDWKIUDPHGUHFHVVHG
FDELQHWERWWRP
Mounting Plate Tabs
Touching the Back
Frame
Installation Instructions
30s to Cooktop
30s to Cooktop
1
2
3
