GE HEALTHCARE VIVID FIVE
D
IRECTION 5341787-100, REVISION 8 BASIC SERVICE MANUAL
8 - 8 Section 8-4 - Loading Base Image Software
Section 8-4 Loading Base Image Software (cont’d)
8.) System CD will be loaded as shown in the screen below.
9.) System updating finished, refer to Figure 8-69 on page 8-8 .
10.)Press power key to reboot system, then remove the CDROM from the drive immediately. When
system first time boot up after upgrading complete, type Serial Number and Option Key before
starting up.

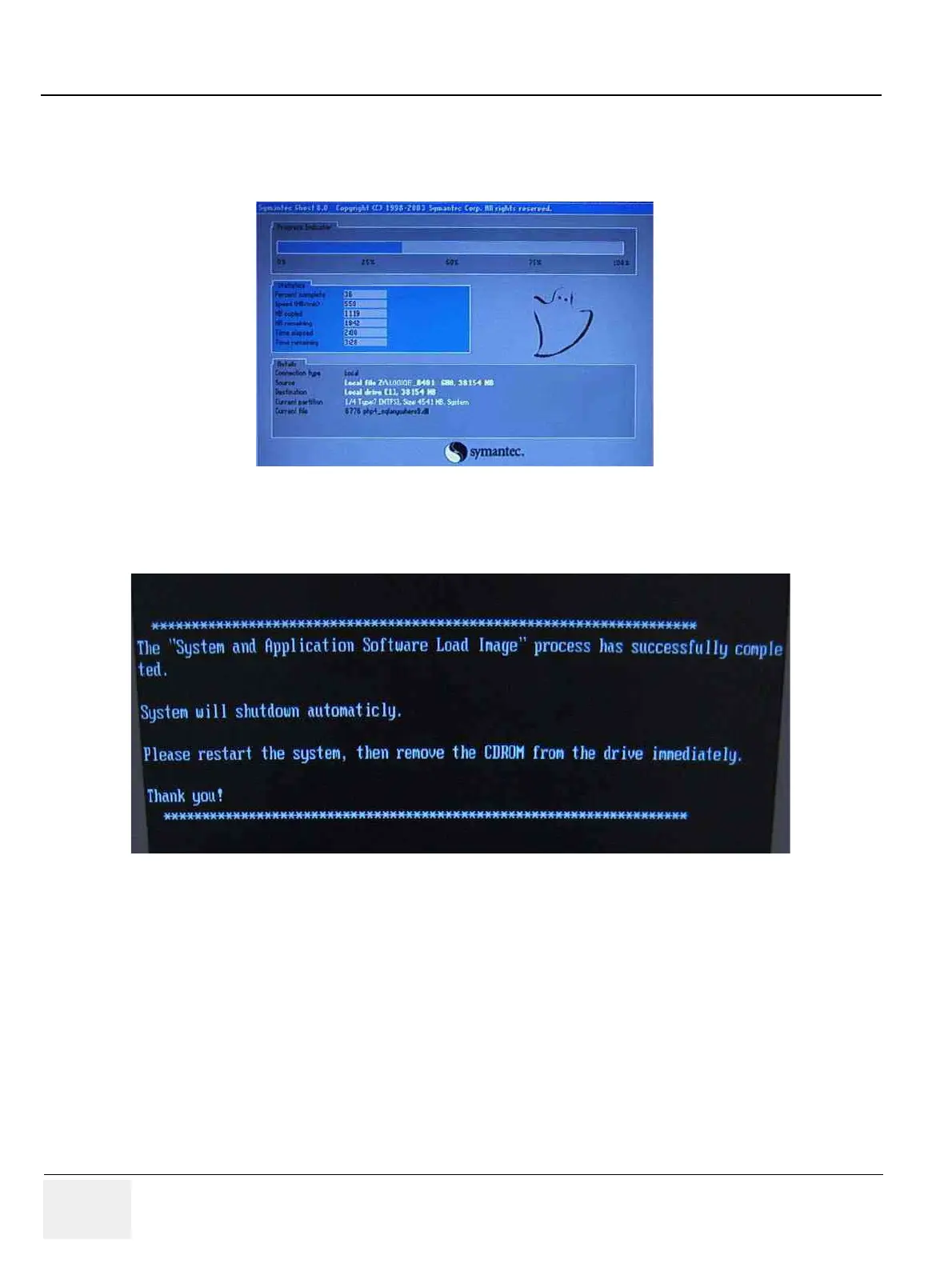

Figure 8-68 Upgrading message
Figure 8-69 System upgrade complete
