3 - 16 Section 3-6 - System Configuration
3-6-5-5 Connect Peripherals (cont’d)
C.) Connect the B/W printer (Sony UP-897MD)to the system
The B/W printer can be properly connected using the Composite Out Port.
D.) Connect Foot Switch to the system.
Foot Switch can be properly connected using USB Ports.

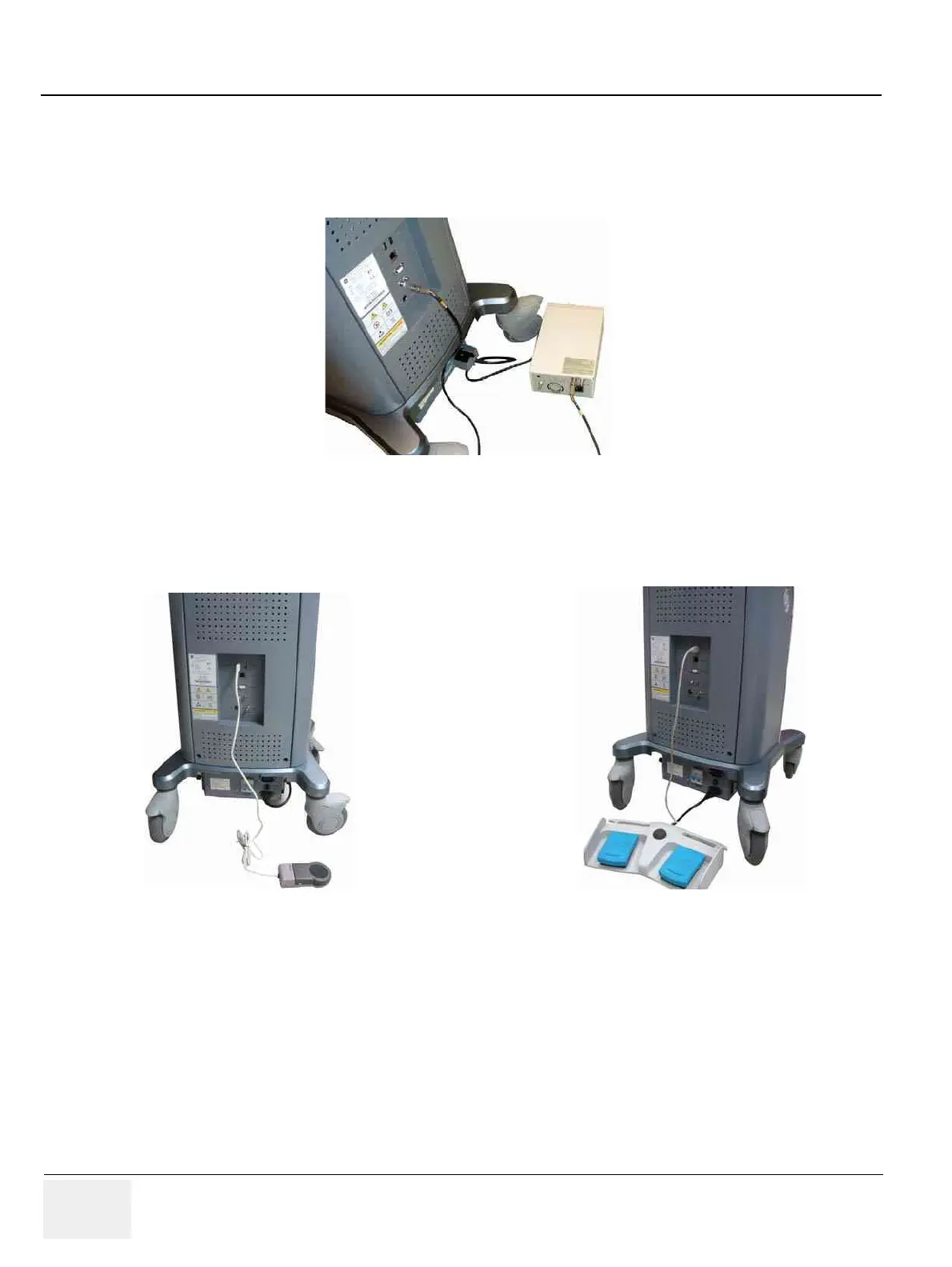

Figure 3-11 Connect B/W Printer (Sony UP-897MD) to the system
Figure 3-12 Connect Foot Switch to the system
1-Pedal Footswitch 3-Pedal Footswitch
