LOGIQ e Quick Guide

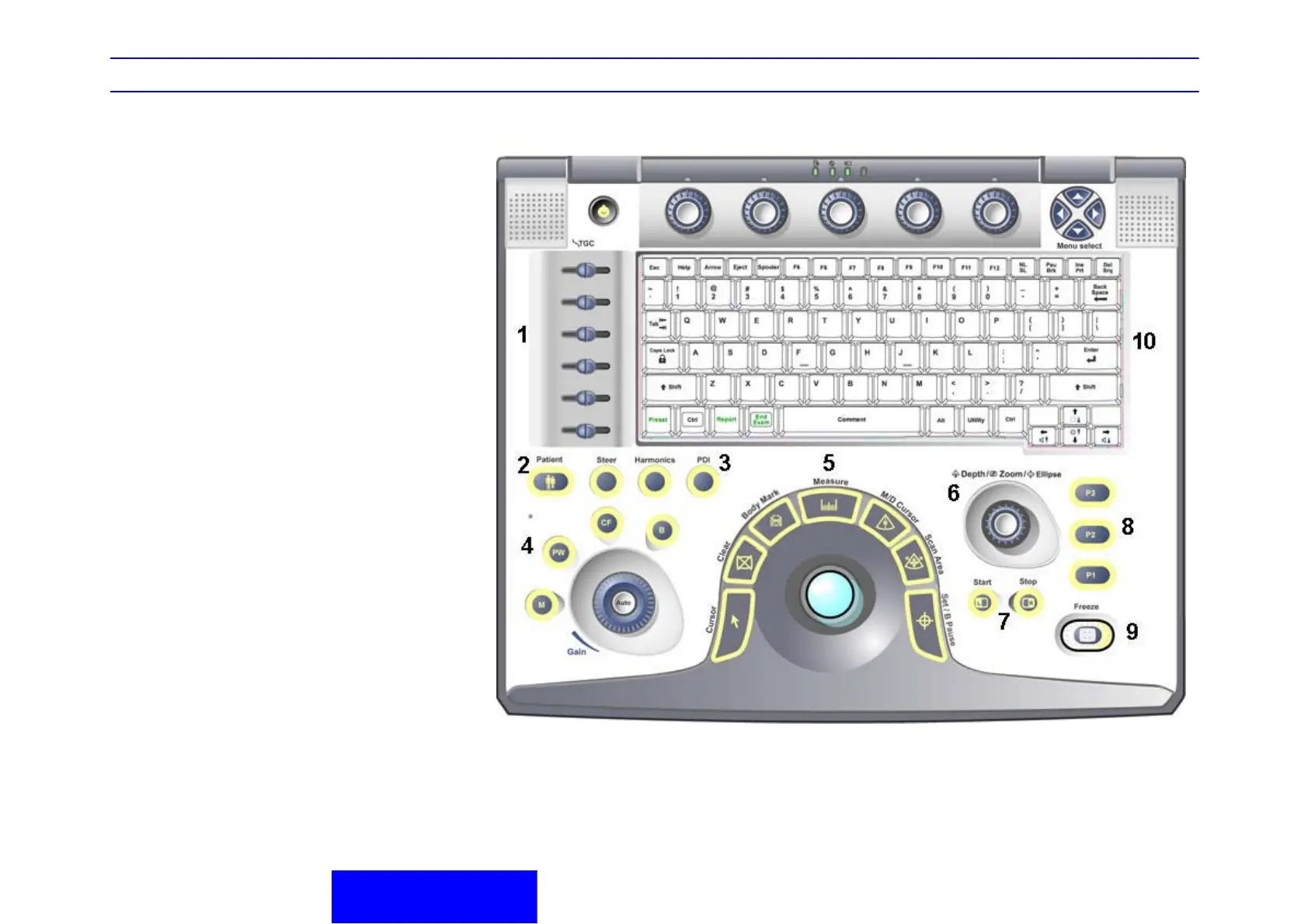

Control Panel Tour
LOGIQ e Knotologi
1. TGC. Juster venstre/høyre for justernig TGC.
2. Ny pasient. Trykk for aktivering.
3. Additional Feature Keys: Steer, Harmonics,
PDI.
4. Mode/Gain/Auto Keys: M Mode, Pulsed Wave
Doppler (PW) Modes, Color Flow (CF) Mode
and B Mode. Press these key to activate the
mode; rotate the key to adjust the Gain; Press
Auto to activate/deactivate auto optimization.
5. Imaging/Measurement Key: Cursor, Clear,
Body Mark Measure, M/D Cursor, Scan Area,
Set / B. Press or rotate these keys, as
necessary.
6. Depth/Zoom/Ellipse. Adjust these keys, as
necessary.
7. Start/Stop.
8. Print Keys: Press the P1, P2, P3 keys to
archive, print, or send the image.
9. Freeze. Press Freeze to freeze the image or
return to scanning.
10. Keyboard. Use the keyboard to enter patient
information and annotations. Press F1, F2, F3,
F4 and F5 keys to activate Online help/User
Manual, Arrow, Eject, Spooler and Reverse
functions. The User can define functions for the
F6-F12 keys. The following functions are
available for F6-F12 Keys: CWD, 3D, LOGIQ
View, Compound, ECG On/Off, Set Home, Text
Overlay, WorkSheet, Grab Last and Word
Delete. Press [Utility] to enter the Utility
function and configure the system. Press
[Preset] to preset the system. Press [Report] to
Enter the worksheet page.
