GE LOGIQ e User Manual

LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 8
Control Panel Tour
LOGIQ e Keys

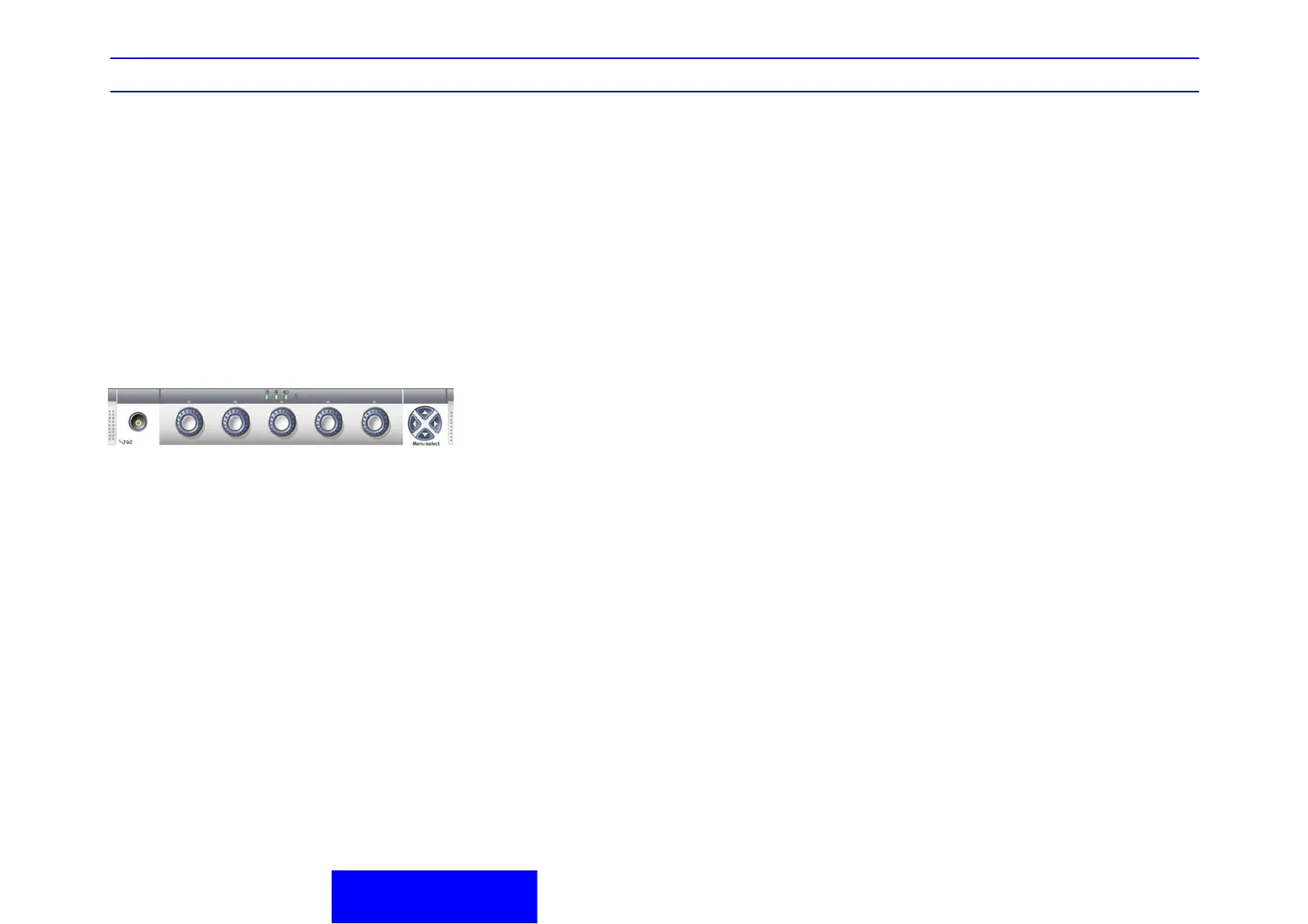

SoftMenu Key Tour
In general, there are two types of softMenu keys:
Paddle Switch and adjustable knobs.
1. The Paddle Switch is used to access and adjust
the Sub SoftMenu.
2. Press the adjustable knobs to toggle option
menu between line one and line two.
3. Rotate the adjustable knobs to adjust the
corresponding parameters.
Function Keys - Programmable Keys
• F1 = Help (Enter Online Help / User Manual)
• F2 = Arrow (Annotation Arrow)
• F3 = Eject (Eject media)
• F4 = Spooler (Activates DICOM Job Spooler
screen)
• F5 = Reverse
• F6 -F12 Programmable
How to Program your programmable
keys
<Utility> - <Admin> - <Function Key>, then use the
drop down menu.
Choices for program Keys
• WorkSheet
•CWD
•3D
• LOGIQ View
• Compound
• ECG On/Off
•Set Home
• Text Overlay
• Grab Last
• Word Delete
Shortcut keys
• Ctrl + Alt + R: Restart the system
• Ctrl + E: Eject
