LOGIQ e Quick Guide Direction 5130174-100 Rev. 2 9
Control Panel Tour

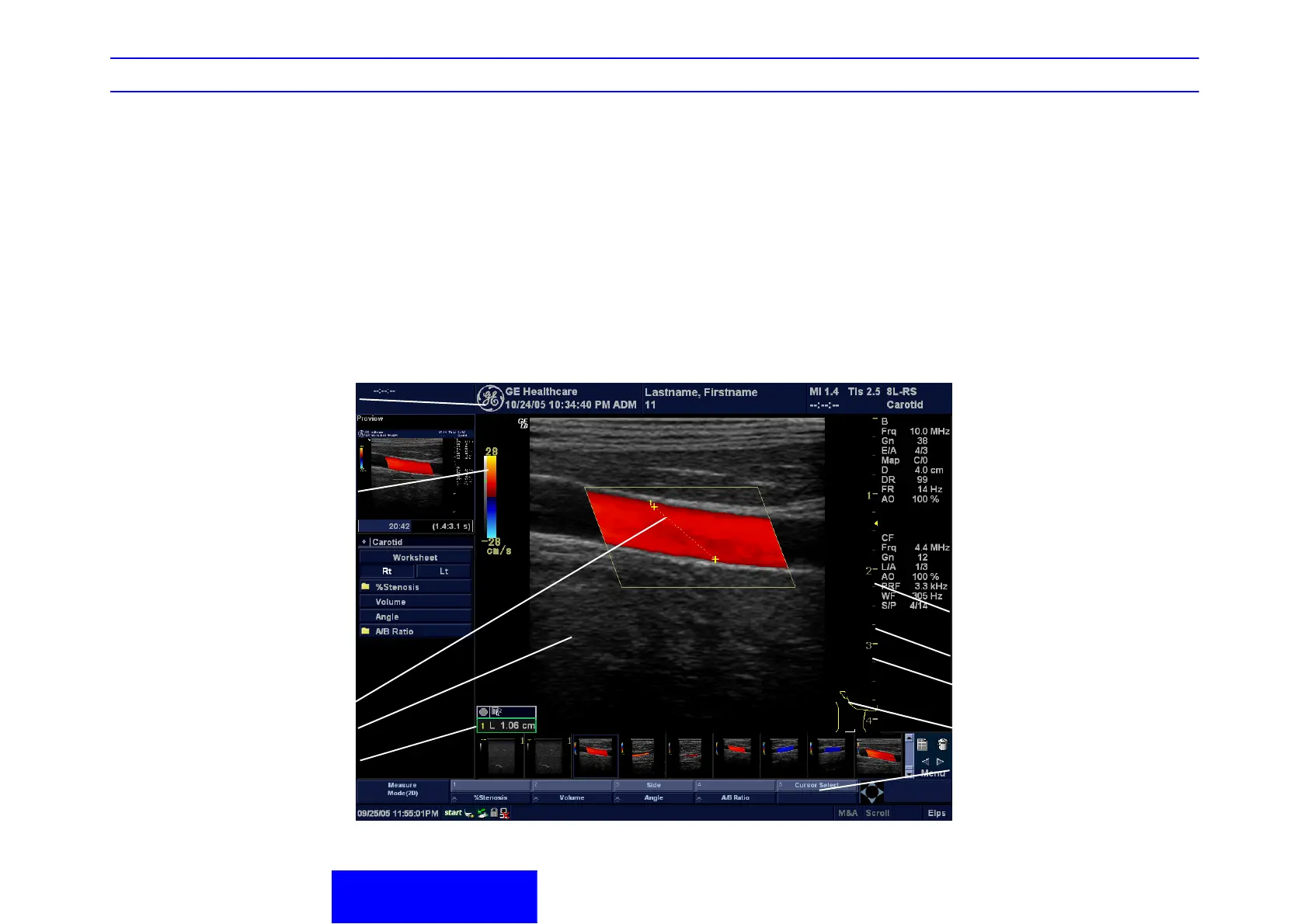

LOGIQ e Monitor Display Tour
1. Institution/Hospital Name, Date, Time, Operator
Identification, system status (real-time of
frozen).
2. Patient Name, Patient Identification.
3. Acoustic Output Readout.
4. GE Symbol: Probe Orientation Marker.
Coincides with the probe orientation marking on
the probe.
5. Image Preview.
6. Gray/Color Bar.
7. Cine Gauge.
8. Measurement Summary Window.
9. Image.
10. Measurement (not shown).
11. Results Window.
12. Probe Identifier. Exam Study.
13. Imaging Parameters by Mode (current mode
highlighted).
14. Focal Zone.
15. TGC (not shown on the image).
16. Body Pattern.
17. Depth Scale.
18. Soft Menu.
19. Caps Lock: On or Off.
20. Start Menu Icon.
21. Battery icon.
22. Card icon.
23. Trackball Functionality Status: Scroll,
M&A (Measurement and Analysis), Position,
Size, Scan Area Width and Tilt.
132
5
4
8
11
12
14
15
13
18
6
7
17
16
23
10
9
19
20
21
22
