IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
3-22 Section 3-6 - System Configuration
3-6-4-4 Connect peripherals (cont’d)
6.) Connecting S-Video cable to the system: S-Video O/P is available on rear panel.
7.) Connect the USB Memory stick to the system: The USB Memory stick must be connected to top
panel USB port or in any of the Rear panel USB Ports.
8.) Connecting the USB HDD to the system: The USB Harddisk can be properly connected to Rear
Panel USB ports.
9.) Connecting the DVR to the system: The S-Video signal, USB Cable & power cable can be
properly connected using the S-Video port,USB Ports & Power Port in the Rear panel.
To activate DVR assign DVR to any of the F6 to F12 keys in Utility>admin>functional key & again
Utility >System>peripherals select the respective DVR Model.Than press the respective funtion key
to record the Image

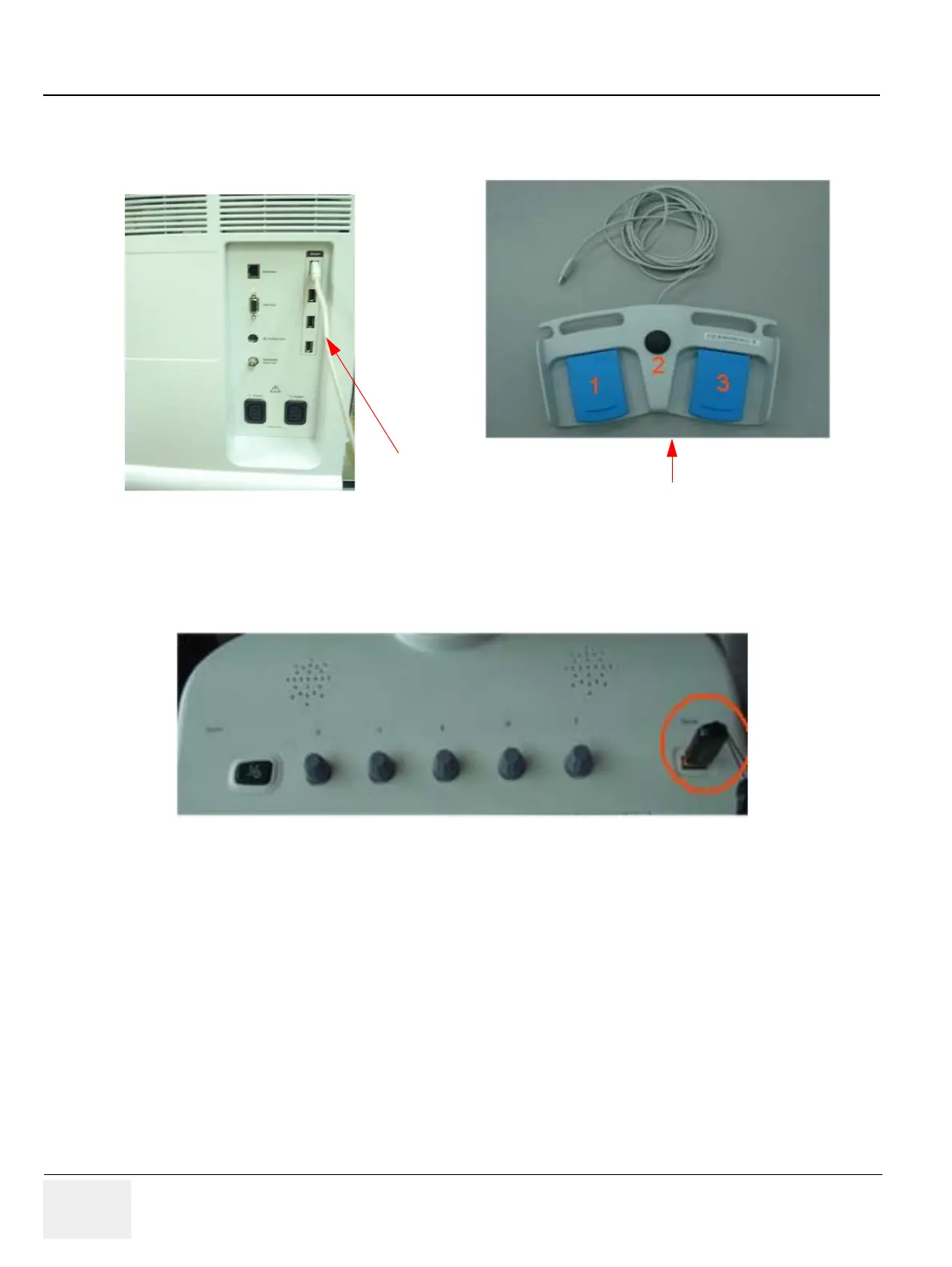

Figure 3-19 Connect Foot Switch to the system
Figure 3-20 USB Memory Connection
