Catalog
Number
Sensor
Rating,
Amps
Plug
Rating Breaker Frames
TR1B60 60
TR1B80 80 AKR30
TR1B100 150 100 AKR30H
TR1B125 125 Conversion Kits
TR1B150 150
TR2B100 100 SSD, SSF, SHD, SHF
TR2B150 200 150 TP82, THP82
TR2B200 200 TC82, THC82
TR225B100 100
TR225B150 225 150 Conversion Kits
TR225B225 225
TR4B150 150 SSD, SSF, SHD, SHF
TR4B200 200 AKR30, AKR30H
TR4B225 400 225 TP84, THP84
TR4B250 250 TC84, THC84
TR4B300 300 Conversion Kits
TR4B400 400
TR6B300 300
TR6B400 400
TR6B450 600 450 Conversion Kits
TR6B500 500
TR6B600 600
TR8B300 300
TR8B400 400 SSD, SSF, SHD, SHF
TR8B450 450 TP88, THP88
TR8B500 800 500 TC88, THC88
TR8B600 600 AKR30, AKR30H
TR8B700 700 AKR50S, AKR50H
TR8B800 800
TR10B400 400 SSD, SSF, SHD, SHF
TR10B600 600 TC1610, THC1610
TR10B800 1000 800 TP1610, THP1610
TR10B1000 1000 TC2510, THC2510
TP2510, THP2510
TR16B600 600 SSD, SSF, SHD, SHF
TR16B800 800 TC1610, THC1610
TR16B1000 1600 1000 AKR50H
TR16B1100 1100 TP1616, THP1616
TR16B1200 1200 Conversion Kits
TR16B1600 1600
TR20B750 750 SSD, SSF, SHD, SHF
TR20B800 800 TC2020, THC2020
TR20B1000 1000 TC2520, THC2520
TR20B1200 2000 1200 TP2020, THP2020
TR20B1500 1500 TP2520, THP2520
TR20B1600 1600 AKRT50H
TR20B2000 2000 Conversion Kits
Catalog
Number
Sensor
Rating,
Amps
Plug
Rating Breaker Frames
TR25B1600 1600 SSD, SSF, SFB
TR25B2000 2500 2000 SHD, SHF, SHB
TR25B2500 2500 TC2525, THC2525
TP2525, THP2525
TR30B1200
2
1200 SSD, SSF, SFB
TR30B1600
2
1600 SHD, SHF, SHB
TR30B2000 3000 2000 TC3030, THC3030
TR30B2500 2500 TP3030, THP3030
TR30B3000 3000 Conversion Kits
TR32B1200 1200
TR32B1600 3200 1600 AKR75, AKR75H
TR32B2400 2400 Conversion Kits
TR32B3200 3200
TR40B1600 1600 SSD, SSF, SHD, SHF
TR40B2000 2000 TC4040, THC4040
TR40B2500 4000 2500 TP4040, THP4040
TR40B3000 3000 AKR100
TR40B3600
1
3600 Conversion Kits
TR40B4000 4000
TR50B3200 3200
TR50B4000 5000 4000 AKR125
TR50B5000 5000
TRK4B3000 3000 ITE K4000
TRK4B3200 4000 3200 Conversion
TRK4B4000 4000 Kits
1
Not for use with Type AKR breakers.
2
Conversion kits only.

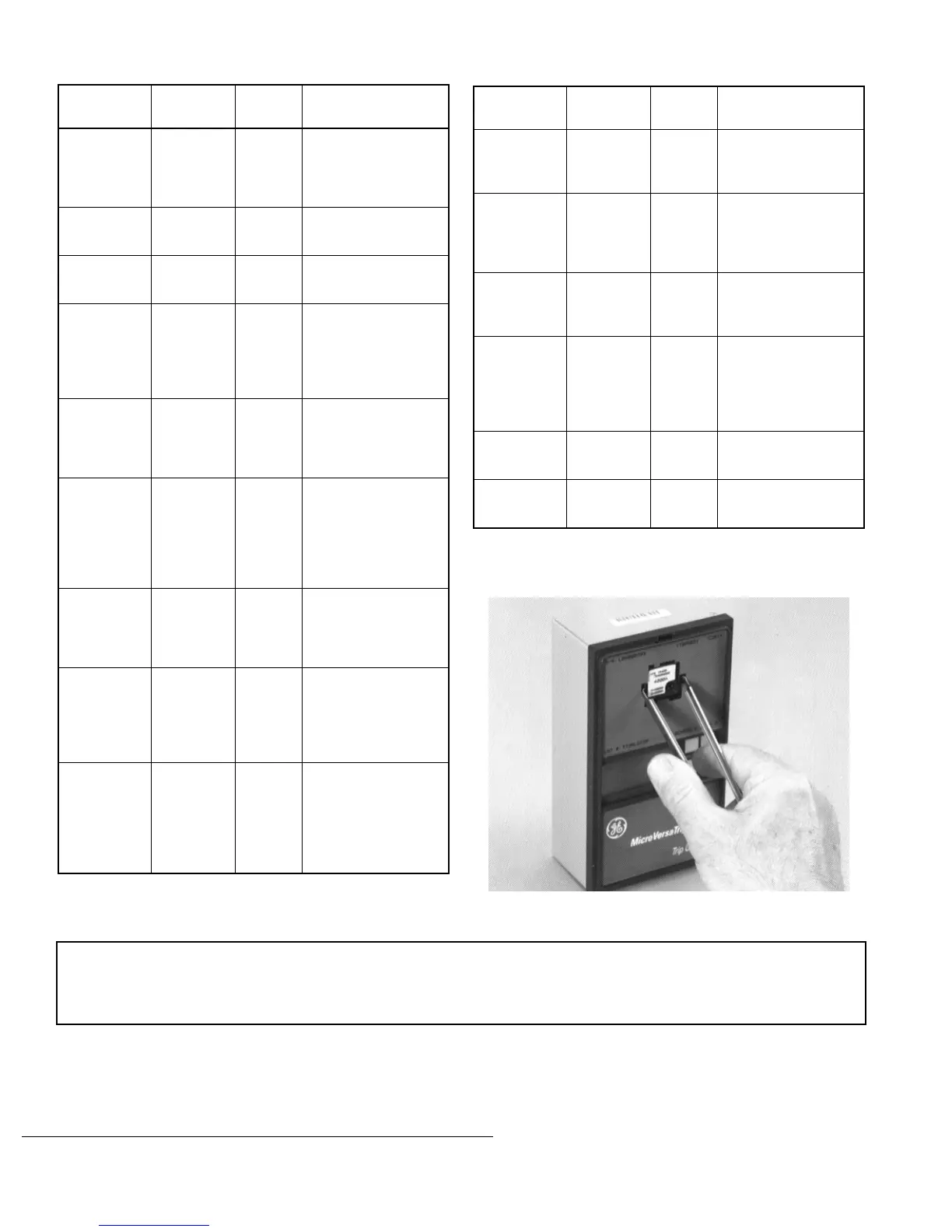

Table 1. Rating plug catalog numbers.
Figure 2. Rating Plug removal.
These instructions do not cover all details or variations in equipment nor do they provide for every possible contingency that
may be met in connection with installation, operation, or maintenance. Should further information be desired or should
particular problems arise that are not covered sufficiently for the purchaser’s purposes, the matter should be referred to your
local GE ED&C Sales Office.
g
GE Industrial Systems
General Electric Company
41 Woodford Ave., Plainville, CT 06062
GEH5933 R04 1298 © 1998 General Electric Company
