62
5/4/2012

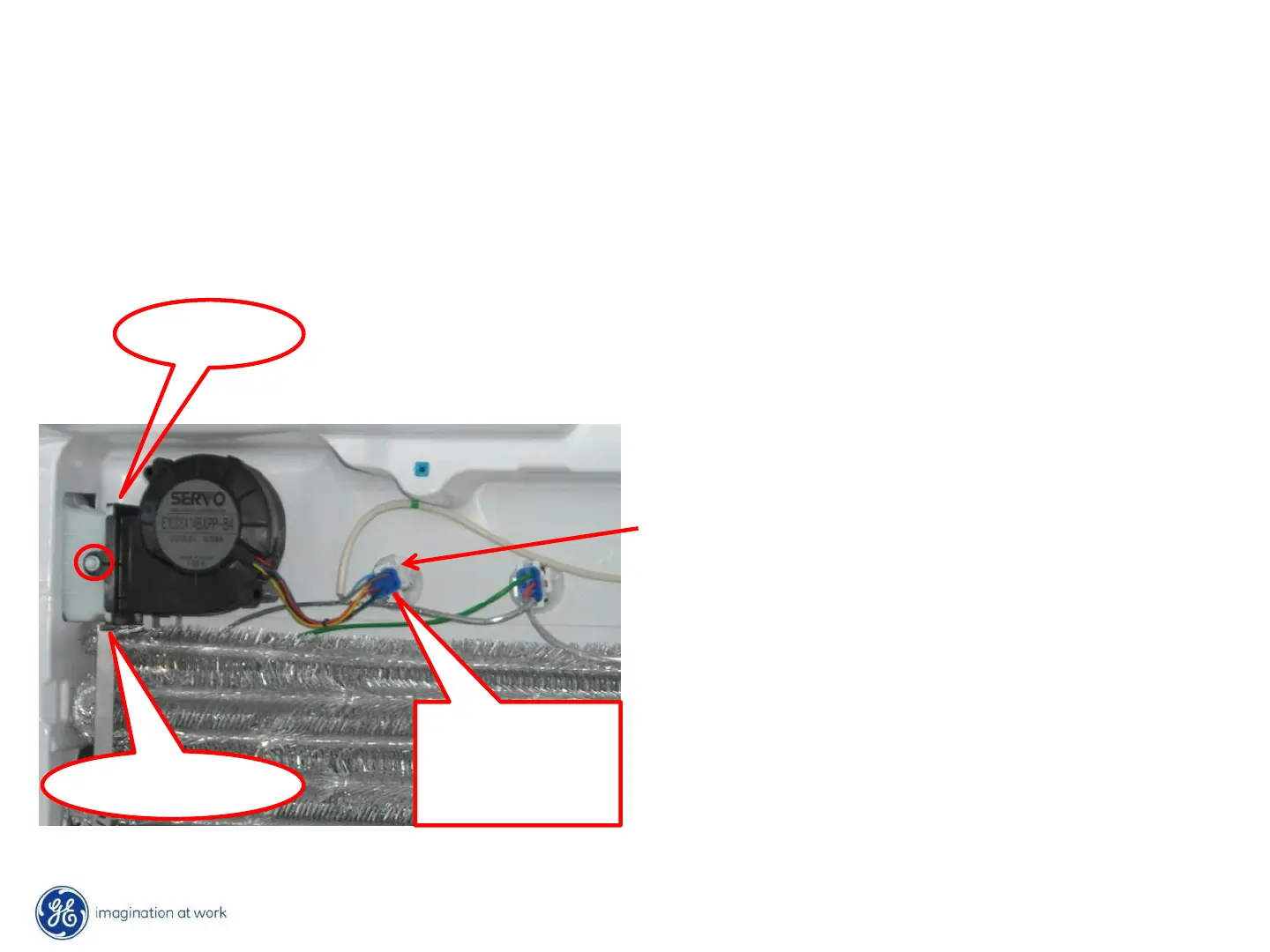

Ice Box Fan
Removal:
¾ Disconnect the electrical connector.
Note: This connector contains the
freezer evaporator thermistor
connections
¾ Remove the ¼” mounting screw.
¾ Gently flex the top or bottom tabs to
release the fan from the ice box air
supply duct.
Bottom tabs
Top tabs
1. LOW SPEED = 1500 RPM*
2. MEDIUM SPEED = 1700 RPM*
3. HIGH SPEED = 1800 RPM*
Note fan speed range is 1000 – 2500 RPM*
¾ The ice box fan is located at the top left rear of the freezer, above the evaporator.
¾ The ice box fan circulates air into the left fresh food door ice box via ductwork
foamed into the case.
¾ The fan has 3 possible speeds, depending on the ice box cooling temperature and
is controlled by the main board.
* Values are approximate and preliminary
FAN color code:
RED – 12vdc+
BLACK – 12 VDC-
YELLOW – PWM SPEED
BLUE – RPM FEEDBACK
