Ice Box Fan Removal

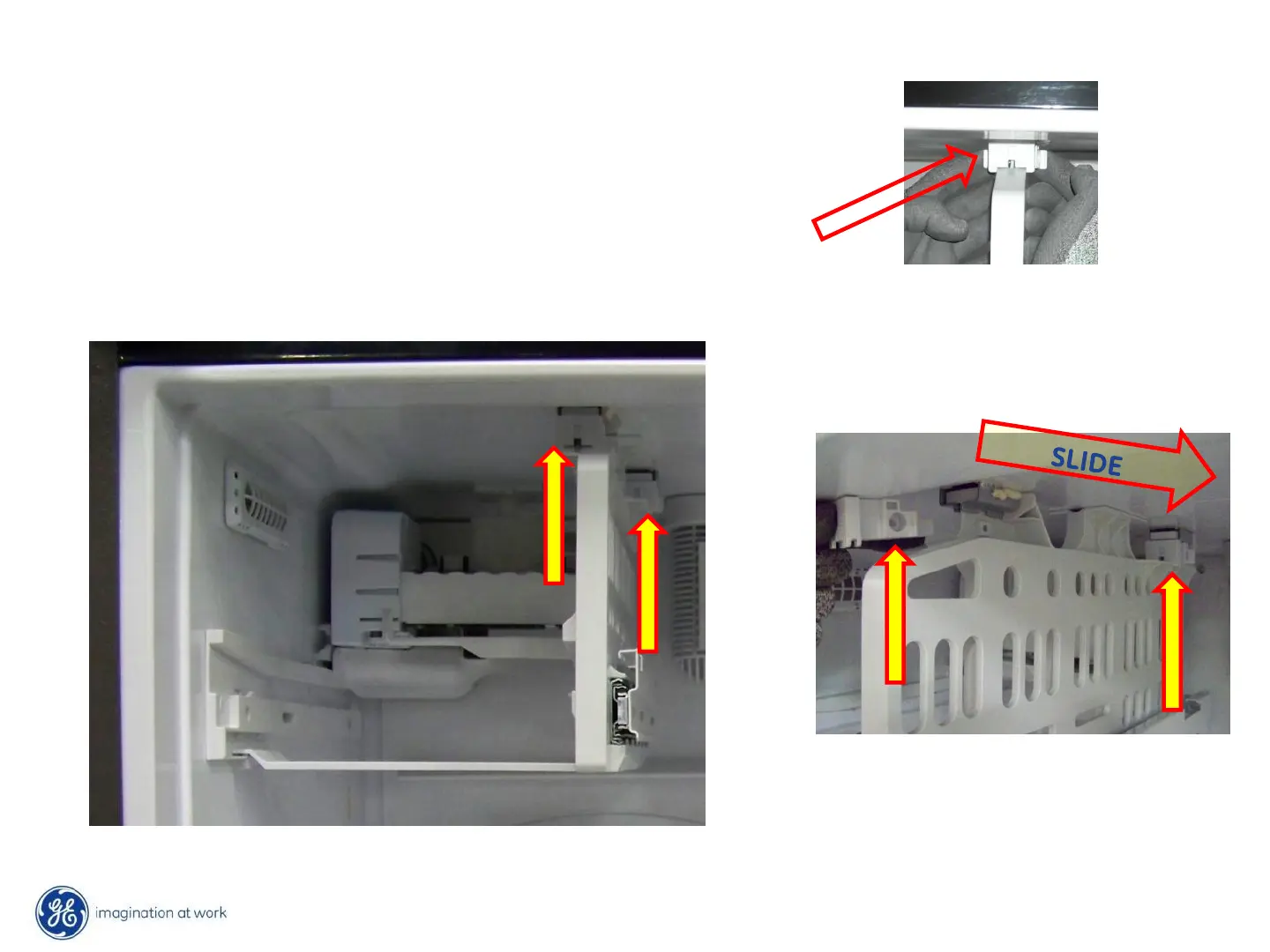

¾ The upper freezer compartment divider must be
removed to access the evaporator cover.
¾ Remove the 2 retainers by flexing them outward and
pulling toward the front to release.
¾ Slide the divider backward to disengage from the
retainer mounted to the ceiling.
GFE29- icemaker must be
removed (see icemaker removal)
To Next Page
