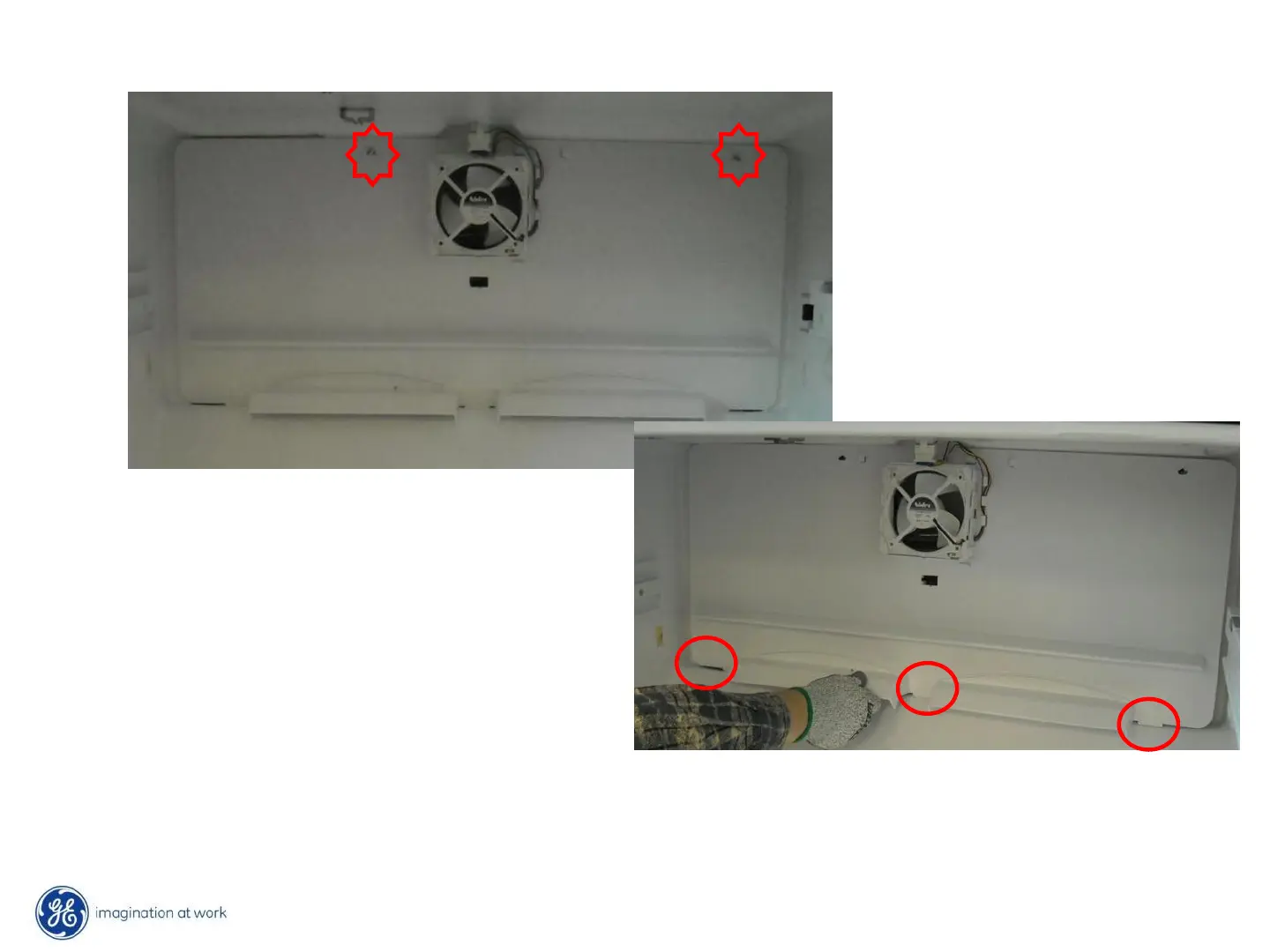

Evaporator Cover Removal
¾ Remove the 2 Phillips screws at the
top of the evaporator cover.
¾ Push the cover up to release the
tabs at the bottom, then pull the
bottom outward.
¾ Disconnect the fan connector.
NOTE: The freezer fan does not have to be removed from the cover
