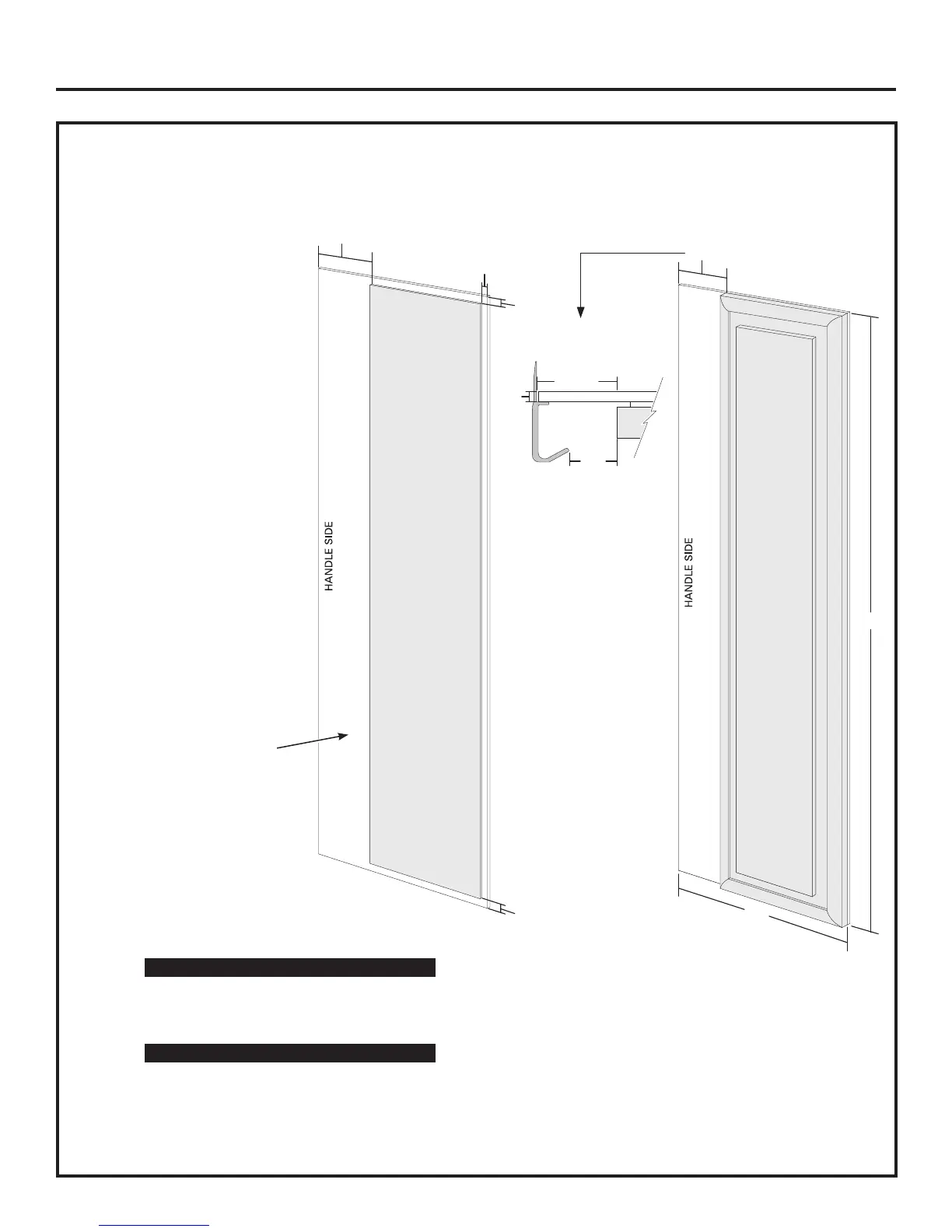

3/4” FULL-WIDTH OVERLAY CUSTOM PANELS WITH PRE-INSTALLED HANDLES
This panel design provides a nearly trimless appearance.
Assemble the spacer panel
onto the finished backer
panel. Allow 1/2” clearance
on the top, bottom and
hinge side. Allow 3-5/8” on
the handle side. Secure the
panels with glue. Be sure to
observe clearances shown
on all sides.
Secure the overlay
panel to the assembled
backer/spacer panel.
Use glue and screws.
Countersink screws
into the backer panel.
Installation Instructions
25
42” Models A B
1/4” Backer Panel 22-5/16” 67-7/8”
0.10” Spacer Panel 18-3/16” 66-7/8”
3/4” Overlay Panel 19-5/16” 68-1/8”
48” Models A B
1/4” Backer Panel 26-7/16” 67-7/8”
0.10” Spacer Panel 22-5/16” 66-7/8”
3/4” Overlay Panel 23-7/16” 68-1/8”
3-5/8"
1/2"
1/2"
1/2"
Fresh Food Panel
Spacer
Panel
Finished
Backer
Panel
