GE Profile 42

3-1/8" Min.
1/4"
Max.
Required for Optimal
Handle Clearance
3-1/8"
3-1/8"
5/16"
5/16"
A
B
A
B
A
B
2-1/2"

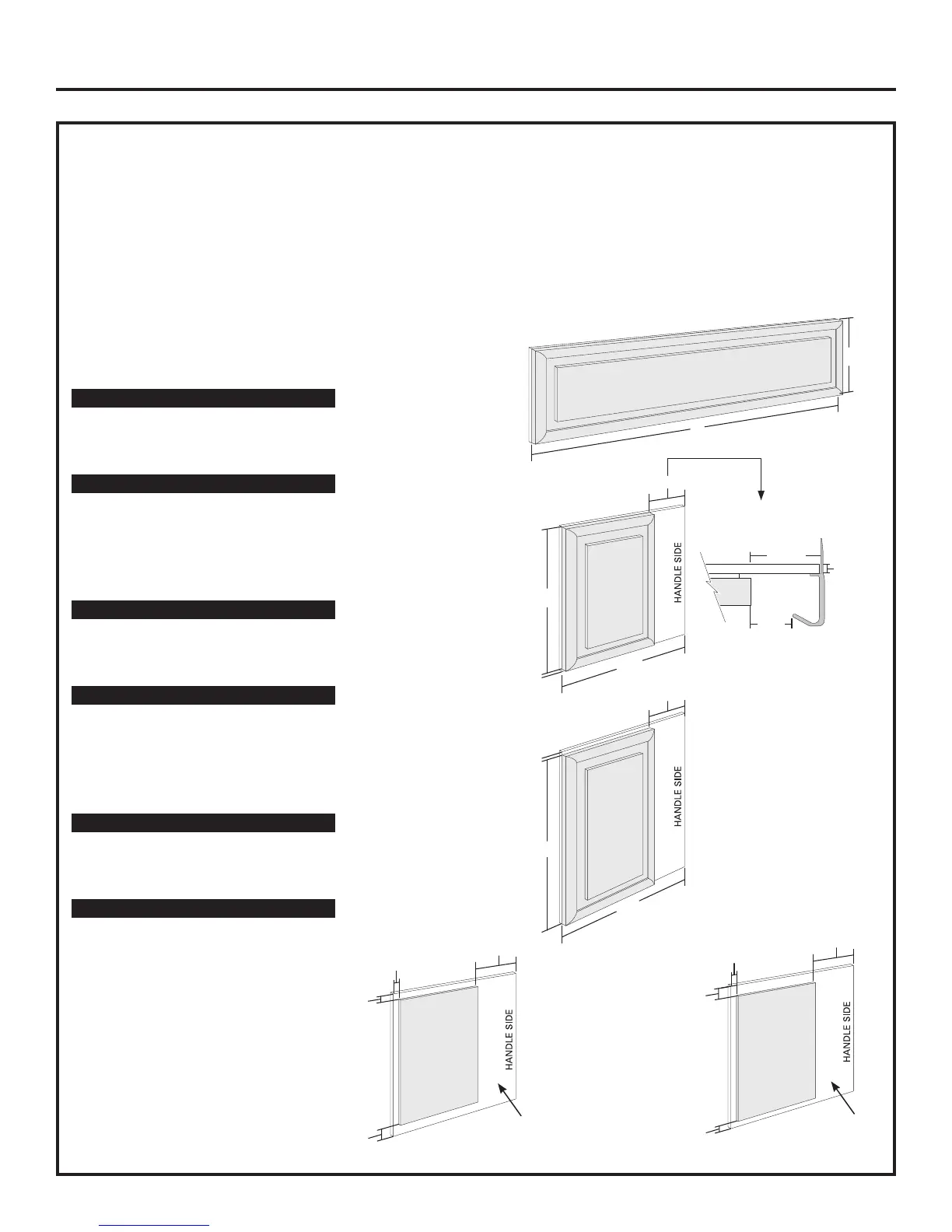

3/4” FULL-WIDTH OVERLAY CUSTOM PANELS WITH PRE-INSTALLED HANDLES
This panel design provides a nearly trimless appearance.
Assemble the spacer panel onto the backer panel. Allow 1/2” clearance on all four sides of the grille spacer
panel. Allow 1/2” clearance on the top and hinge side, 15/16” on the bottom and 3-5/8” on the handle side of
the upper freezer door panel. Allow 15/16” on the top, 1/2” clearance on the bottom and hinge side and 3-5/8”
on the handle side of the lower freezer door panel. Secure the panels with glue. Be sure to observe clearances
on all sides.
Secure the appearance panel to the assembled backer/spacer panel. Use glue
and screws. Countersink screws into the backer panel.
Grille Panel
Lower Freezer Panel
Upper Freezer Panel
Installation Instructions
26
42” Models A B
1/4” Backer Panel 39-15/16” 10-3/4”
0.10” Spacer Panel 38-15/16” 9-3/4”
3/4” Overlay Panel 40-3/16” 11”
48” Models A B
1/4” Backer Panel 45-15/16” 10-3/4”
0.10” Spacer Panel 44-15/16” 9-3/4”
3/4” Overlay Panel 46-3/16” 11”
42” Models A B
1/4” Backer Panel 16-7/16” 35-1/8”
0.10” Spacer Panel 12-5/16” 33-11/16”
3/4” Overlay Panel 13-7/16” 34-15/16”
48” Models A B
1/4” Backer Panel 18-7/16” 35-1/8”
0.10” Spacer Panel 14-5/16” 33-11/16”
3/4” Overlay Panel 15-7/16” 34-15/16”
42” Models A B
1/4” Backer Panel 16-7/16” 17-13/16”
0.10” Spacer Panel 12-5/16” 16-3/8”
3/4” Overlay Panel 13-7/16” 17-5/8”
48” Models A B
1/4” Backer Panel 18-7/16” 17-13/16”
0.10” Spacer Panel 14-5/16” 16-3/8”
3/4” Overlay Panel 15-7/16” 17-5/8”
3-5/8"
15/16"
1/2"
1/2"
Spacer
Panel
Finished
Backer Panel
3-5/8"
1/2"
15/16"
1/2"
Spacer
Panel
Finished
Backer Panel
Upper Freezer Panel
Spacer Assembly
Lower Freezer Panel
Spacer Assembly
