Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
44
Installation of the range.
Electrical Power Supply Requirements

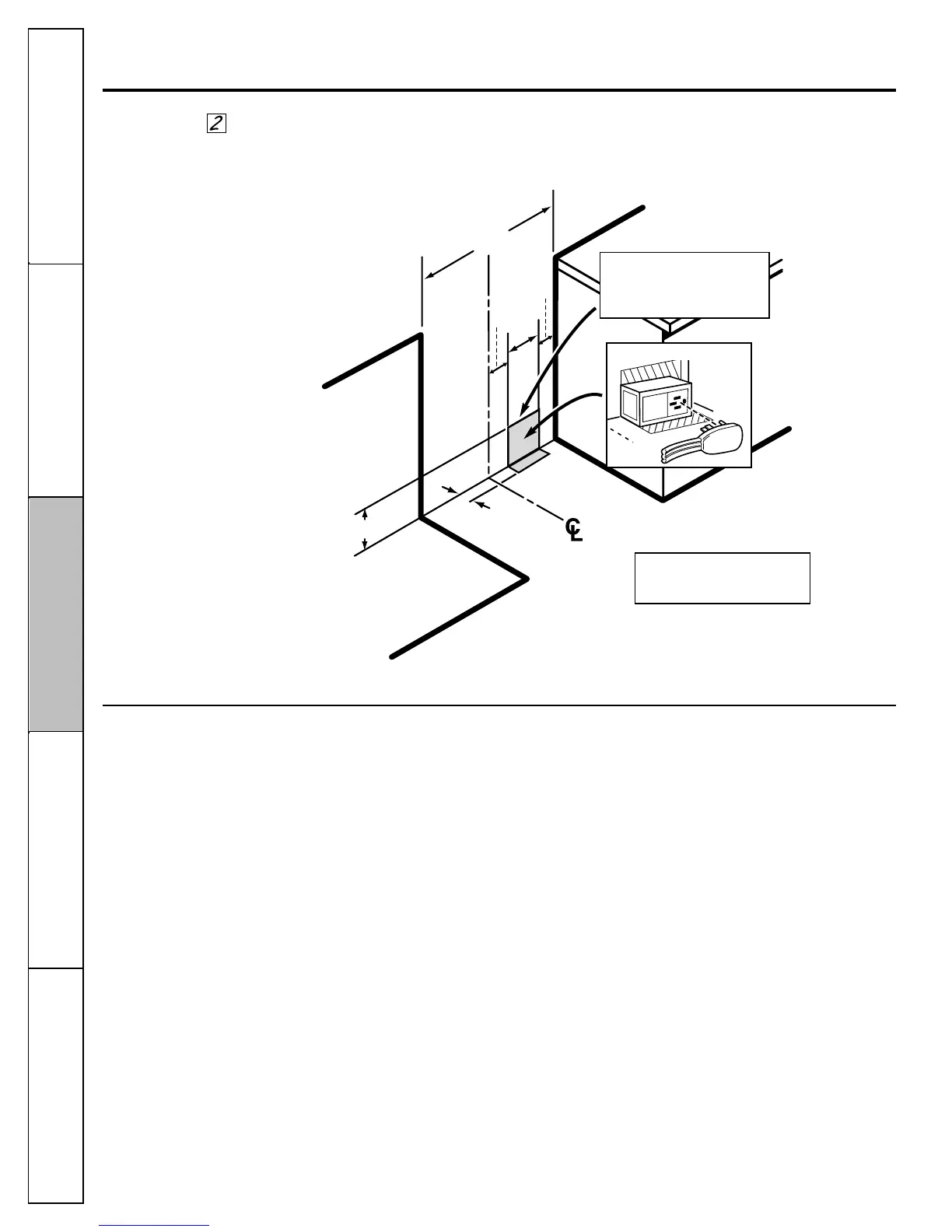

Recommended Electrical Outlet Locations
Recommended acceptable
electrical outlet area. Orient
the electrical receptacle so the
length is parallel to the floor.
Provide Proper Electrical Supply
These ranges must be supplied with 208/240 volt,
60 Hz., and connected to an individual, properly
grounded circuit protected by a circuit breaker
or time-delay fuse (40 amp). The receptacle must
be NEMA 14-50R to accept the 4-prong plug
supplied with the range.
If the electrical service provided does not meet
the above specifications, it is recommended that
a licensed electrician install an approved outlet.
■ Locate the electric supply as illustrated.
7
1
⁄2”
8”
4”
30”
3”
Product is shipped with 4-prong
plug. Recommended outlet is a
NEMA 14-50R receptacle.
2
1
⁄4”
Wall Mounted
NOTE: Make electrical connections
on the right side of the cutout opening.
