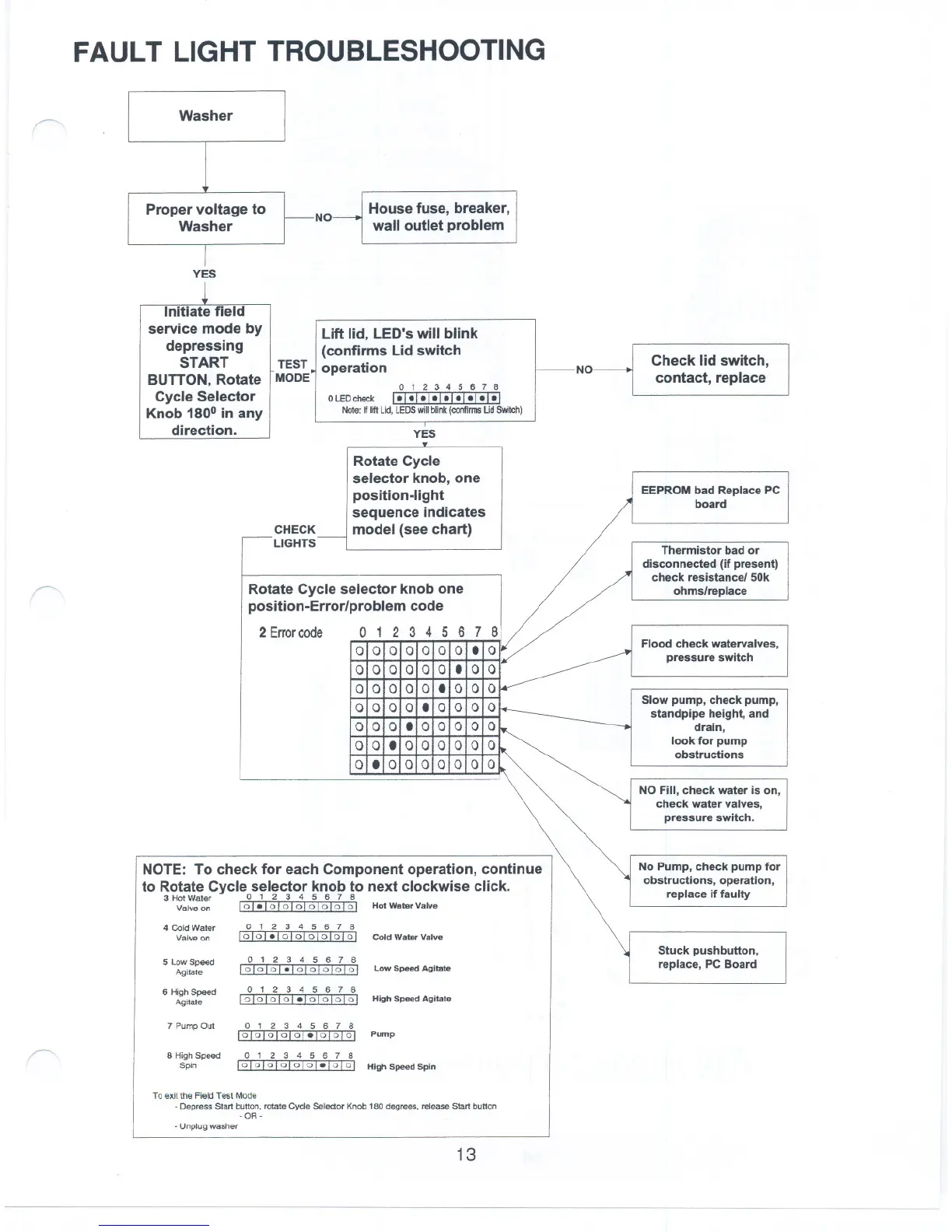

FAULT LIGHT TROUBLESHOOTING
Washer
Proper voltage to
Washer
House fuse, breaker,
wall outlet problem
NO
YES
Initiate field
service mode by
depressing
START
BUTTON,Rotate
Cycle Selector
Knob 1800 in any
direction.
TEST
MODE
Lift lid, LED's will blink
(confirms Lid switch
operation
o 1 234 567 B
OLEOchedc 1_1_'_'_'_1_'_'_1_1
Note:"liftLid, LEOSwil blink (confirms Ud Switch)
YES
CHECK
LIGHTS
Rotate Cycle
selector knob, one
position-light
sequence indicates
model (see chart)
Rotate Cycle selector knob one
position-Error/problem code
2Errorcode
o 1 234 5 6 7 8
o 0 0 000 0 . 0
o 0 0 0 0 0 . 0 0
o 0 0 0 0 . 0 0 0
o 0 0 0 . 0 0 0 0
o 0 0 .00 0 0 0
o 0 . 000 0 0 0
o . 0 0 0 0 0 Q 0
NO
NOTE: To check for each Component operation, continue
to Rotate Cycle selector knob to next clockwise click.
3 _Waler 0 1 2 3 4 5 6 7 B
Valve on 101-' 01 01 01 01 01 01 01 HotW.18rValv.
4 Cold Water 0 1 2 3 4 5 6 7 8
Valve on 10101-1010101010101 CoIdWalolrValve
5 low Speed
Agitate
o 1 2 3 4 5 6 7 8
1010101 -10101010101 lowSpeedAg118te
o 1 234 567 8
101010101_101010101 High Speed Agitate
6 High Speed
Agitate
o 1 234 5 678
10101010101_1010101 Pump
8HighSpeed 012345678
Spin 1010101010101-10101 High Speed SpIn
7 Pump Out
To exil the Field Test Mode
. Depress Start bullon. rotate Cycle Selector Knob 180 degrees. release Start bullon
.OR.
. Unplug washer
13
Check lid switch,
contact, replace
EEPROM bad Replace PC
board
Thermistor bad or
disconnected (if present)
check resistance/
50k
ohms/replace
Flood check watervalves,
pressure switch
Slow pump, check pump,
standpipe height, and
drain,
look for pump
obstructions
NO Fill, check water is on,
check water valves,
pressure switch.
No Pump, check pump for
obstructions, operation,
replace if faulty
Stuck pushbutton,
replace, PC Board
To Next Page
