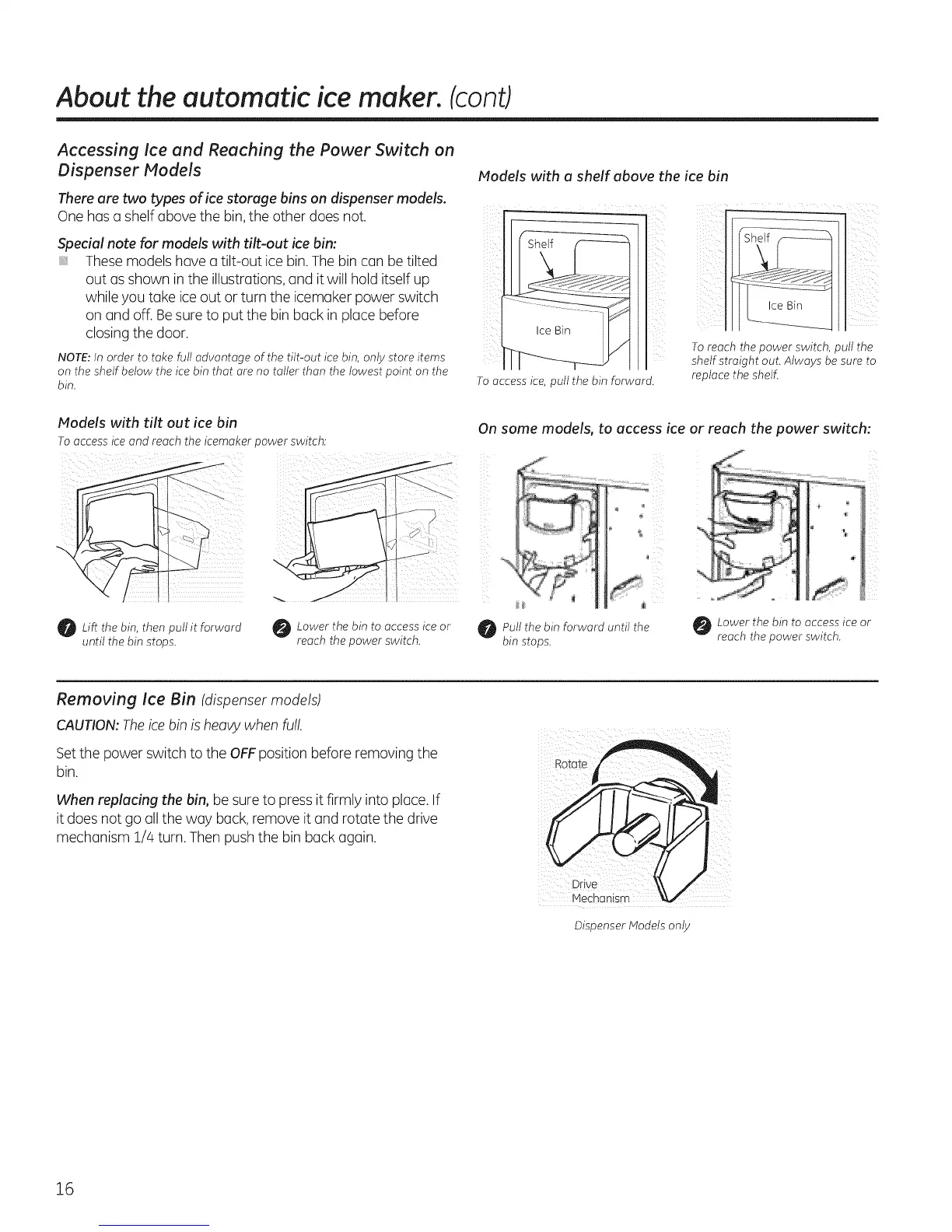

About the automatic ice maker. (cant)
Accessing Ice and Reaching the Power Switch on
Dispenser Models
There are two types of ice storage bins on dispenser models.
One has a shelf above the bin,the other does not.
Special note for models with tilt-out ice bin:
These models have a tilt-out ice bin. The bin can be tilted
out as shown in the illustrations, and it willhold itself up
while you take ice out or turn the icemaker power switch
on and off. Be sure to put the bin back in place before
closing the door.
NOTE: In order to take full advantage of the tilt-out ice bin, only store items
on the shelf below the ice bin that are no taller than the lowest point on the
bin.
Models with a shelf above the ice bin
i¸
z
To access ice, pull the bin forward.
i ill
!ii
......... -- .......... i
iiiii_
To reach the power switch, pull the
shelf straight out. Always be sure to
replace the shel_
Models with tilt out ice bin
To access ice and reach the icemaker power switch:
On some models, to access
O Lift the bin, then it forward
pull
until the bin stops.
O Lower the bin to access ice or
reach the power switch.
O Pull the bin forward until the
bin stops.
ice or reach the power switch:
O Lower the bin to access ice or
reach the power switch.
Removing Ice Bin (dispenser models)
CAUTION: The ice bin is heavy when full.
Set the power switch to the OFFposition before removing the
bin.
When replacing the bin, be sure to press it firmly into place, If
it does not go all the way back, remove it and rotate the drive
mechanism !//4 turn. Then push the bin back again.
Rotate
Drive
Mechanism
Dispenser Models only
16
