STEP 11 INSTALL DUCT COVERS
IMPORTANT: Two people are required to install
the duct covers.
NOTE: If you are installing this hood for recirculating
operation, place the duct covers onto the hood with
the venting slots at the top. If the hood is vented
to the outside, the holes should be positioned
on the bottom.
• Remove the protective film from all duct covers.

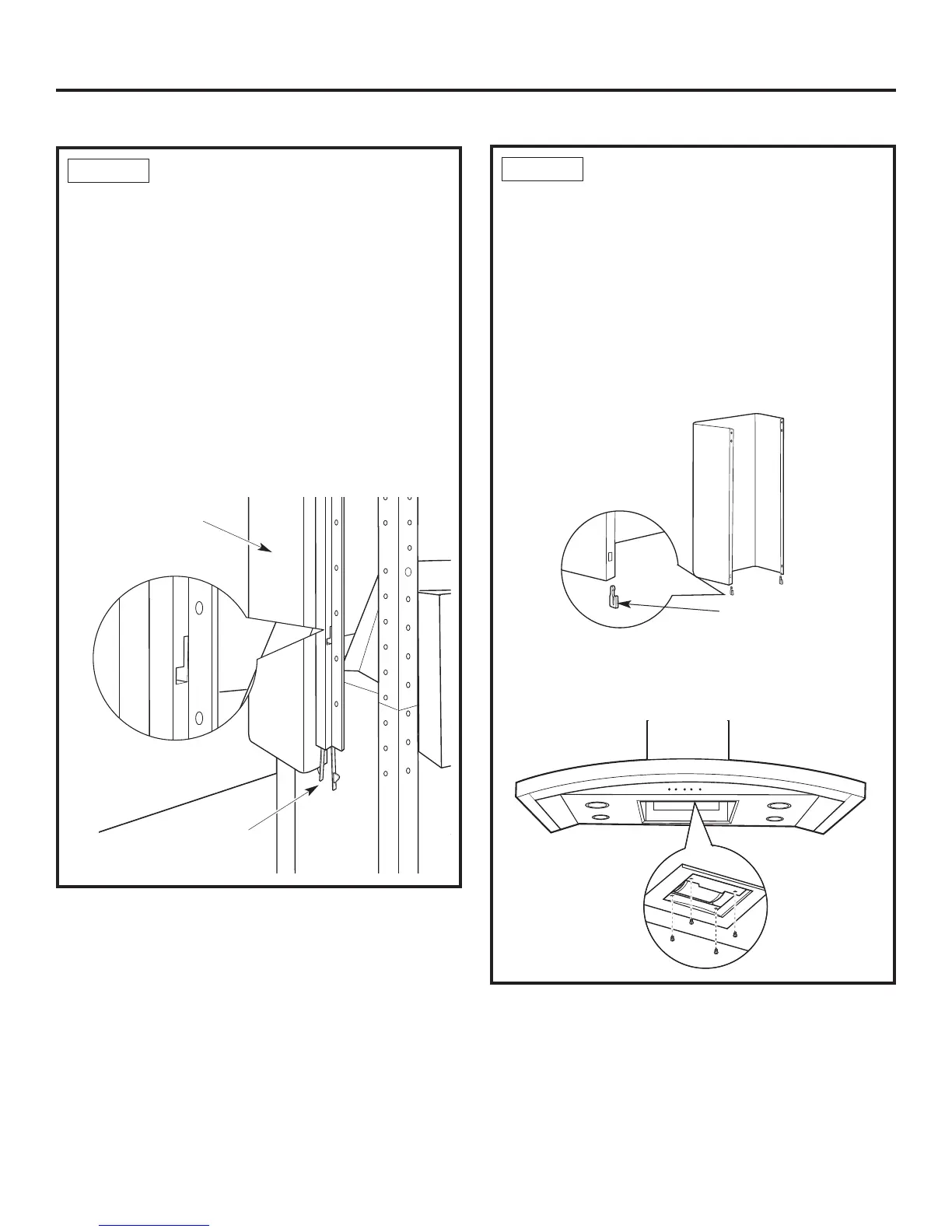

• Place one upper duct cover over the rear of
the support assembly. The tabs on the edges
of the duct cover will slide into a notch on the duct
cover support. When all 6 tabs on the duct cover
are in the notches on both of the duct cover
supports, slide the duct cover up so it sits on
the duct cover support spring clip.
Left duct
cover
Duct cover
support spring clip
STEP 11 INSTALL DUCT COVERS (cont.)
• Place a duct cover clip onto the bottom of the rear
lower duct cover locking the clip into place.
Repeat on the other side.
• Lower the duct cover into the recess on the hood.
• Place the front lower duct cover into the recess of
the hood locking it onto the duct cover clip on the
rear cover.
• Place a duct cover clip on each side where
the front and rear duct covers meet. This will hold
the rear and front covers together.
Duct cover clip
• Using screws provided, secure the lower duct
covers to the hood assembly from the underside
of the hood.
