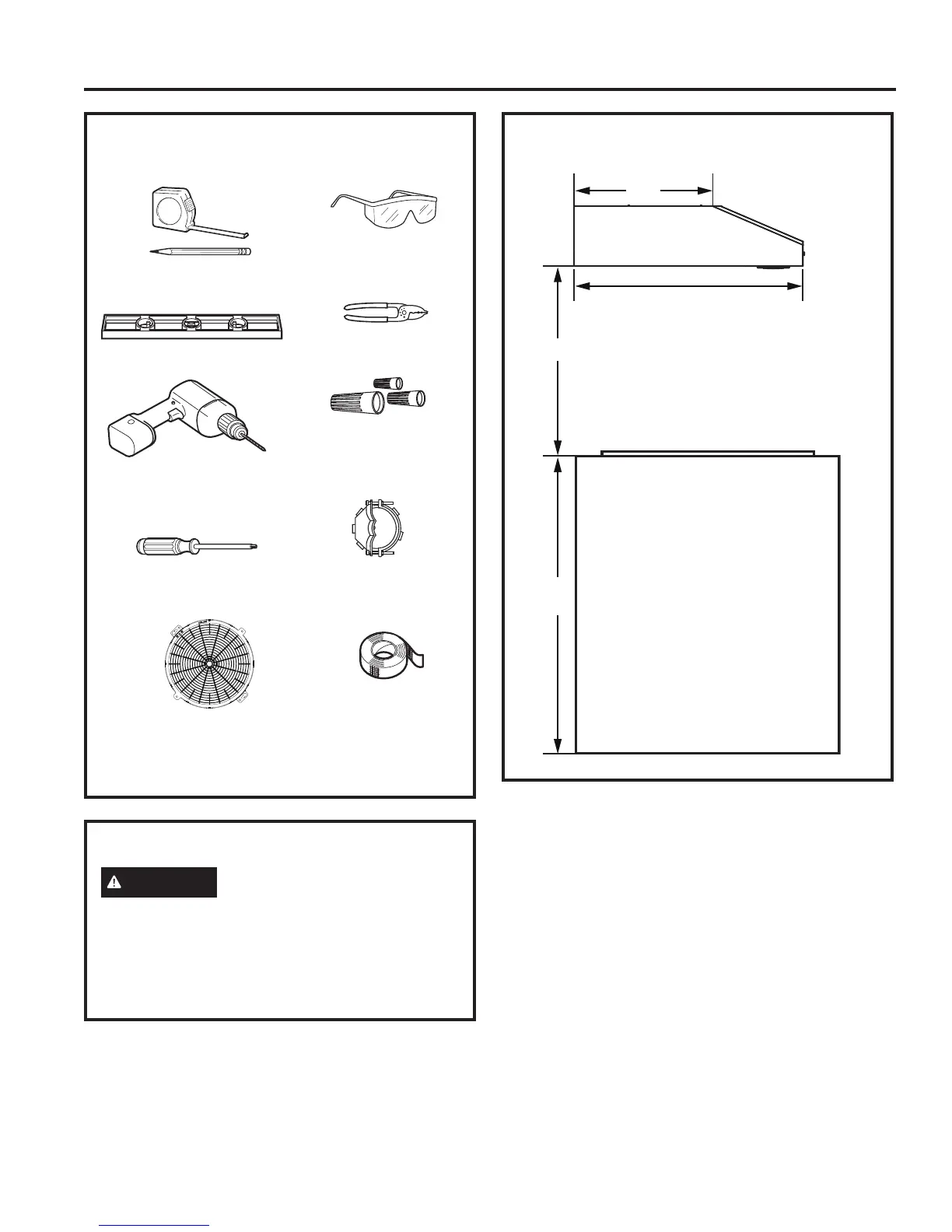

INSTALLATION PREPARATION
REMOVE THE PACKAGING
CAUTION
Wear gloves to protect against
sharp edges.
Remove the hardware bag, literature package and
other boxed parts.
Remove and properly discard the protective plastic
wrapping and other packaging materials.
TOOLS AND MATERIALS
REQUIRED
(NOT SUPPLIED)
Wire cutter/stripper
Spirit level
Aluminized
Duct tape
Torx 10, 15, 20
driver
Charcoal Filter (required
for some models in
recirculation mode)
Safety glasses
Strain relief for
junction box
Electric drill, #2 Phillips,
flat head, and
9
»32" drill bit
UL listed wire nuts
Pencil and tape measure
Installation Preparation
1" = 2.5 cm; 1' = 0.3 m
INSTALLATION DIMENSIONS
12"
X
X = Distance from hood to cooktop
(varies depending on installation)
Required Min. = 24"
Recommended Max. = 30"
34"-36"
Typical
