INSTALLATION TYPES (Choose A, B or C)
This oven is designed for adaptation to the following three
types of ventilation:

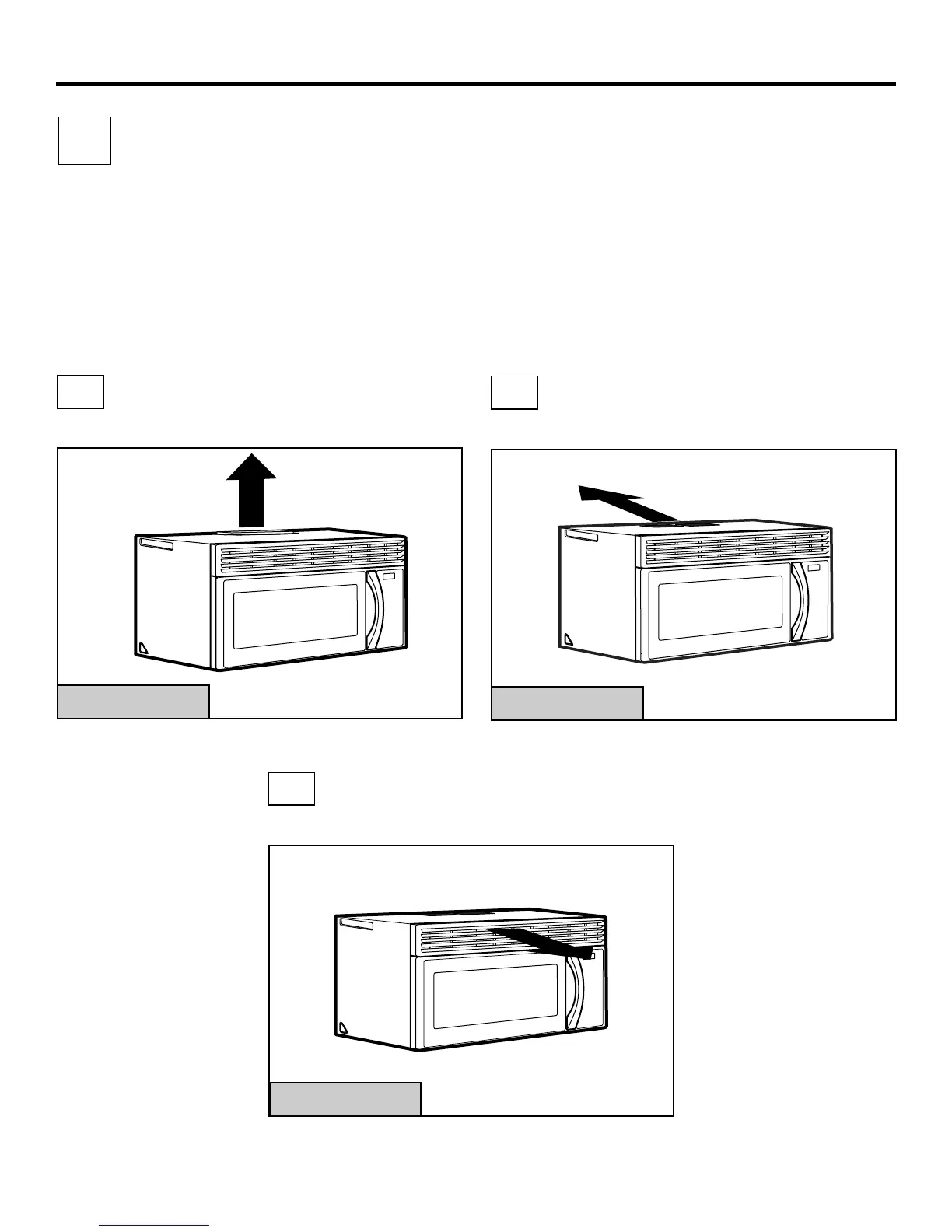

A. Outside Top Exhaust (Vertical Duct)
B. Outside Back Exhaust (Horizontal Duct)
C. Recirculating (Non-Vented Ductless)
NOTE: This oven is shipped assembled for Outside Top
Exhaust (except for non-vented models). Select the type
of ventilation required for your installation and proceed
to that section.
OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
RECIRCULATING
(NON-VENTED DUCTLESS)
See page 12
See page 15
See page 19
On models shipped for
non-vented exhaust, a
disposable charcoal filter is
included with the oven and
needs to be installed to help
remove smoke and odors.
On models shipped for
outside top exhaust, a
Charcoal Filter Accessory Kit
is required for the non-vented
exhaust. (See your Owner’s
Manual for the kit number.)
Installation Instructions
2
B
C
