Attach the exhaust adaptor to the back of the
wall plate by sliding it into the guides at the top
center of the back of the plate.

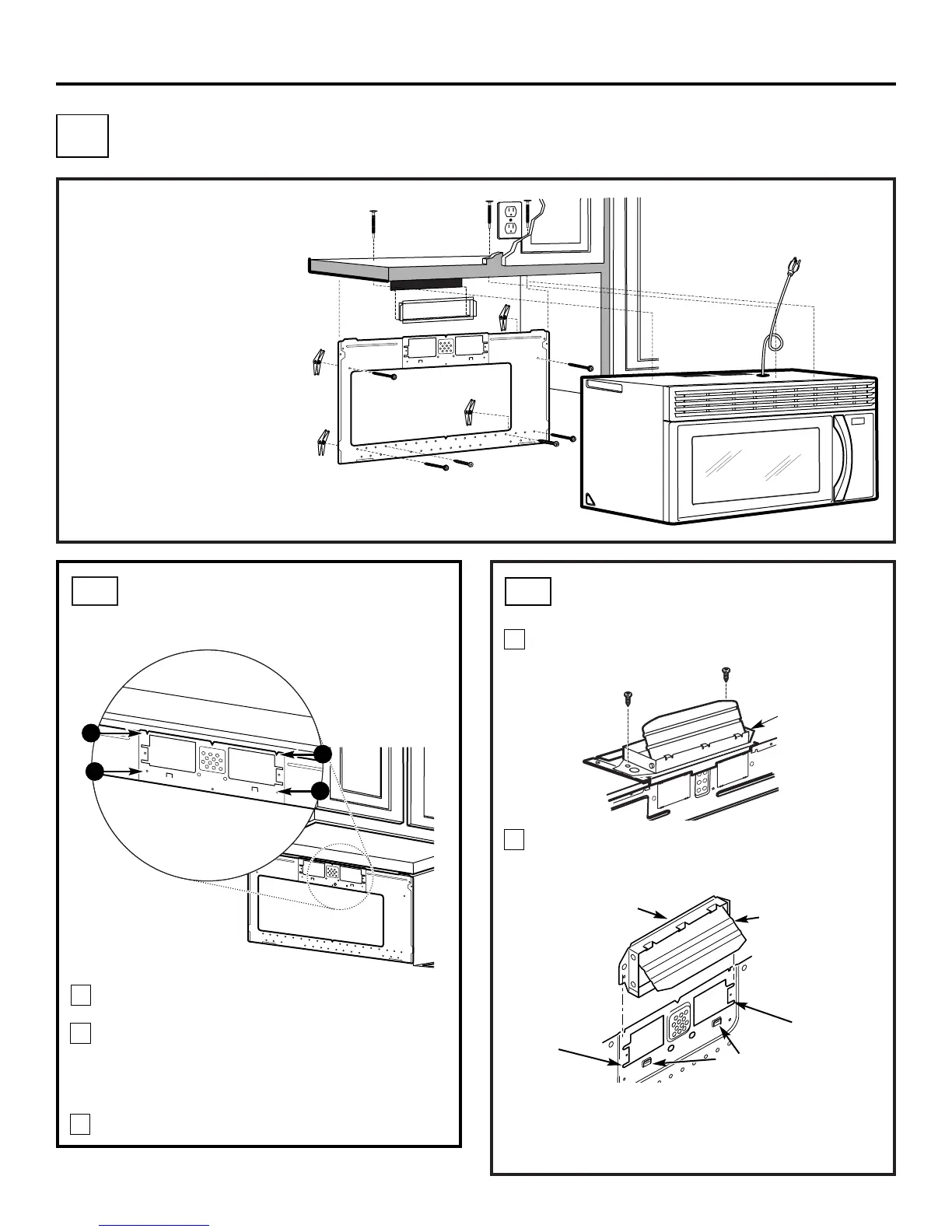

OUTSIDE BACK EXHAUST (Horizontal Duct)
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
B1.
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Exhaust Adaptor to
Wall Plate
B3. Attach Mounting Plate
to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Oven
Installation Instructions
B
Place the mounting plate against the rear wall and
align it with the holes drilled earlier.
Using a pencil, put dots through holes/notches F,
G, H and I (see above illustration). Remove the
mounting plate and draw lines extending through
the points. This will give the location and size of the
box cutout for the rear wall duct.
Use a saw (saber or keyhole) to cut out the opening.
F
I
H
G
15
3
2
1
Unscrew and remove the exhaust adaptor
assembly from the top of the oven.
1
2
Slide exhaust
adaptor into
guides on
wall plate.
Exhaust Adaptor
Damper
(hinge side up)
Locking
Tabs
Guide
ATTACH THE EXHAUST
ADAPTOR TO THE WALL PLATE
B2.
Guide
Push in securely until it is in the lower locking
tabs. Take care to assure the damper hinge is
installed so that it is at the top and that the
damper swings freely.
Exhaust
Adaptor
To Next Page
