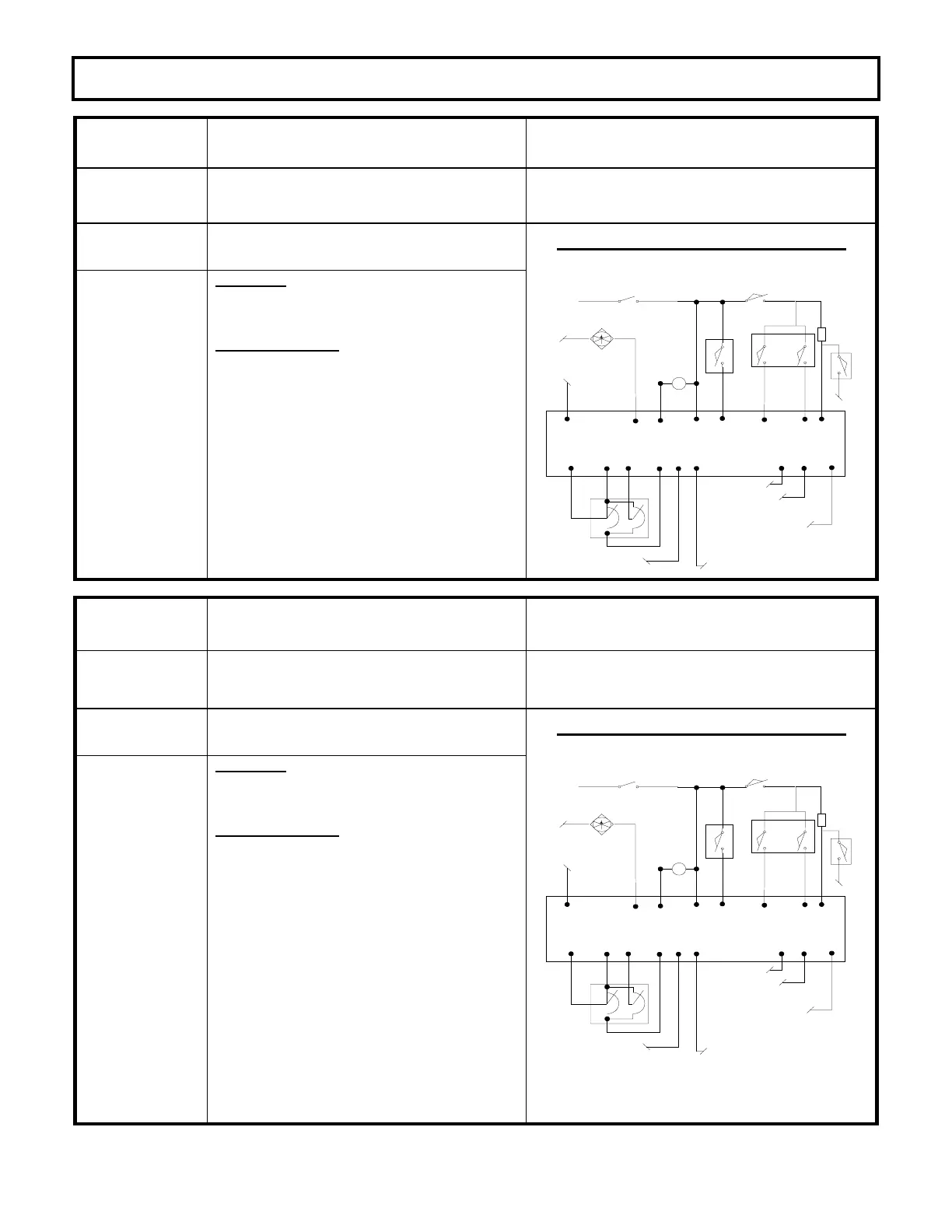

DIAGNOSTIC STATUS CODES
SX TRANSISTOR CONTROL Page 23
Revised May 2003
TRACTION
STATUS CODE
DESCRIPTION OF STATUS CAUSE OF STATUS INDICATION
-02
Standard truck configuration where the
direction is set by accelerator volts –
forward direction selected on power up.
This status code will be displayed when voltage
at P7 is less than 1.9V.
MEMORY RECALL
NO
CORRECTIVE ACTIONS TROUBLE-SHOOTING DIAGRAM
Circuits valid
for
Traction
Controller
SYMPTOM
Control will not operate because of Static Return
to Off (SRO) lock out.
POSSIBLE CAUSE
Accelerator calibration is incorrect and it must
be recalibrated for a new accelerator pot
installation.
· Repeat the accelerator pot calibration routine
outlined in this operating manual
The voltage at P9 is less than 4.2V.
· Measure the accelerator pot to verify that it
reads above 3K ohms. If not, replace the
accelerator pot.
Defective control.
· Replace the controller unit.
BDI INTERRUPT TO JOY
STICK CONTROLLER
*
TRACTION CONTROL PLUG PL-2
P10
P1
P7
P13
P9
ACCEL
SWITCH
P8
P20
TEMPERATURE INPUT FROM
PUMP CONTROL; OPEN INPUT
OR VOLTAGE > 3V = BDI
SIGNAL DISABLED
P14
TEMPERATURE SENSOR
INPUT FROM TRACTION
MOTOR
TACH SIGNAL
+12V TACH
P23P22
KEY SWITCH
*
DIRECT
SWITCH
P6
BRAKE SWITCH
*
L
P17 P2
*
SEAT SWITCH
P4 P5
*
FWD
REV
*
P18
*
24V
FAN
ENABLE
FAN
P21
NEG
PARK BRAKE SWITCH
*
2.2K
2W
TRACTION
STATUS CODE
DESCRIPTION OF STATUS CAUSE OF STATUS INDICATION
-02
Optional truck configuration with directional
switch input - forward directional switch is
closed on initial power up.
This status code will be displayed when P4 is
greater than 60% of battery voltage at initial key
switch on.
MEMORY RECALL
NO
CORRECTIVE ACTIONS TROUBLE-SHOOTING DIAGRAM
Circuits valid
for
Traction
Controller
SYMPTOM
Control will not operate because of Static Return
to Off (SRO) lock out.
POSSIBLE CAUSE
Forward directional switch is closed on initial
start up (i.e. closure of battery, key switch or
brake switch).
· Return directional switch lever to neutral and
then return lever to forward position.
Forward directional switch is welded closed or
mis-adjusted to be held closed.
· Replace or adjust directional switch to insure
that it opens when the directional switch is
returned to neutral.
Short circuit between B+ and P4.
· Disconnect the wire from P4 and check for
positive voltage. Correct source of voltage.
Defective control. Replace the controller unit.
BDI INTERRUPT TO JOY
STICK CONTROLLER
*
TRACTION CONTROL PLUG PL-2
P10
P1
P7
P13
P9
ACCEL
SWITCH
P8
P20
TEMPERATURE INPUT FROM
PUMP CONTROL; OPEN INPUT
OR VOLTAGE > 3V = BDI
SIGNAL DISABLED
P14
TEMPERATURE SENSOR
INPUT FROM TRACTION
MOTOR
TACH SIGNAL
+12V TACH
P23P22
KEY SWITCH
*
DIRECT
SWITCH
P6
BRAKE SWITCH
*
L
P17 P2
*
SEAT SWITCH
P4 P5
*
FWD
REV
*
P18
*
24V
FAN
ENABLE
FAN
P21
NEG
PARK BRAKE SWITCH
*
2.2K
2W
OPTIONAL
STANDARD
