GE UUC112WC Series - Uuc124 Wc*; Uuc130 Wc; Uuc136 Wc

CONNECT SERIES SERVICE MANUAL
5
ENGLISH

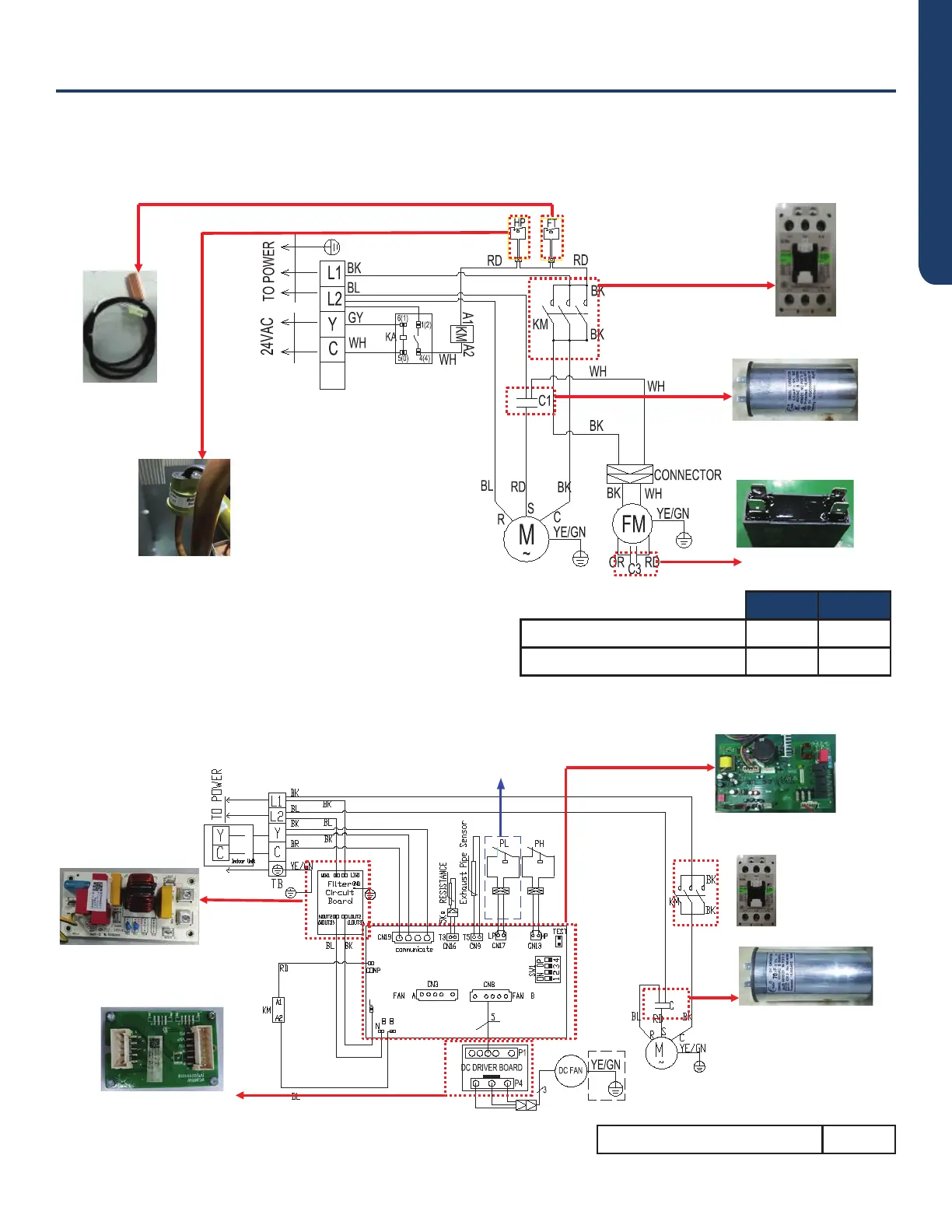

Wiring Diagrams
UUC124WC*/ UUC130WC*
FT(Discharge
Temp. Switch)
Contactor
High Pressure Switch
Compressor Capacitor
Fan Capacitor
UUC136WC*
Compressor Capacitor (C1) 70
µF
Main Board
Fan Driver Board
Filter Board
Compressor Capacitor
Contactor
24K 30K
Fan Capacitor (C3) 5
µF 5µF
Compressor Capacitor (C1) 40µF 55µF
Low pressure switch not
available in 36K model.
