CONNECT SERIES SERVICE MANUAL
4
ENGLISH

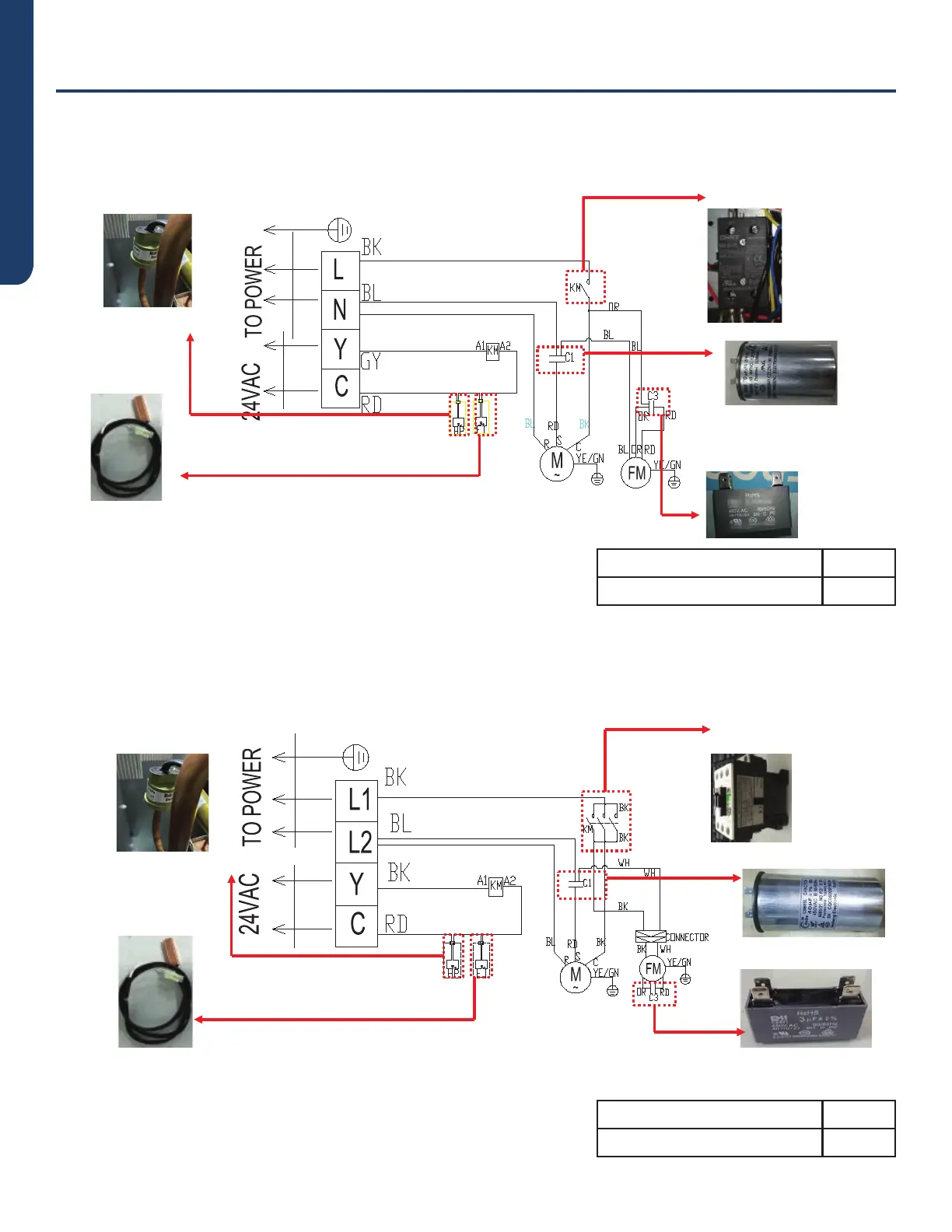

Wiring Diagrams
UUC112WC*
UUC118WC*
Fan Capacitor (C3) 8
µF
Compressor Capacitor (C1) 70µF
Fan Capacitor (C3) 3
µF
Compressor Capacitor (C1) 40µF
FT(Discharge Temp. Switch)
Contactor
High Pressure Switch
Compressor Capacitor
Fan Capacitor
FT(Discharge Temp. Switch)
Contactor
High Pressure Switch
Compressor Capacitor
Fan Capacitor
